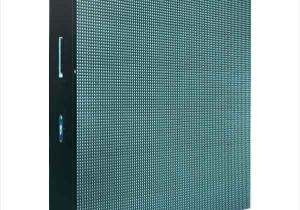

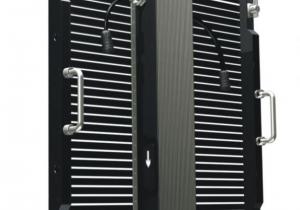

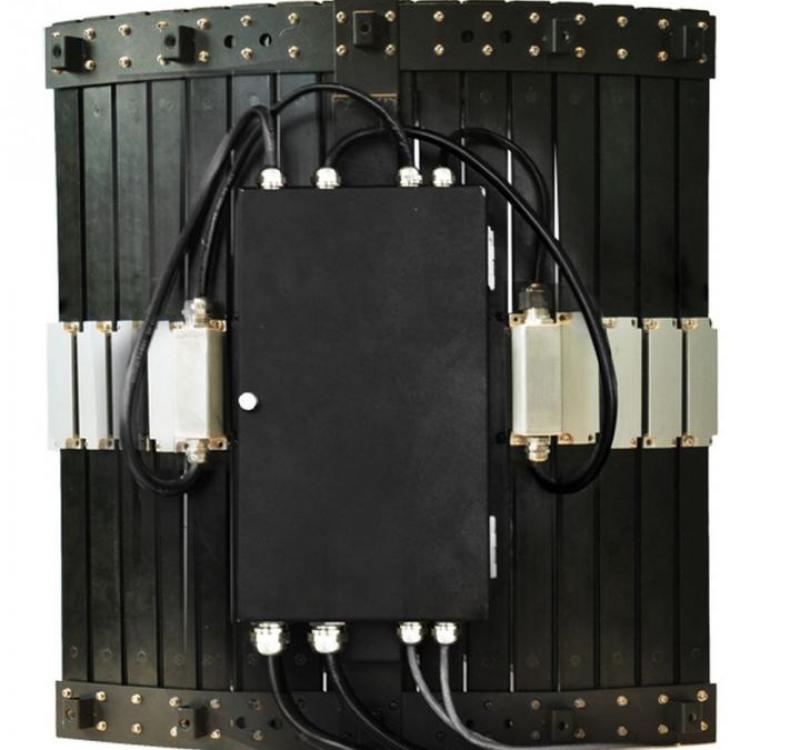

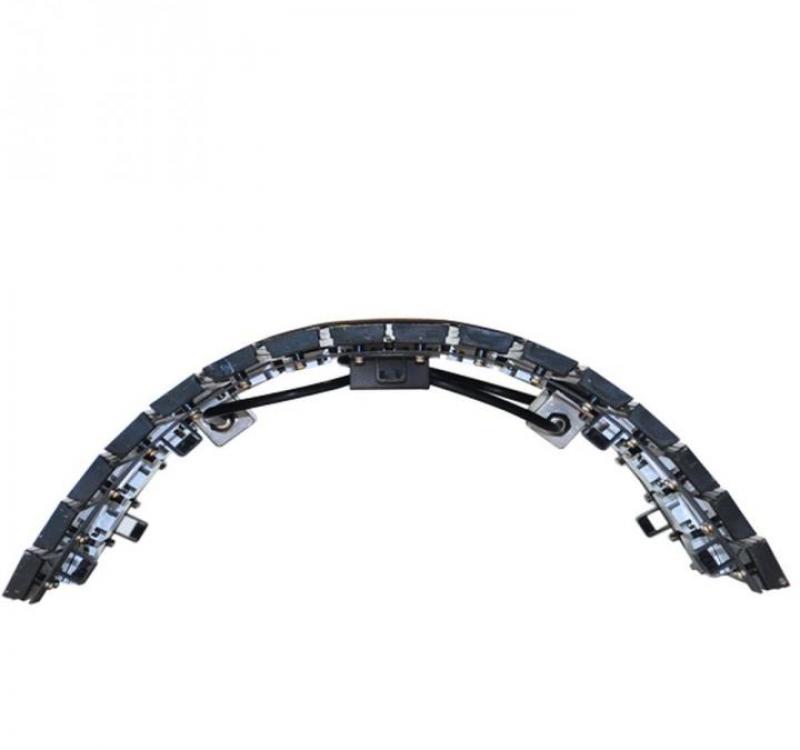

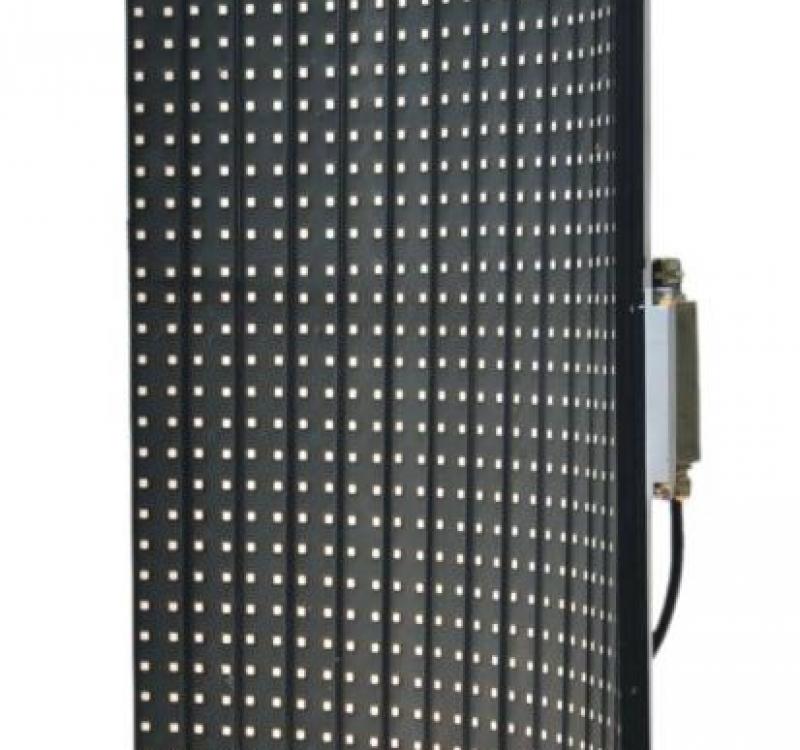

  • Product Name: Flexible screen 15
  • Product No.: skylight series flexibleP15mm

Flexible screen 15 is one uniquely designed for dance rental and booth rental . Adopting the synchronous control system, compatible with DVI、VGA、HDMI、S-video、composite video、YUV and other input signal, play video, text, image and program in real-time, synchronous, clear way to spread the information , display 2D, 3D animation, video, TV, VCD shows and live.As one new display, light, thin, fast installation is the most important characteristic.High wear-resistant glass mask, which make its on the ground can be trampled directly and tguarantee the screen body are not damaged. suitable for large stage, bars, shopping malls and other public places.

Main features of Flexible screen 15 are as below:

1.Adopting the SMD three integrated technology, larger viewing angle, and better surface smoothness.
2.Through the screen colors and cool synchronous regulation, the screen body present exquisite and vivid color performance.
3.Entire screen plane error 0.2MM, can effectively eliminate mosaic phenomenon.
4.High contrast, high refresh rate, LED display in the image without any delay, streaking phenomena.
5.Compatible with multiple signal source input, such as AV, S-video, DVI, VGA, YPbPr, HDMI, SDI, DP etc.6.High wear-resistant glass mask, which make its on the ground can be trampled directly and to guarantee the screen body are not damaged.
7.Light and ultra thin designed, cabinet total weight is only 6kg.

Technical Specification Requirements

Type

Technical requirements

Best view distance(m)

≥45m

Pixel pitch (m)

15mm

Pixel resolution(Dots/㎡)

4445 Dots/㎡

Pixel color composition

SMD5050 3-in-1

Cabinet size

480*480*88mm

Cabinet weight

6KG

Scan method(S)

Static scan

Brightness(cd/㎡)

≥4000cd/㎡ adjustable by software

Refresh frequency (Hz)

≥600Hz adjustable by software

MTBF(H)

>10000H

Max. power consumption(W/㎡)

1300W/ ㎡

Ave. Power consumption(W/㎡)

500W/ ㎡

View angle

120 °horizontally, 120°vertically,

Grey level/Color

16.7M colors(Synchronized)

Color temperature

R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement.

IP level

IP54

Defects rate

<1/10000Dots

Life span(H)

>100000H

Operation voltage

AC220V±10%/AC110V±10%(Power can’t be converted directly)

Operating temperature

-10℃ ~ +50℃

Operating humidity

10%RH~90%RH

Storage temperature

-20℃ ~ +70℃

System Operating Platform

WIN 98/ 2000/ XP

PC display mode

1280*1024

Control PC

With DVI Graphic card ( brand PC recommended)

Video signal

RF/S-Video/RGB/RGBHV/YUV/YC/etc

Effective control distance without repeater

Unshielded Twisted-pair LAN cable transmission within 100m

Multi-mode optical fiber≦500m,mono-mode optical fiber≦20km.
