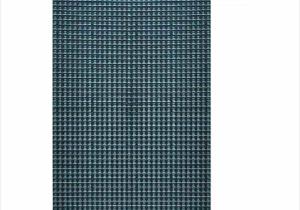

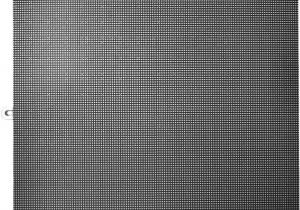

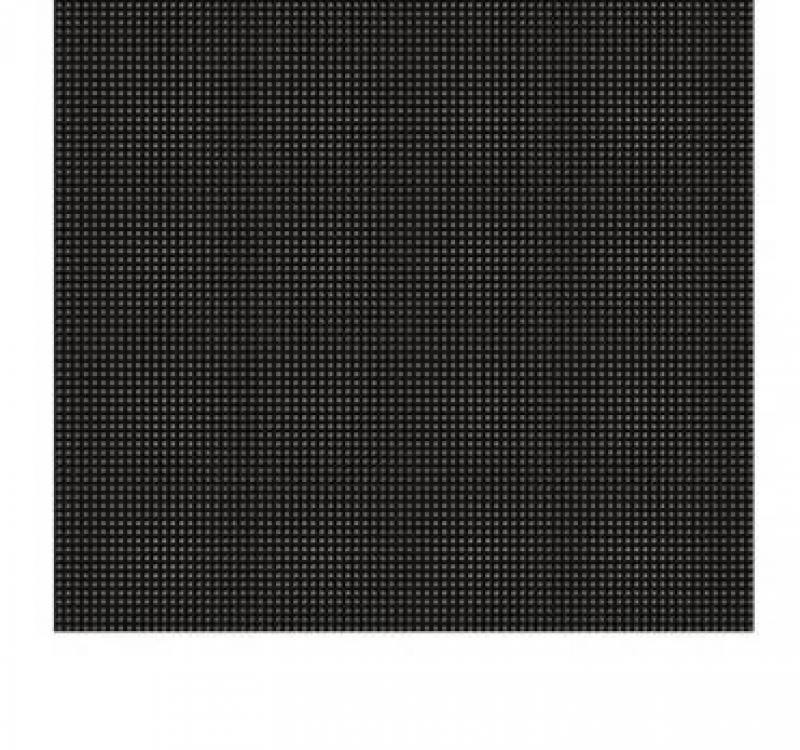

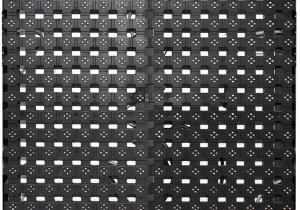

Size of module                              192mm x 96mm

Pixel density                                  27777dot / m²

Brightness                                      2000 CD / m²

LED Encapsulation                          SMD

Horizontal view angle                      > 140°

Vertical view angle                          > 120°

Life                                                   100000 hours

Average power                                300 W / m²

Weight / Module                              21 kg

Display colors                                  4.4 trillion

Refresh rate                                     3000Hz / S

Driving mode                                   1 / 4  scan

Working temperature                     -20°----  +45°C

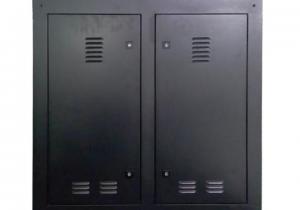

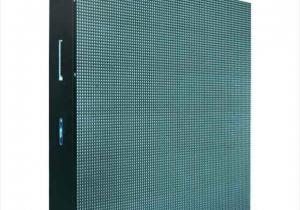

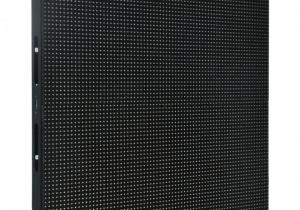

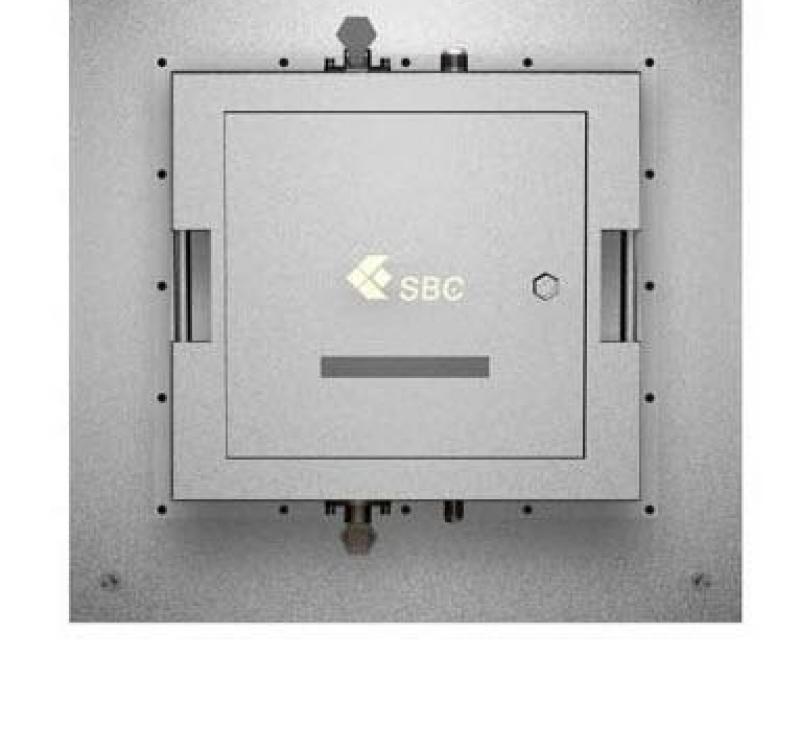

Size of cabinets                               976mm x 976mm

Input signal                                      Data DVI up to UXGA, SDI, HD-SDI, S-video, composite, YUV

Noise rate                                        <0.0001

Quality certification                         ETL, CE, TUV, FCC class A

Referencia

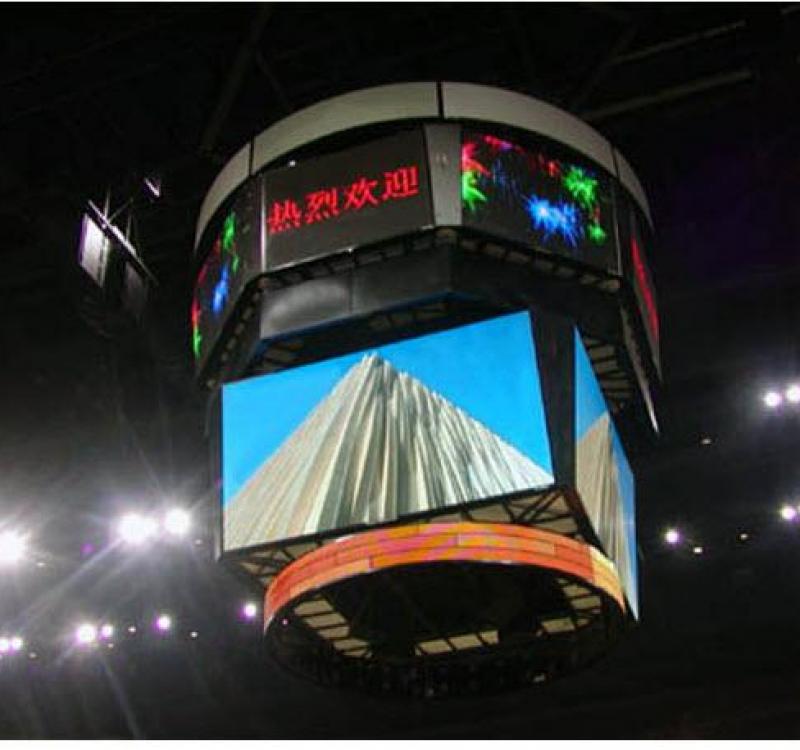

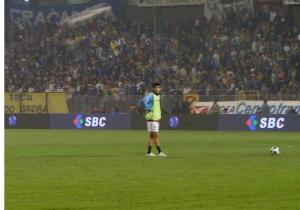

Jinan, Shandong Stadium LED board screen project


Project Location: Jinan, Shandong Stadium
Product Specifications: CD21A
Item Dimensions: Length 3.904m * height 2.44m *4 pcs = 38.10 sqm
Screen Quantity: 4 pcs
Completion Time: March 10th, 2009
