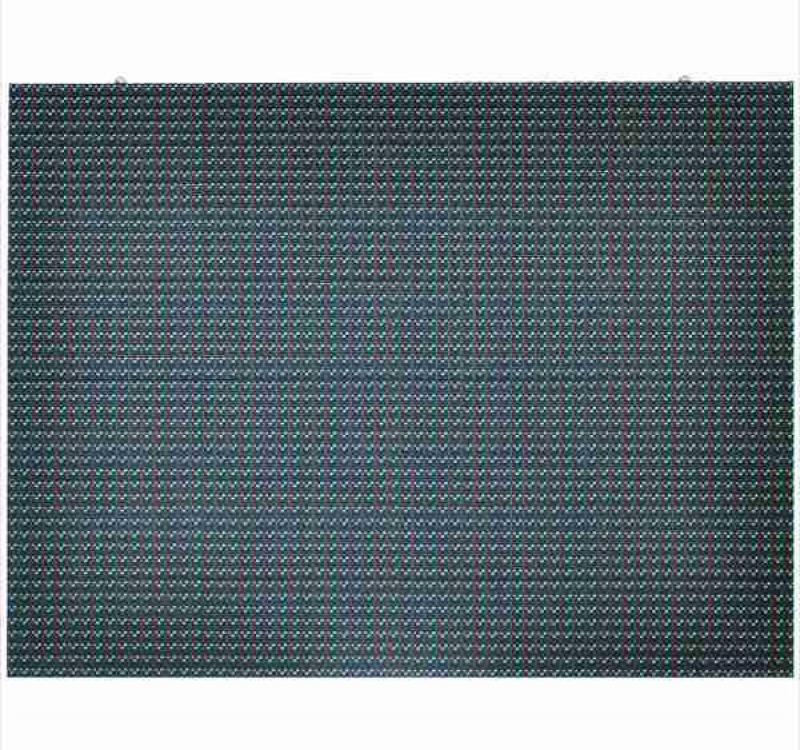

Name : King Kong(simple) 10 Led Display
Best view distance : ≥30m
Model : SBC-J-G-P10
Mark : SBC
Origin : shenzhen
Lead Time : 25days
Warranty : one years
Certificates : CE,RoHS,Fcc
Browse :

Kingkong (simple)10 LED display is special made for application of giant outdoor advertising screen. Use synchronous system which can accept signals DVI, VGA,HDMI,S-VIDEO,Complex, YUV etc. It can display programs of video, image, text. Displaying every information by real time, synchronous,clear message and can show two or three dimension animation, video, TV, VCD program and live broadcast.
As a new advertising screen, the screen will be designed stably, sturdy, durable, easy for outdoor big size advertising usage.

Features of Kingkong (easy cabinet) 10:
1.Use DIP technology to make the LED display have good waterproof and anti-humidity when used.
2.Stable cabinet, stronger without distortion, anti-rust.
3.Synchronously adjust the brightness and color to make the true and exquisite image.
4.High contrast, high refresh rate make the image without any delay, trailing smear.
5.Compatible to many signal sources such as AV, S-Video, DVI, VGA, YPbPr, HDMI,SDI,DP etc.
6.Special wooden box package production protect the whole screen system.
7.Make you feel great contrast and wonderful details with thick pure black



King Kong(simple) 10 Led Display Technical Specification

Product Name£ºLED Display

Product type£ºKing Kong (simple) 10

Manufacturer£ºShenzhen SBC Photoelectricity co.,ltd.

Technical Specification Requirements

Type

Technical requirements

Best view distance(m)

≥30m

Pixel pitch (m)

10mm

Pixel resolution(Dots/m2)

10000dots/m2

Pixel color composition

1R1G1B (DIP346)

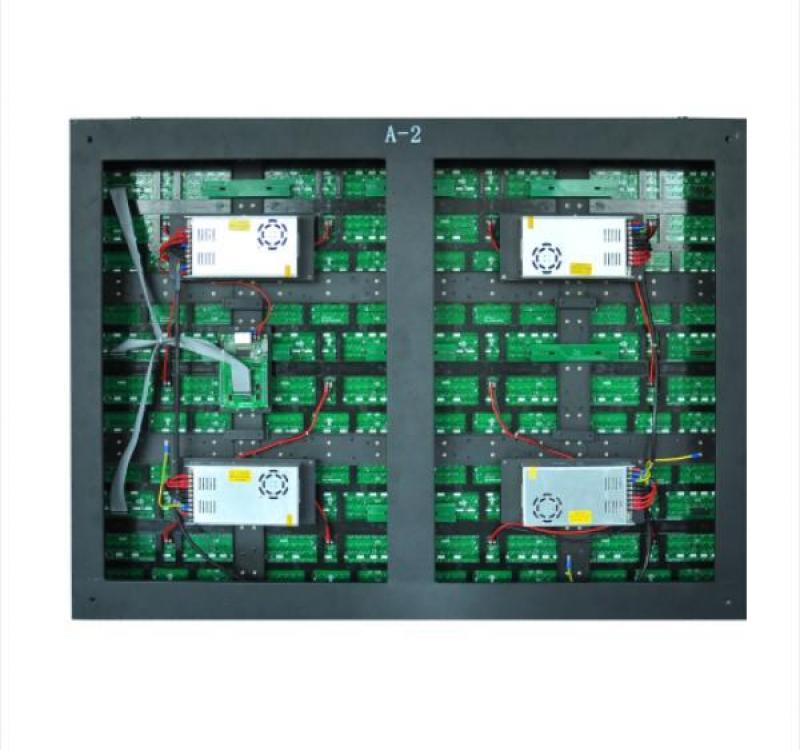

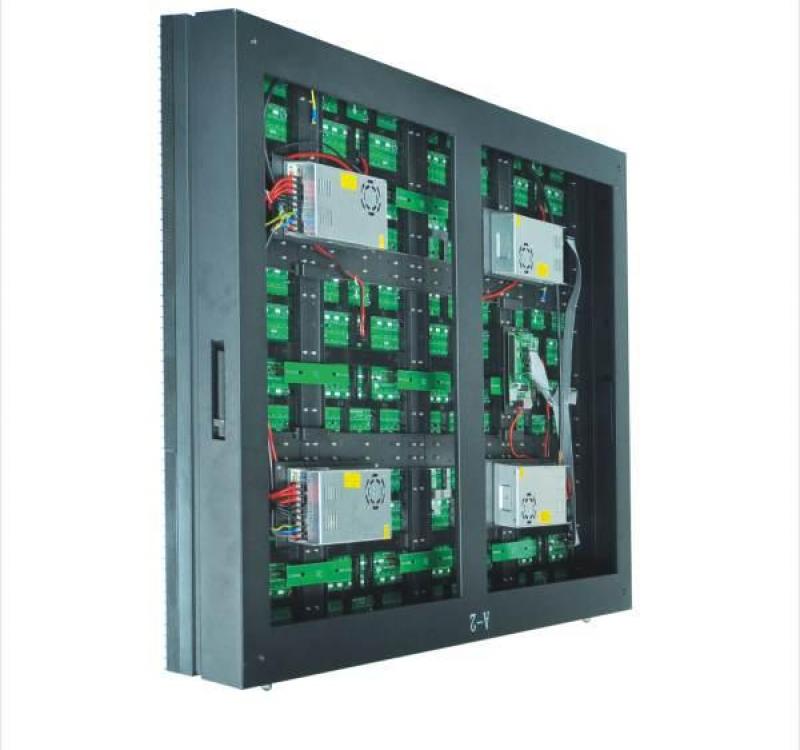

Cabinet size

1280*960*120mm

Cabinet weight

56KG

Scan method(s)

1/4S

Brightness(cd/m2 )

≥5000cd/m2 adjustable by software

Refresh frequency (Hz)

≥1000Hz adjustable by software

MTBF(H)

>10000H

Max. power consumption(W/m2)

500W/ m2

Ave. Power consumption(W/m2)

200W/ m2

View angle

120 °horizontally, 120°vertically

Grey level/Color

16.7M colors(Synchronized)

Color temperature

R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement.

IP level

IP65

Defects rate

<1/10000Dots

Life span(H)

>100000H

Operation voltage

AC220V±10%/AC110V±10%(Power can¡¯t be converted directly)

Operating temperature

-20℃~+60℃

Operating humidity

10%RH~90%RH

Storage temperature

-10℃~+50℃

System Operating Platform

WIN 98/ 2000/ XP

Control PC

With DVI Graphic card ( brand PC recommended)

Video signal

RF/S-Video/RGB/RGBHV/YUV/YC/etc

Effective control distance without repeater

Unshielded Twisted-pair LAN cable transmission within 100m



Multi-mode optical fiber¨Q500m,mono-mode optical fiber¨Q20km.
