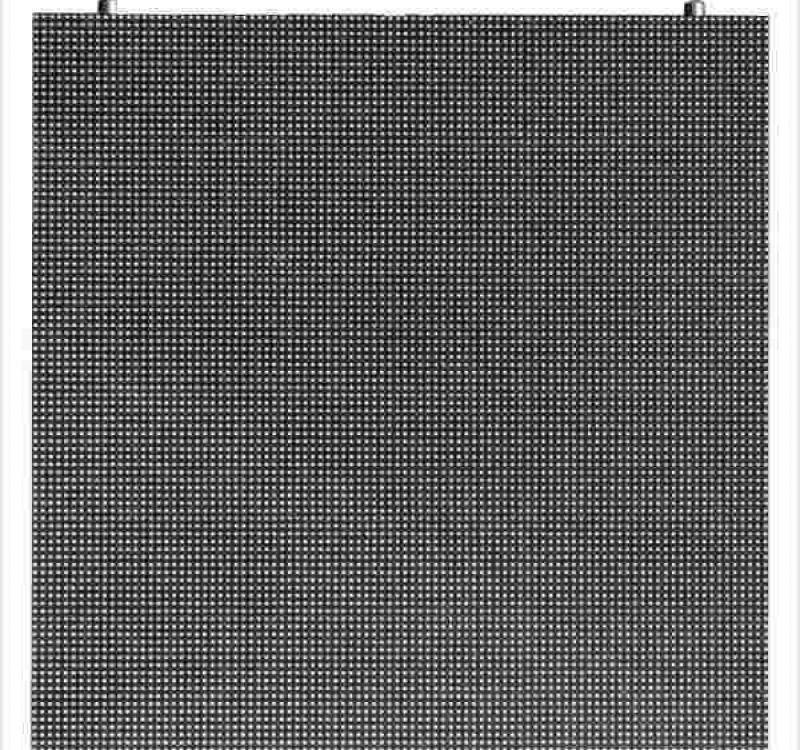

Name : King Kong 6 Led Display Technical Specification
Best view distance : ≥18m
Model : SBC-J-G-P6
Mark : SBC
Origin : shenzhen
Lead Time : 25 Days
Warranty : one years
Certificates : CE,RoHS,Fcc
Browse :
King Kong 6 is designed for indoor concert, roving exhibitions, temporary advertising, stage rental and booth leasing spaces application LED display and other R & D activities and R & D LED display. Adopt synchronization control system processing, acceptable DVI, VGA, HDMI, S-video, composite, YUV input signal, free to play video, graphics and images by real-time, synchronous, clear information dissemination player kinds of information, and can display two-dimensional, two-dimensional animation, video, TV, VCD programs and live. King Kong 6 Led Display Technical Specification Product name: LED Display Type: King Kong 6 Manufacturer: Shenzhen SBC Photoelectricity Co., Ltd Technical Specification Requirements Type Parameters Best view distance(m) ≥18m Pixel pitch (m) 6mm Pixel resolution(Dots/m2) 27777 Dots/m2 Pixel color composition SMD3528 Full color 3-in-1 Cabinet size 576*576*130mm Cabinet weight 30kg Scan method(s) 1/8S Brightness(cd/m2 ) ≥1500cd/©O Software Adjustable Refresh frequency (Hz) ≥1000Hz Software Adjustable MTBF(H) £¾10000H Max. power consumption(W/m2) 1000W/m2 Ave. Power consumption(W/m2) 400W/m2 View angle Horizontal 120°, Vertical 120° Grey level/Color 16.7M colors(Synchronized) Color temperature R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement. IP level IP43 Defects rate <1/10000 Dots Life span(H) >100000H Operation voltage AC220V±10%/AC110V±10%(Power can¡¯t be converted directly) Operating temperature -10℃ ~ +50℃ Operating humidity 10%RH ~ 90%RH Storage temperature -20℃ ~ +70℃ System Operating Platform WIN98/2000/XP PC display mode 1280*1024 Control PC With DVI Graphic card ( brand PC recommended) Video signal RF/S-Video/RGB/RGBHV/YUV/YC/etc Effective control distance without repeater Unshielded Twisted-pair LAN cable transmission within 100m Multi-mode optical fiber¨Q500m,mono-mode optical fiber¨Q20km.

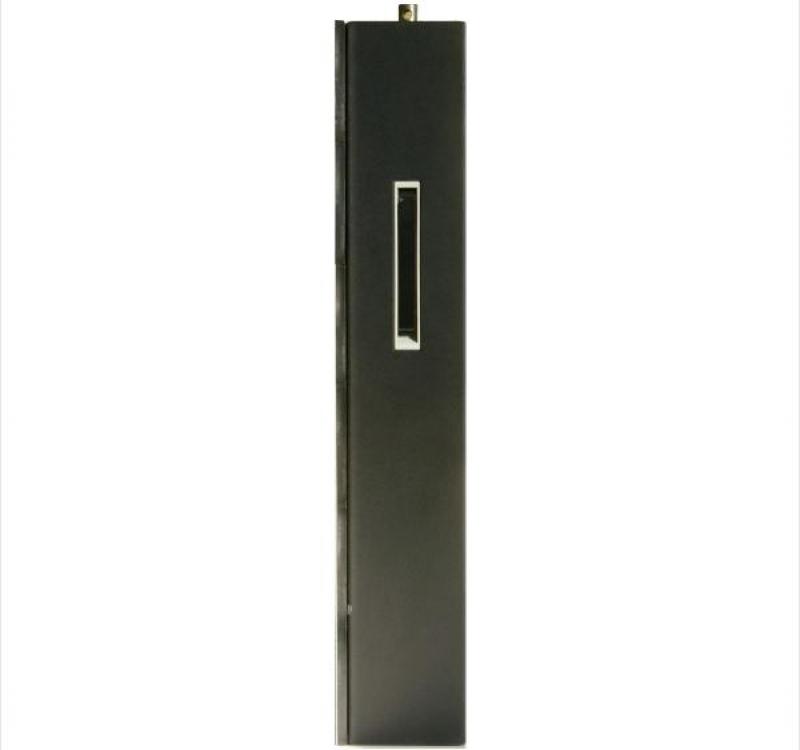

The new display with light, thin, quick installation of its important characteristics. Bao-steel cold rolled sheet of the international aluminum or 1.2mm thick, durable without deformation. The two side lock design ensure flatness enclosures, ultra-thin, ultra-light box structure greatly reduces the cost of transportation, convenient customer transport, assembly, disassembly engineering, installation and transportation costs savings.

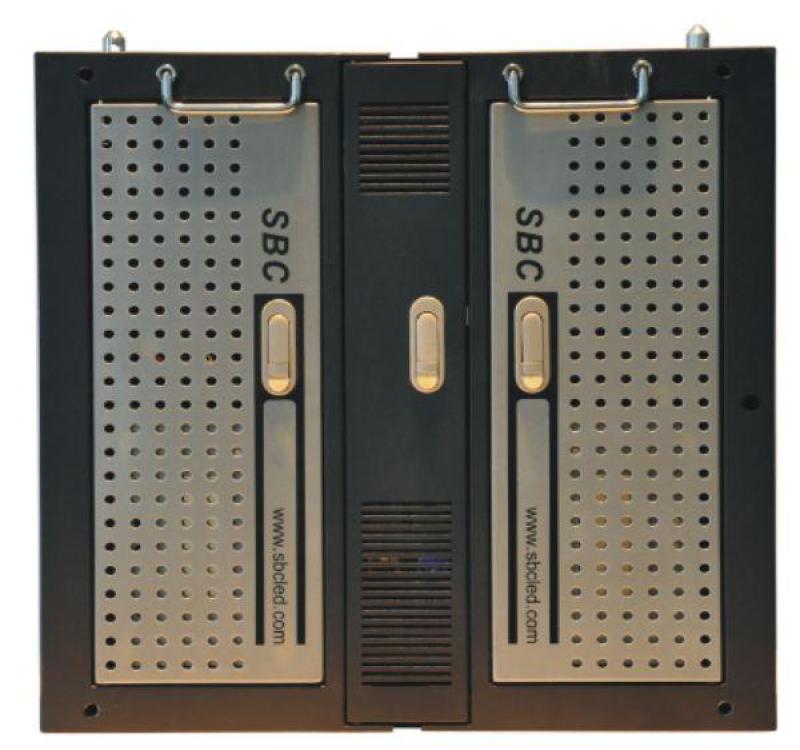

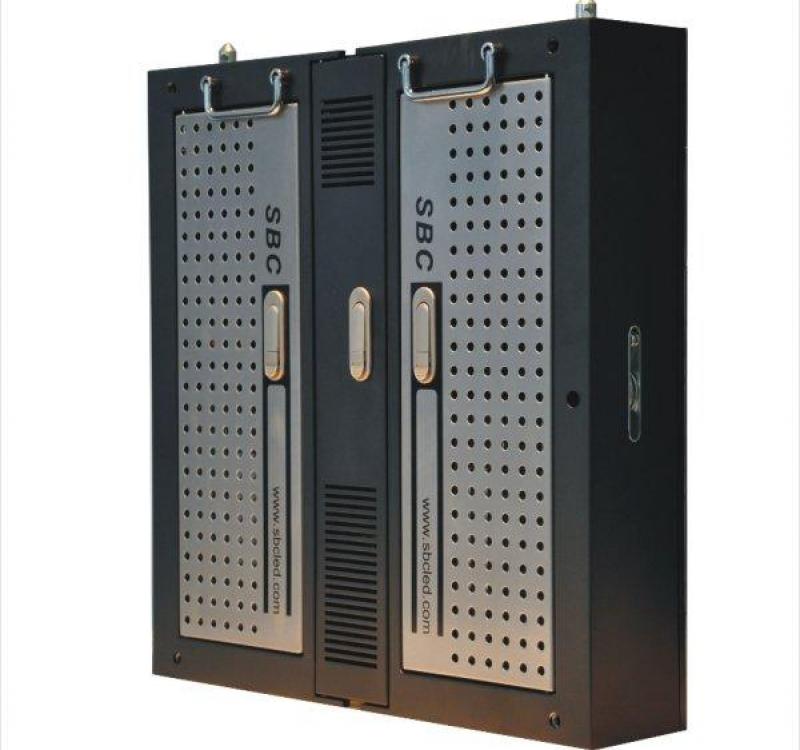

King Kong 6 cabinet main features:

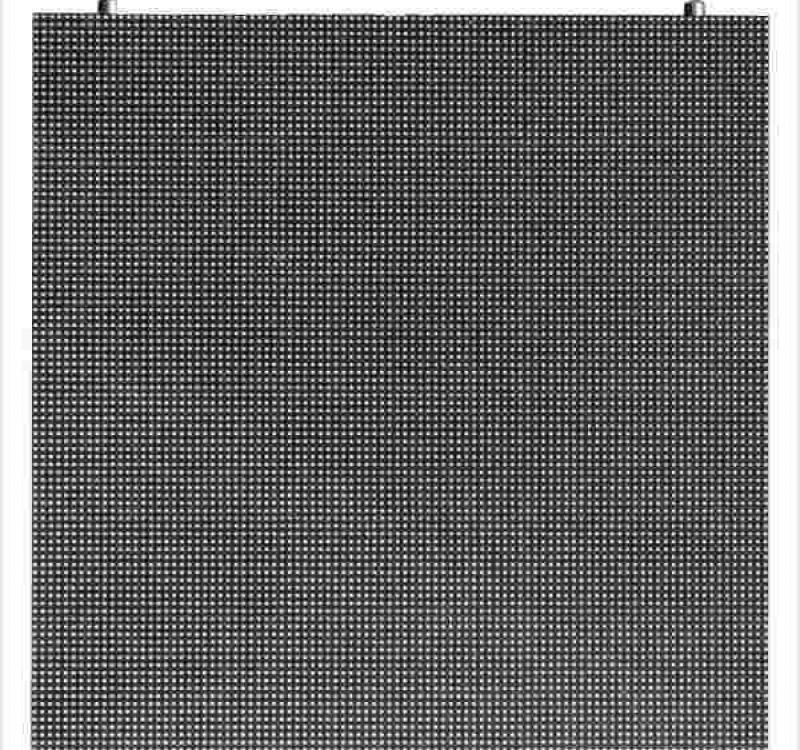

1. SMD 3 in 1 technology, the LED display to use with ultra-wide viewing angle and better surface flatness
2. Synchronous adjustment of the color and brightness of the screen body, so that the screen body presents a delicate and vivid color performance
3. High contrast, high refresh rate, making the LED display when the image is rendered without any delay, smear phenomenon
4. Compatible with a variety of source inputs, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.
5. Flight case professional packaging protection, control equipment to lease to play a good protection.
6. Light, ultra-thin Screen cabinet total weight only 30KG
