Pixel pitch                                            16mm

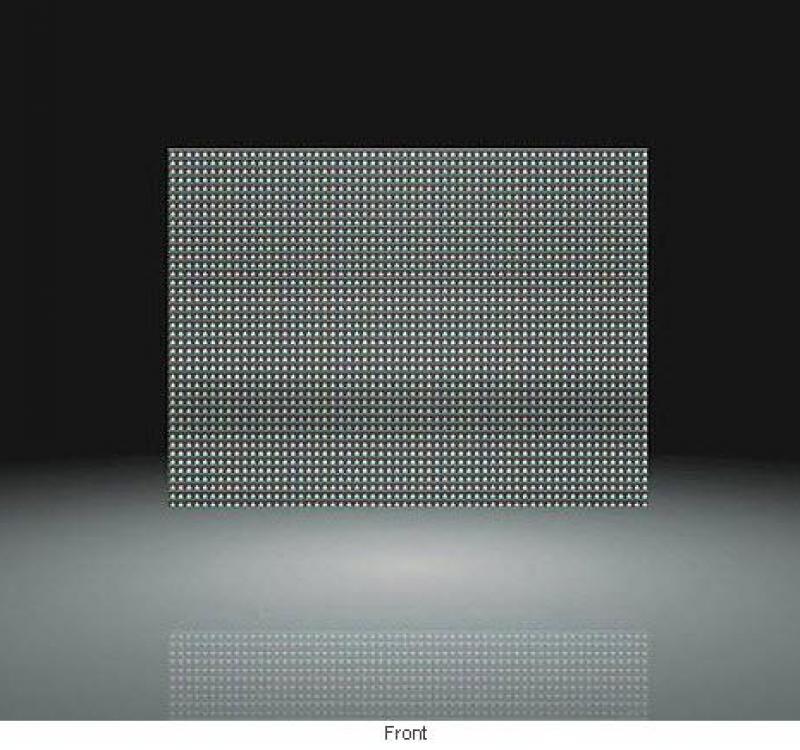

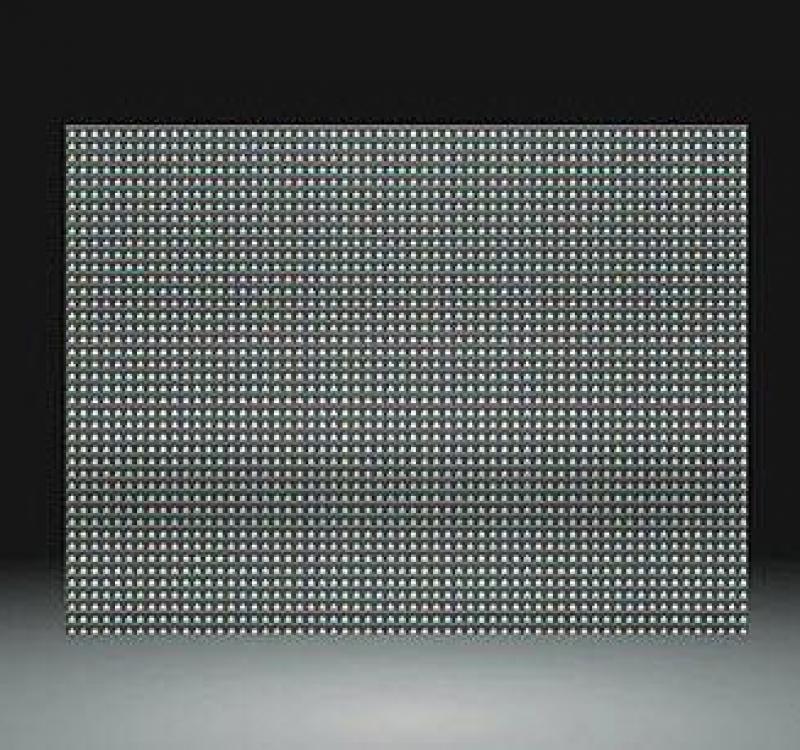

Size of module                                     256mm x 128mm

Pixel density                                        3906 dot / m²

Brightness                                            6800CD / m²

LED Encapsulation                                DIP

Horizontal view angle                          > 140°

Vertical view angle                              > 120°

Life                                                       100000 hours

Average power                                     400 W / m²

Weight / Module                                   35 kg

Display colors                                       4.4 trillion color

Refresh rate                                          3000Hz / S

Driving mode                                        Constant current static

Working temperature                           -20°----  +60°C

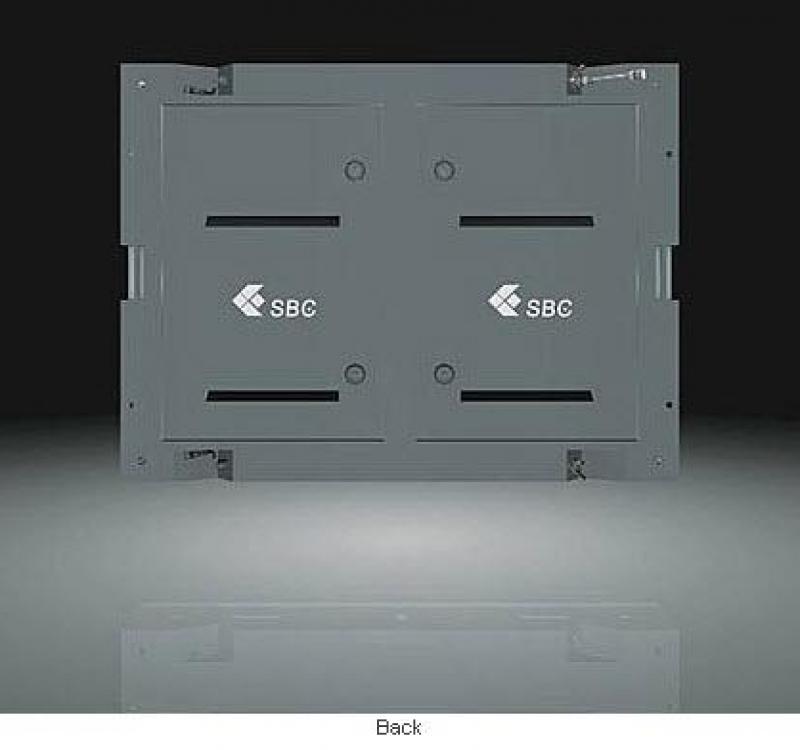

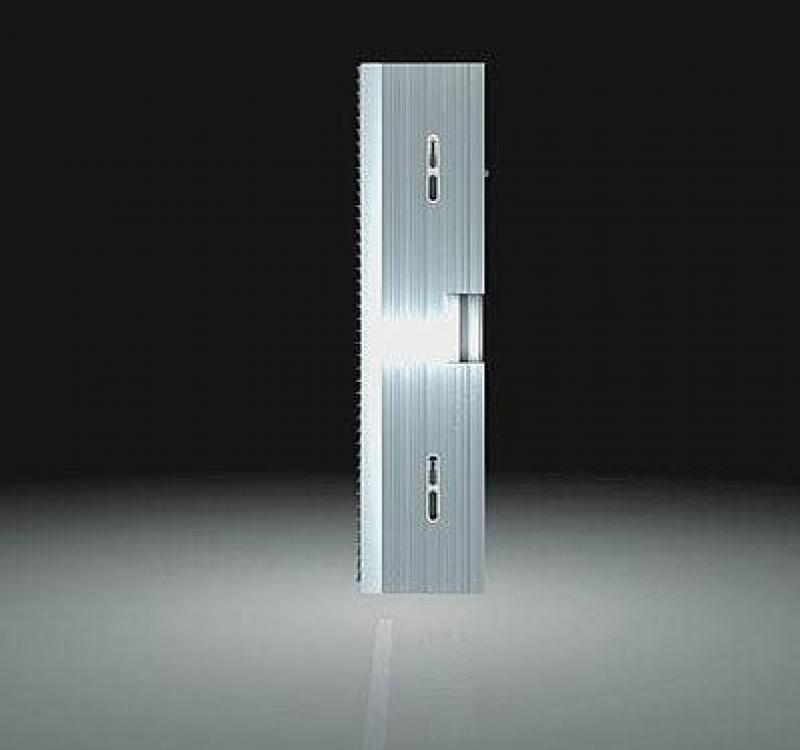

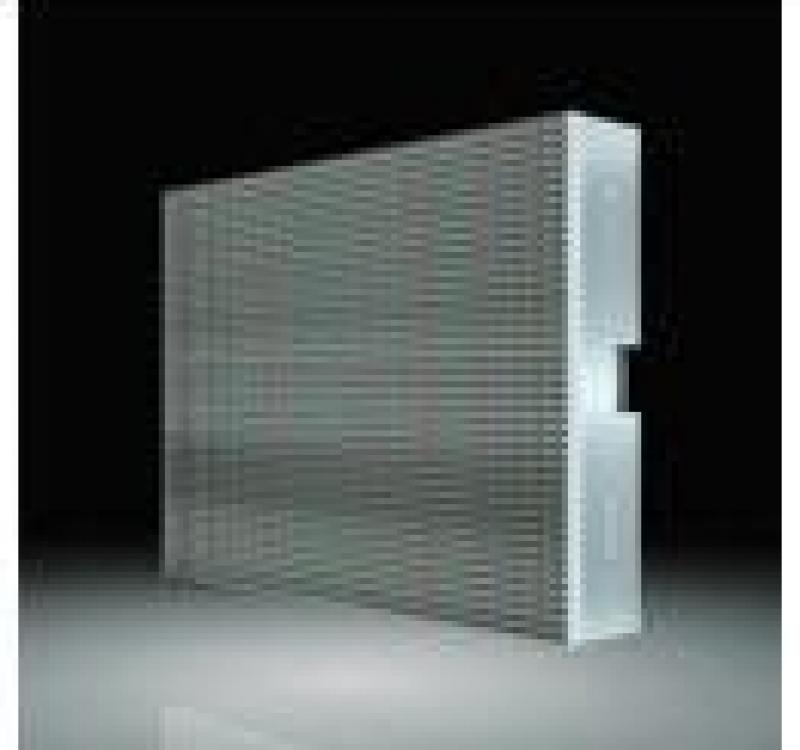

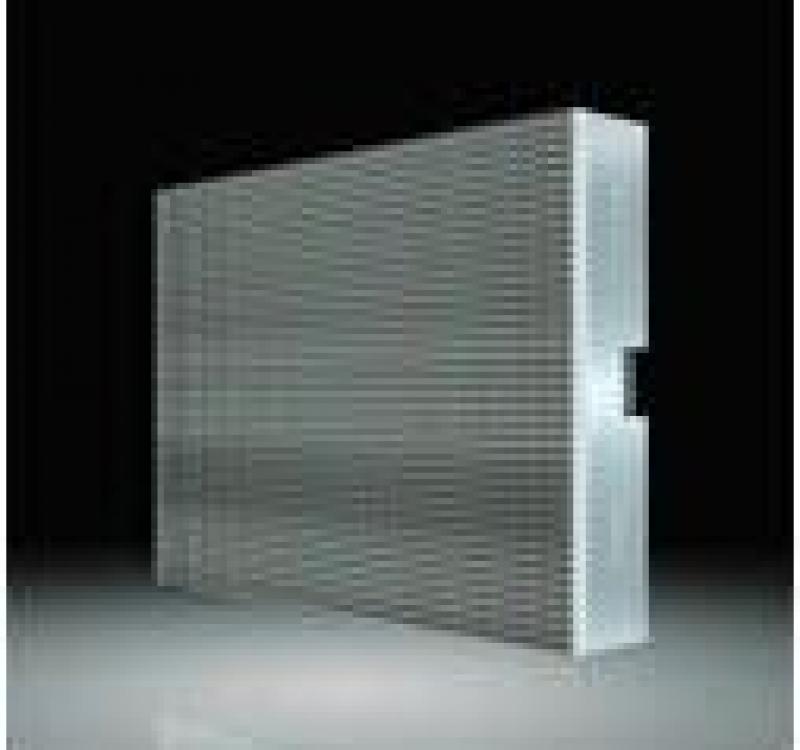

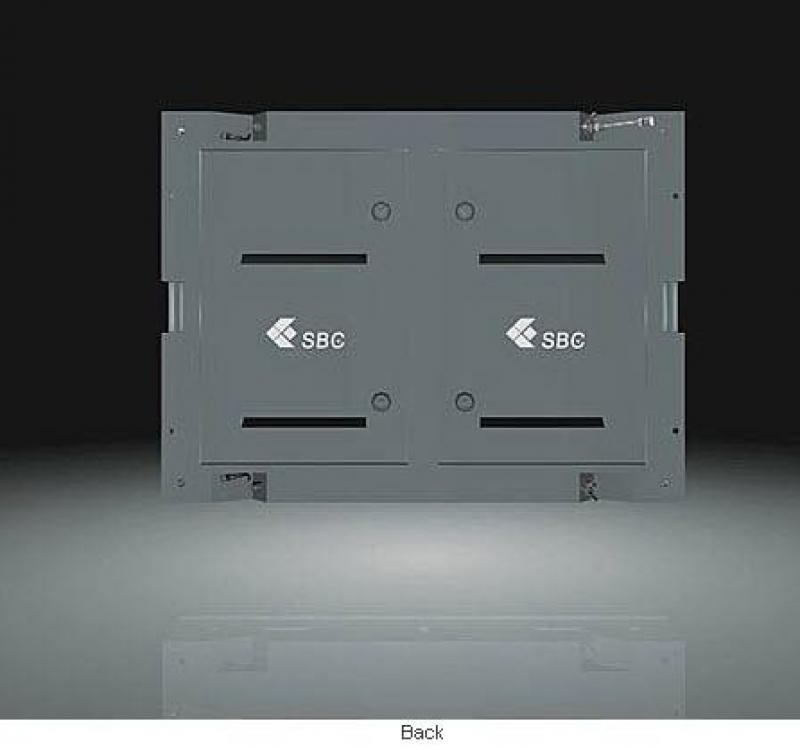

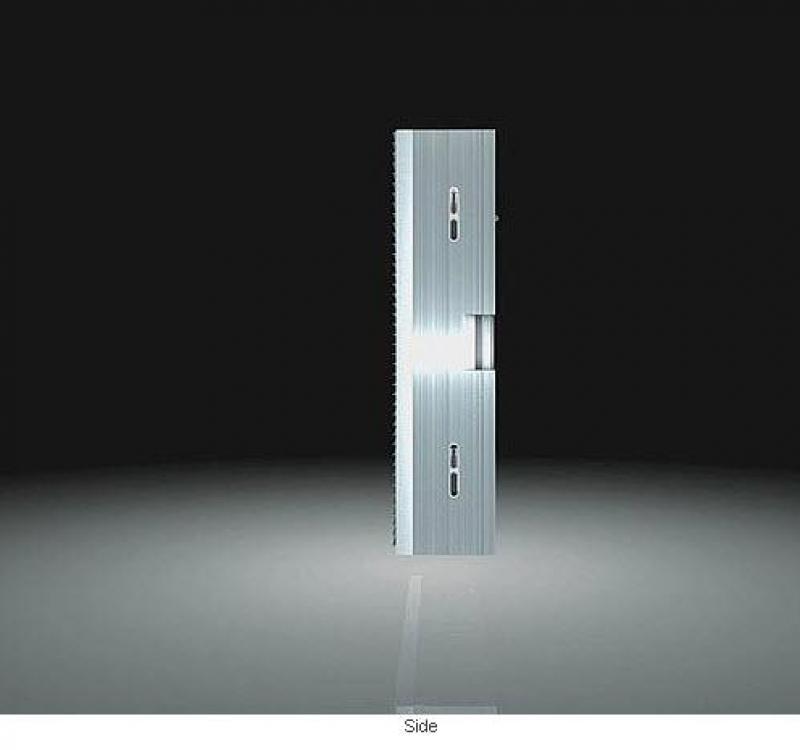

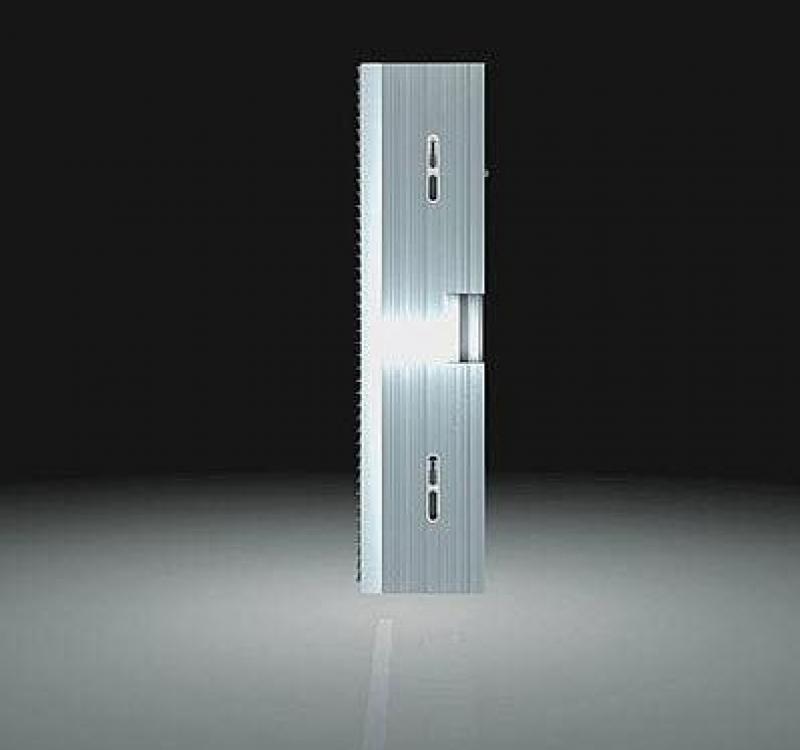

Size of cabinets                                    1024mm x 768mm

Input signal                                          Data DVI up to UXGA, SDI, HD-SDI, S-video, composite, YUV

Failed LED rate                                     <0.0001

Quality certification                             ETL, CE, TUV, FCC class A
