Name : Három oldalas led fal p 31.25
Mark : SBC
Origin : Shenzhen
Certificate : CE,RoHS,Fcc

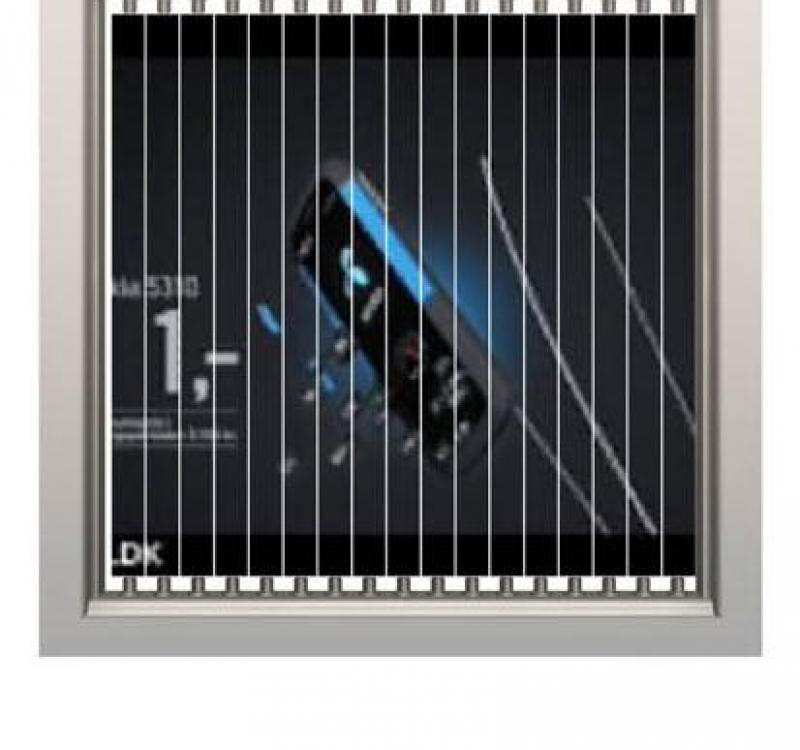

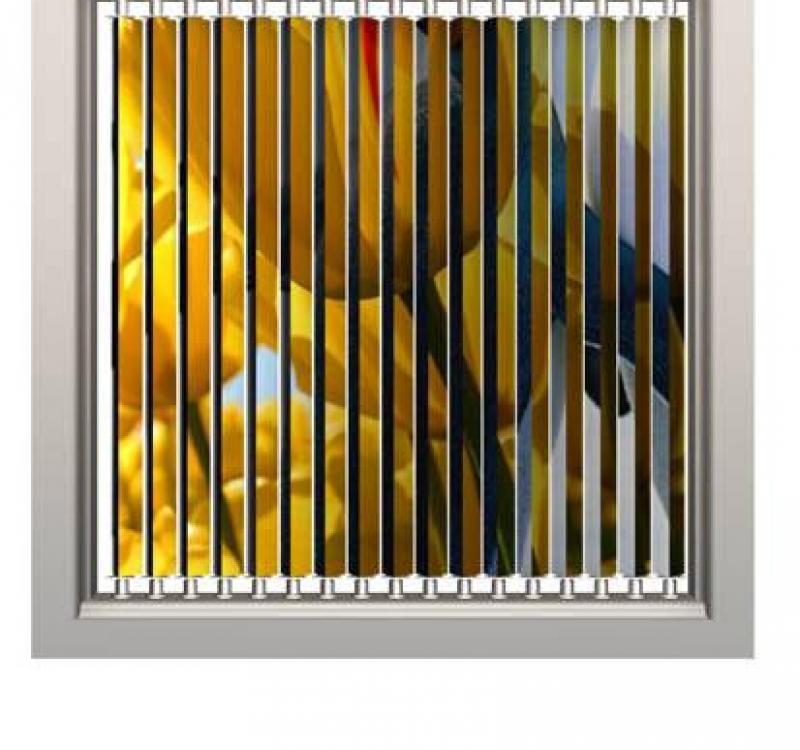

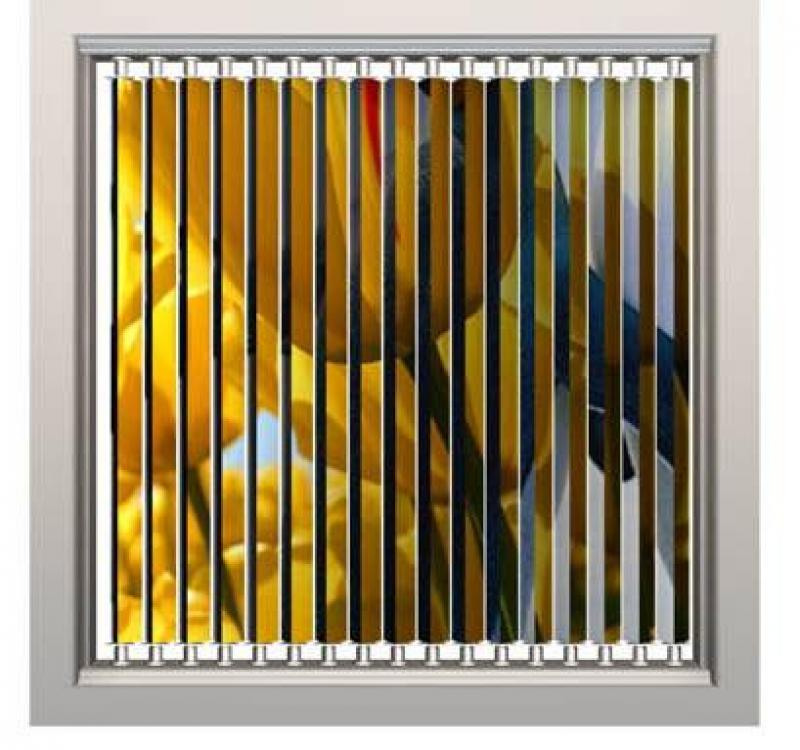

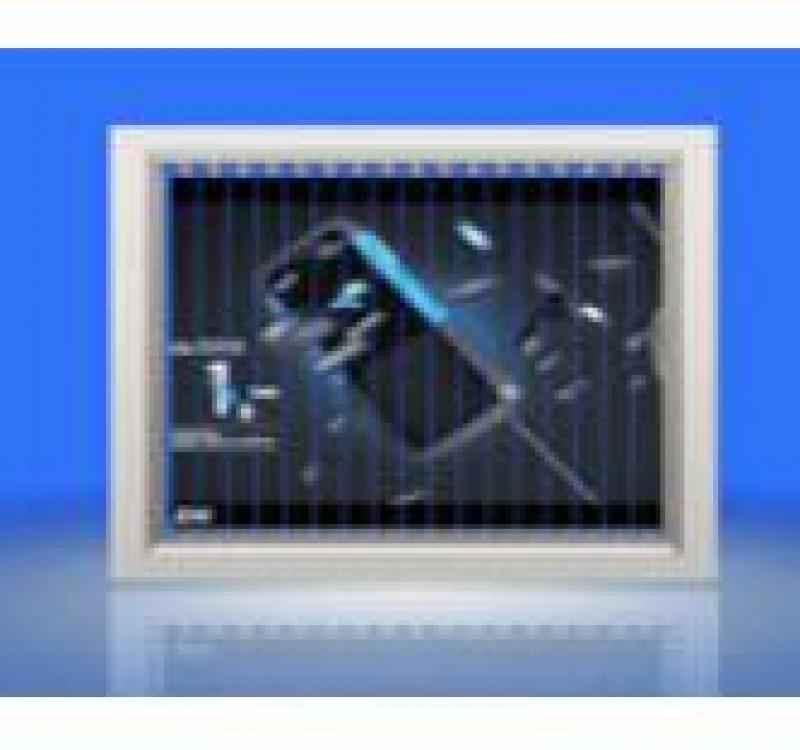

Kiállító standok legsikeresebb led fala. Egyszere 3 különböző kép jeleníthető meg, és 3 irányból is látható. Paraméterek: Size of module 250mm x 250mm Pixel density 1024dot / m² Brightness 4000 CD / m² LED Encapsulation plug-in board Horizontal view angle > 140° Vertical view angle > 120° Life 100000 hours Average power 300 W / m² Weight / Module 20 kg Display colors 4.4 trillion colors Refresh rate 3000 Hz / S Driving mode static Working temperature -20°---- +45°C Size of cabinets 1000mm x 1000mm Input signal Data DVI up to UXGA, SDI, HD-SDI, S-video, composite, YUV Failed LED rate <0.0001 Quality certification ETL, CE, TUV, FCC class A Referencia: További kültéri kijelzők
Pixel pitch 31.25mm

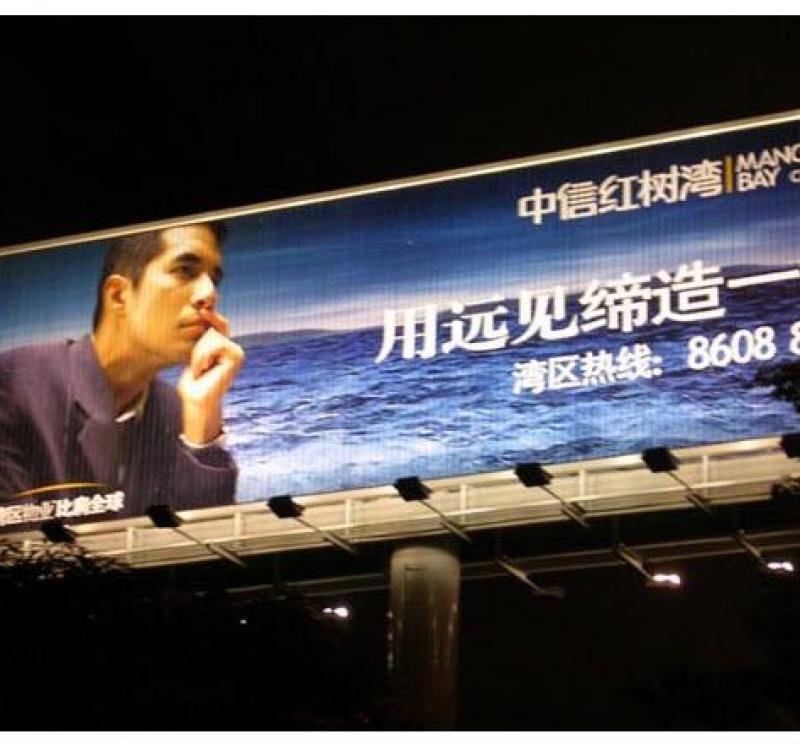

Project Location: Guangdong Shenzhen Mangrove Bay
Product Specifications: P31.25
Item Size: length 18m * hight 6m = 108 sqm
Screen Quantity: 1 pc
Completion Time: October 20, 2008
