  • Product Name: Kingkong (3535)10
  • Product No.: crystal series-kingkong(3535)10

King Kong(3535) 10 is a specially designed for applications such places as outdoor advertising LED display applications developed. Synchronization control system processing, acceptable DVI, VGA, HDMI, S-video, composite, YUV input signal, free to play video, graphics and images by real-time, synchronous, clear information dissemination player kinds of information, and can display 2D and 3D animation, video, TV, VCD programs and live.
    As a new type of advertising display screen body design makes stable, durable, easy to use, adapted to outdoor advertising applications places.

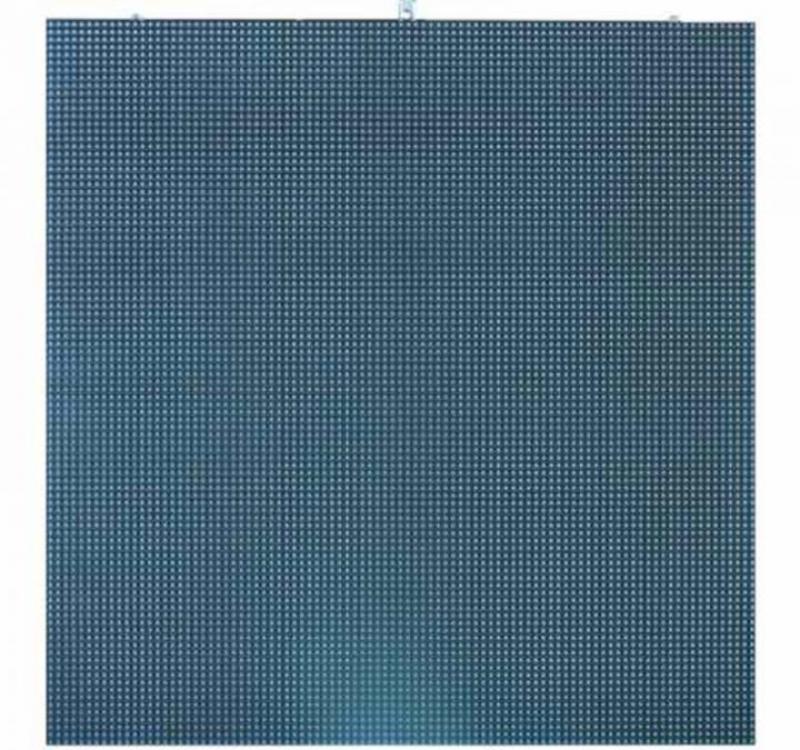

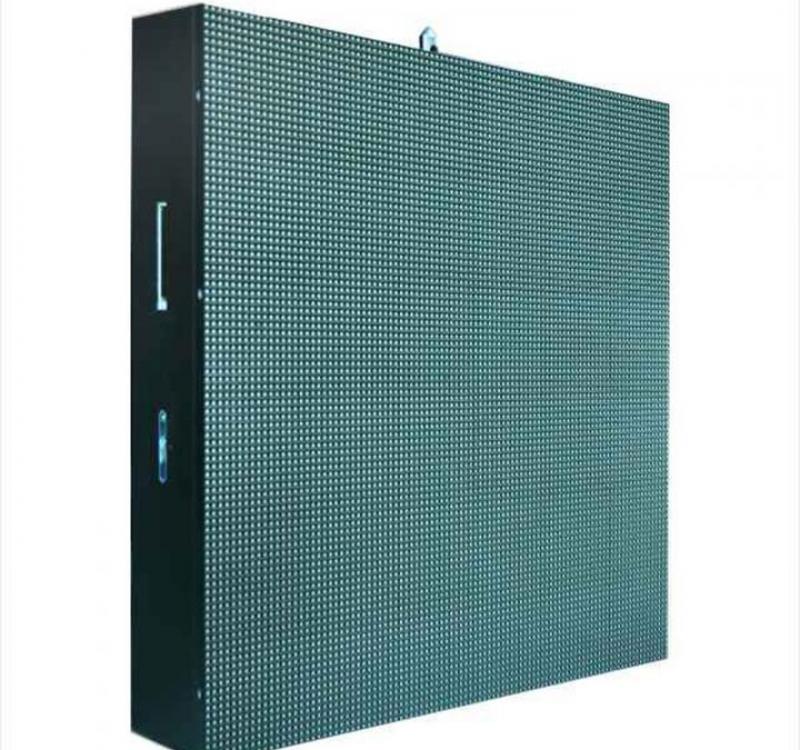

 King Kong(3535) 10 cabinet main features:

1.SMD 3 in 1 technology, the LED display to use with ultra-wide viewing angle and better surface flatness
2.More robust stable cabinet without deformation, corrosion-resistant.

3.Synchronous adjustment of the color and brightness of the screen body, so that the screen body presents a delicate and vivid color performance.

4.High contrast, high refresh rate, making the LED display when the image is rendered without any delay, smear phenomenon.

5.Compatible with a variety of source inputs, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.

6.Flight case professional packaging protection, control equipment to lease to play a good protection.

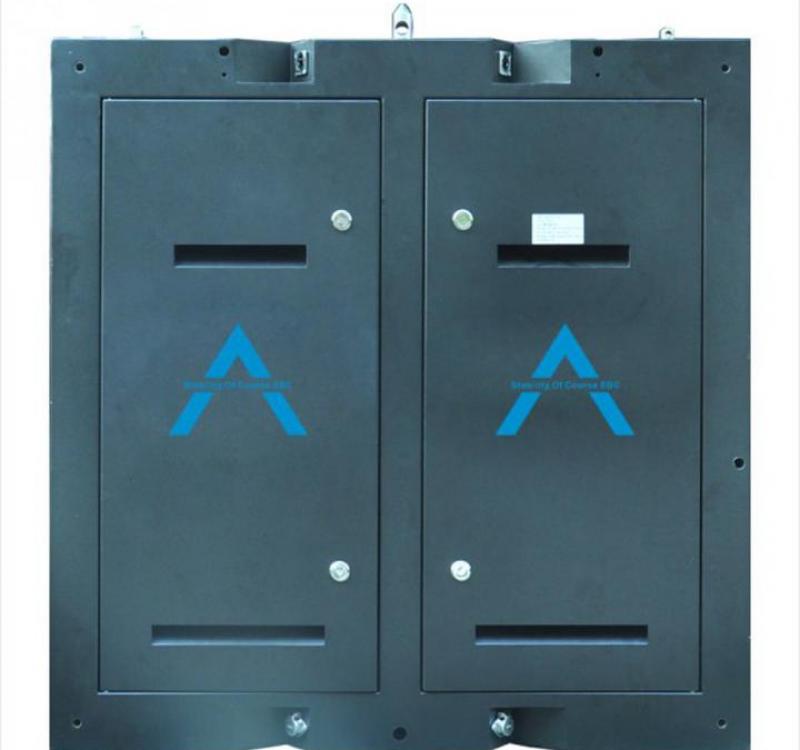

7.Light die-cast aluminum enclosure design, outdoor full waterproof.

8.Don’t worry about storm and thunder the real King of rental screen.

Technical Specification Requirements

Type

Parameters

Best view distance(m)

≥35m

Pixel pitch (m)

10mm

Pixel resolution(Dots/㎡)

8800 Dots/㎡

Pixel color composition

SMD3535 3-in-1

Cabinet size

512*512*70mm

Cabinet weight

8kg

Scan method(S)

1/4S

Brightness(cd/㎡)

≥3500cd/㎡ Software Adjustable

Refresh frequency (Hz)

≥800Hz Software Adjustable

MTBF(H)

>10000H

Max. power consumption(W/㎡)

550W/㎡

Ave. Power consumption(W/㎡)

220W/㎡

View angle

Horizontal 120°, Vertical 120°

Grey level/Color

16.7M colors(Synchronized)

Color temperature

R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement.

IP level

IP65

Defects rate

<1/10000 Dots

Life span(H)

>100000H

Operation voltage

AC220V±10%/AC110V±10% (No Power Supply Switch Directly)

Operating temperature

-10℃ ~ +50℃

Operating humidity

10%RH ~ 90%RH

Storage temperature

-20℃ ~ +70℃

System Operating Platform

WIN98/2000/XP

Control PC

With DVI Graphic card ( brand PC recommended)

Video signal

RF/S-Video/RGB/RGBHV/YUV/YC/etc

Effective control distance without repeater

Unshielded Twisted-pair LAN cable transmission within 100m

Multi-mode optical fiber≦500m,mono-mode optical fiber≦20km.
