Az SBC gyár töb éve piacvezető a sport stadionok számára gyártott ledfalakban. A lehető legnagyobb tapasztalattal rendelkezik, így a legjobb döntés az ön stadionja száméra.

Paraméterek:

 Pixel pitch                                           10mm

Size of module                                   160mm x 160mm

Pixel density                                      10000 dot / m²

Brightness                                          6500 CD / m²

LED Encapsulation                             DIP

Vieww angle                                      > 140°

Vertical view angle                            > 120°

Life                                                     100000 hours

Average power                                  300 W / m²

Weight / Module                                60 kg

Display colors                                    4.4 trillion

Refresh rate                                       3000Hz / S

Driving mode                                     constant current static

Working temperature                       -20°----  +45°C

Size of cabinets                                 960mm x 960mm

Input signal                                        Data DVI up to UXGA, SDI, HD-SDI, S-video, composite, YUV

Failed LED rate                                  <0.0001

Quality certification                           ETL, CE, TUV, FCC class A

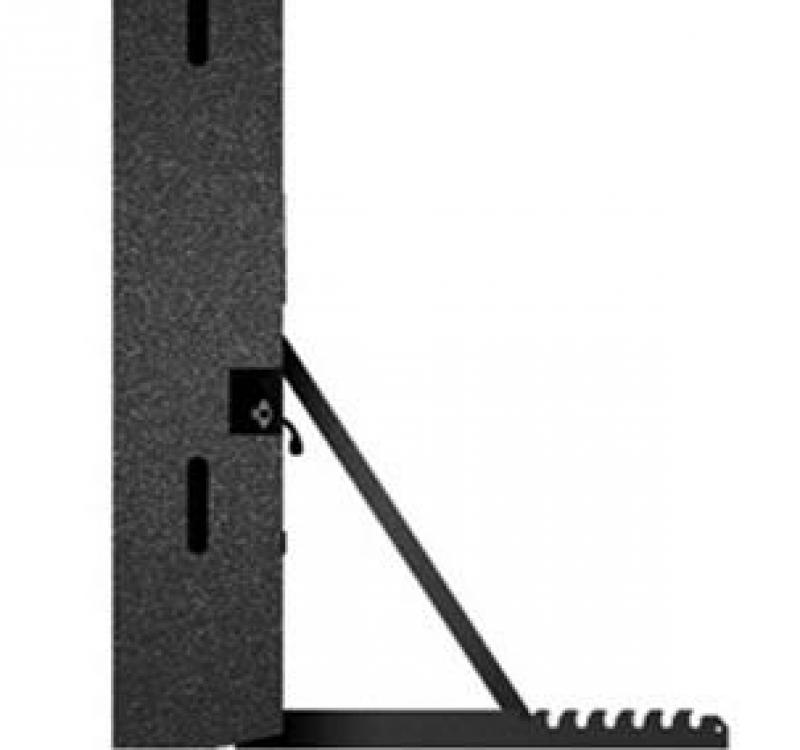

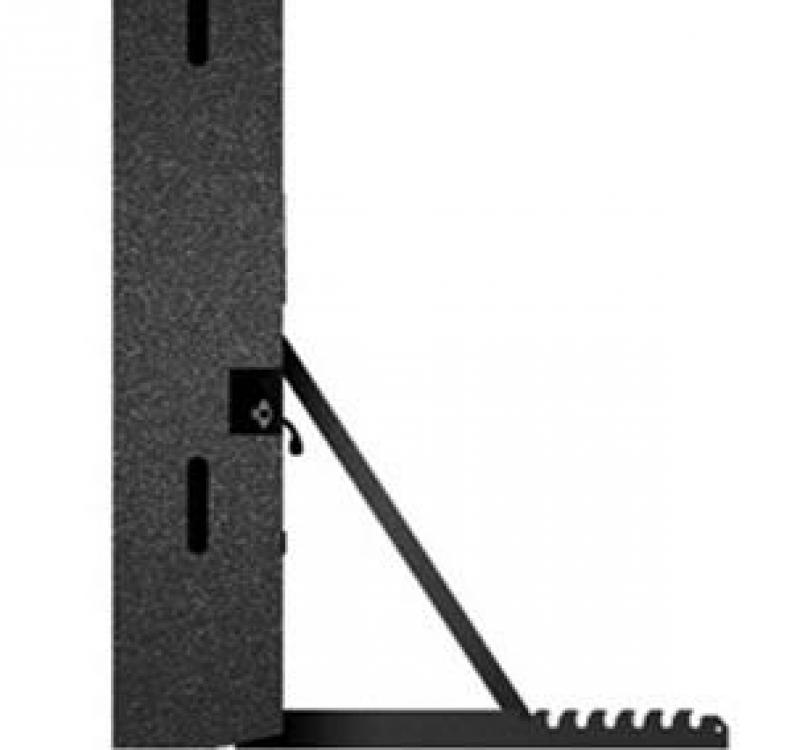

Installáció

Referencia:

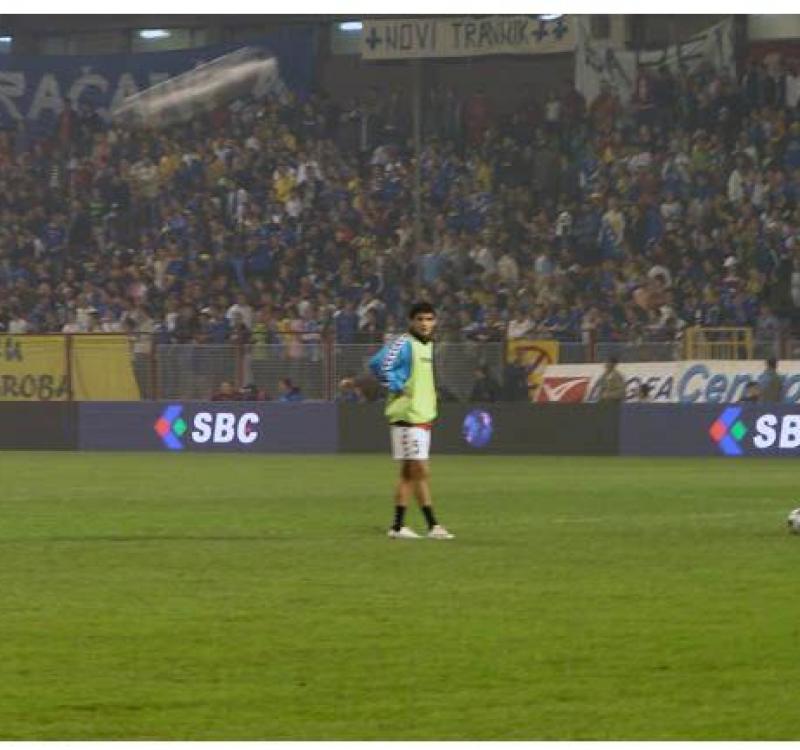

HorvátFootball Stadium LED fal Projekt

Project Location: Croatia Stadium
Product Specifications: KF34W
Item Dimensions: hossu 2.56m * magasság 0.96m = 2.46 * 88 panel = 216.48 négyzetméter
Screen Body Quantity: 88 db
Completion Time: October 10, 2008
