Name : 2nd Generation of Perimeter 16
Best view distance : ≥48m
Model : SBC-J-G-P16
Mark : SBC
Origin : Shenzhen
Lead Time : 25days
Warranty : One Year
Certificates : CE,ROHS,FCC
Browse :
2nd Generation of Perimeter 16 LED display is customized for application of big stadium. Use synchronous system which can accept signals DVI, VGA,HDMI,S-VIDEO,Complex, YUV etc. It can display programs of video, image, text. Displaying every information by real time, synchronous, clear message and can show two or three dimension animation, video, TV, VCD program and live broadcast. 2nd Generation Of Perimeter Screen 16 Technical Specification Product Name: LED Display Product type:2nd Generation Of Perimeter Screen 16 Manufacturer:Shenzhen SBC Photoelectricity co.,ltd. Technical Specification Requirements Type Technical requirements Best view distance(m) ≥48m Pixel pitch (m) 16mm Pixel resolution(Dots/m2) 3906/m2 Pixel color composition DIP 3-in-1 Cabinet size 1024*768*150mm Cabinet weight 46KG Scan method(s) Static scan Brightness(cd/m2 ) ≥5000cd/m2 adjustable by software Refresh frequency (Hz) ≥2000Hz adjustable by software MTBF(H) >10000H Max. power consumption(W/m2) 850W/ m2 Ave. Power consumption(W/m2) 320W/ m2 View angle 120 °horizontally, 120°vertically Grey level/Color 16.7M colors(Synchronized) Color temperature R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement. IP level IP65 Defects rate <1/10000Dots Life span(H) >100000H Operation voltage AC220V±10%/AC110V±10%(Power can¡¯t be converted directly) Operating temperature -20℃~+60℃ Operating humidity 10%RH~90%RH Storage temperature -10℃~+50℃ System Operating Platform WIN 98/ 2000/ XP Control PC With DVI Graphic card ( brand PC recommended) Video signal RF/S-Video/RGB/RGBHV/YUV/YC/etc Effective control distance without repeater Unshielded Twisted-pair LAN cable transmission within 100m Multi-mode optical fiber≤500m,mono-mode optical fiber≤20km. További kültéri kijelzők
As a new advertising screen, the screen will be designed stably, sturdy, durable, easy for big stadium.
Features of 2nd Generation of Perimeter 16:
1.Use DIP 3-in-1 technology to make the LED display have super wide view angle and better surface planeness
2.Specially design buffer power mask for stadium. Use buffer curve face structure peak to neutralize the hit power from the athlete
3.Synchronously adjust the brightness and color to make the true and exquisite image.
4.Reasonable price, only 2 thirds of SMD.
5.Compatible to many signal sources such as AV, S-Video, DVI, VGA, YPbPr, HDMI,SDI,DP etc.
6.Special wooden box package production protect the whole screen system.

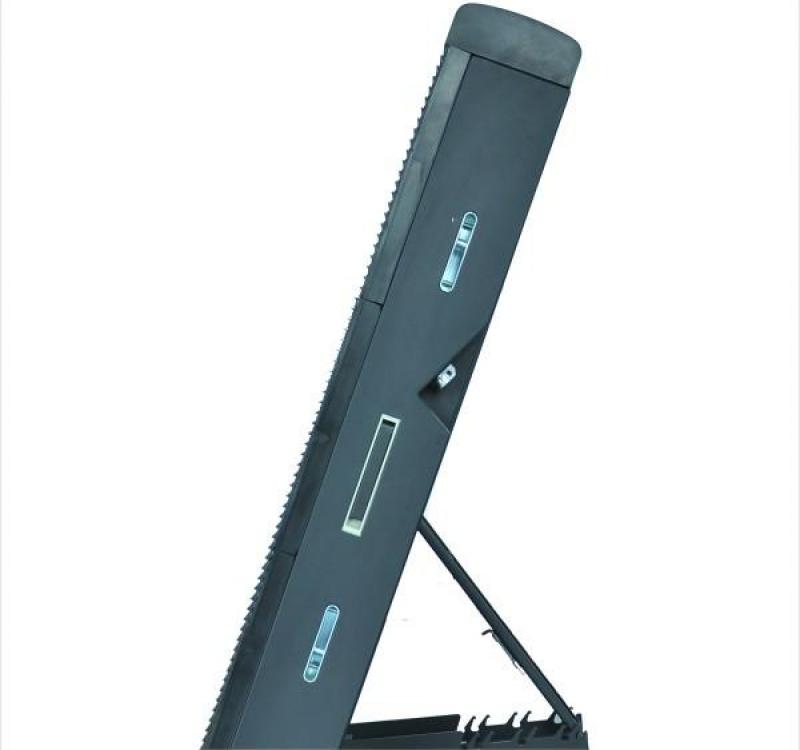

7.Back professional supporters designs make the cabinet adjust from 0 to 30 degrees, each 5 degrees, one grade, free to adjust.
8.Wonderful occasion, slow action playback, close-up view supply perfect view effect.
