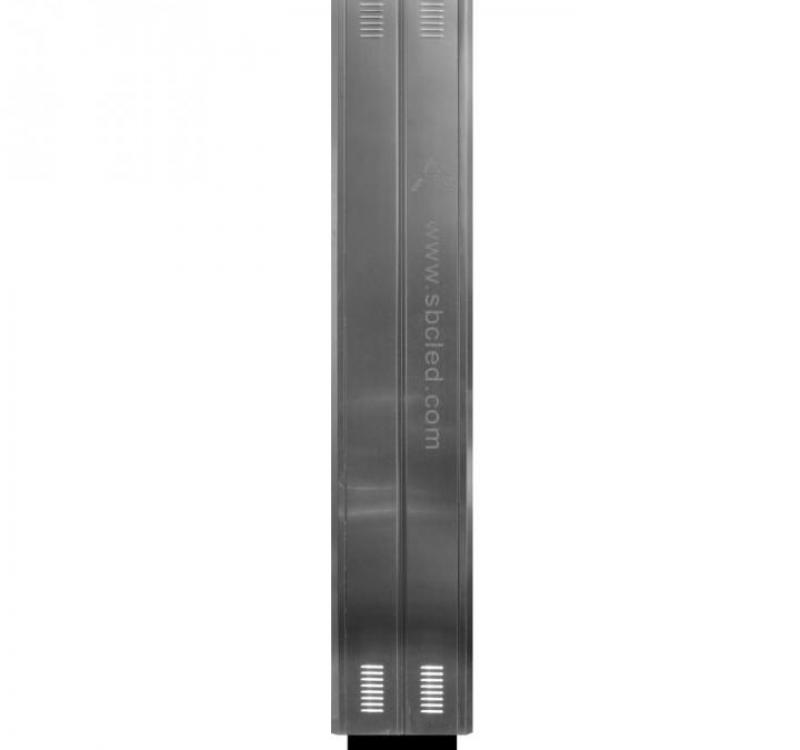

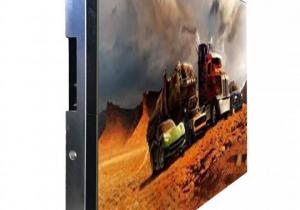

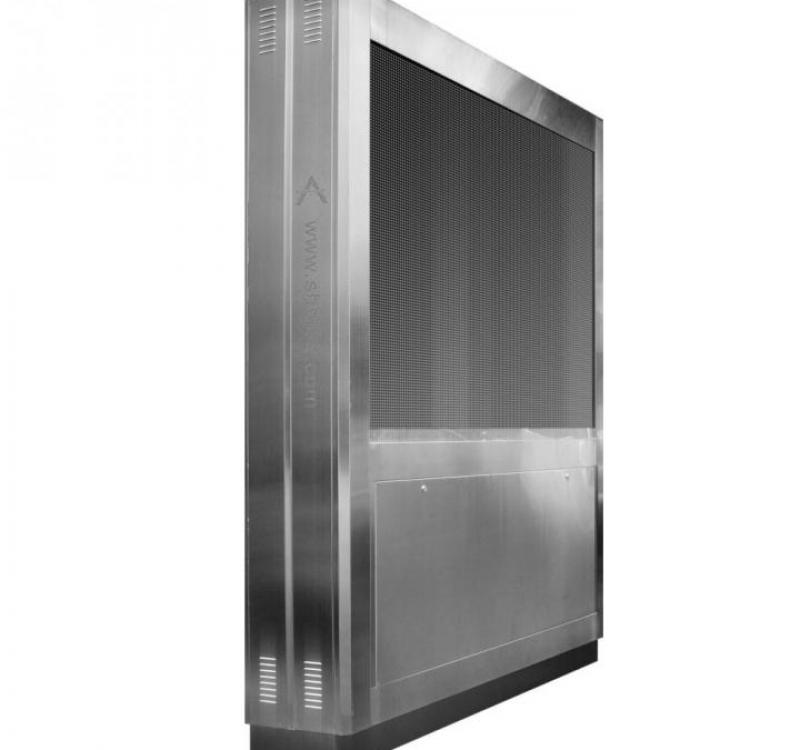

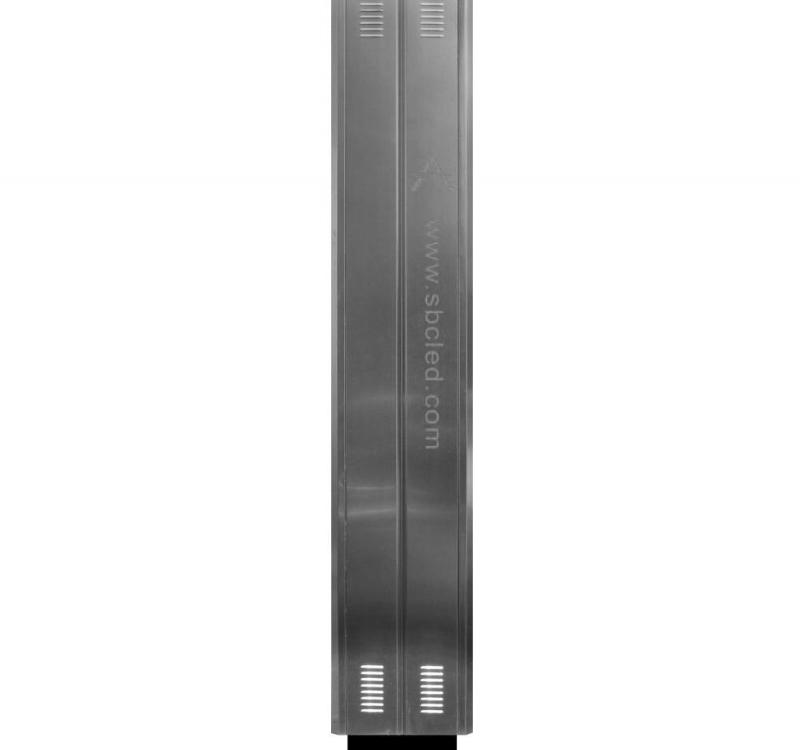

Állomás led fal p 6.8
Pixel távolság : 6.8 mm
Márka: SBC
Certifikáció: CE,RoHS,Fcc
Paraméterek: Technical Specification Requirements Type Technical requirements Best view distance(m) ≥20m Pixel pitch (m) 6.8mm Pixel resolution(Dots/㎡) 21312/㎡ Pixel color composition SMD3535 3-in-1 Cabinet size 1800*2500*450mm Cabinet weight 200KG Scan method(S) 1/7S Brightness(cd/㎡) ≥4000cd/㎡ adjustable by software Refresh frequency (Hz) ≥1000Hz adjustable by software MTBF(H) >10000H Max. power consumption(W/㎡) 750W/ ㎡ Ave. Power consumption(W/㎡) 300W/ ㎡ View angle 120 °horizontally, 120°vertically Grey level/Color 16.7M colors(Synchronized) Color temperature R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement. IP level IP43 Defects rate ＜1/10000Dots Life span(H) ＞100000H Operation voltage AC220V±10％/AC110V±10％(Power can’t be converted directly) Operating temperature -10℃～+50℃ Operating humidity 10%RH～90%RH Storage temperature -20℃～+70℃ System Operating Platform WIN 98/ 2000/ XP Control PC With DVI Graphic card ( brand PC recommended) PC display mode 1280*1024 Video signal RF/S-Video/RGB/RGBHV/YUV/YC/etc Effective control distance without repeater Unshielded Twisted-pair LAN cable transmission within 100m Multi-mode optical fiber≦500m,mono-mode optical fiber≦20km. Referencia: További beltéri kijelzők További kültéri kijelzők

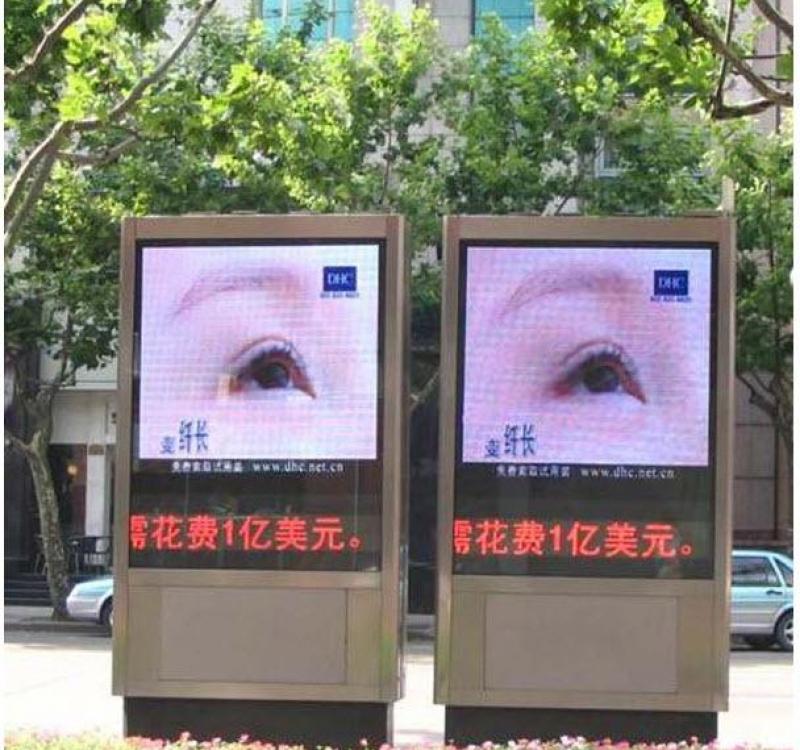

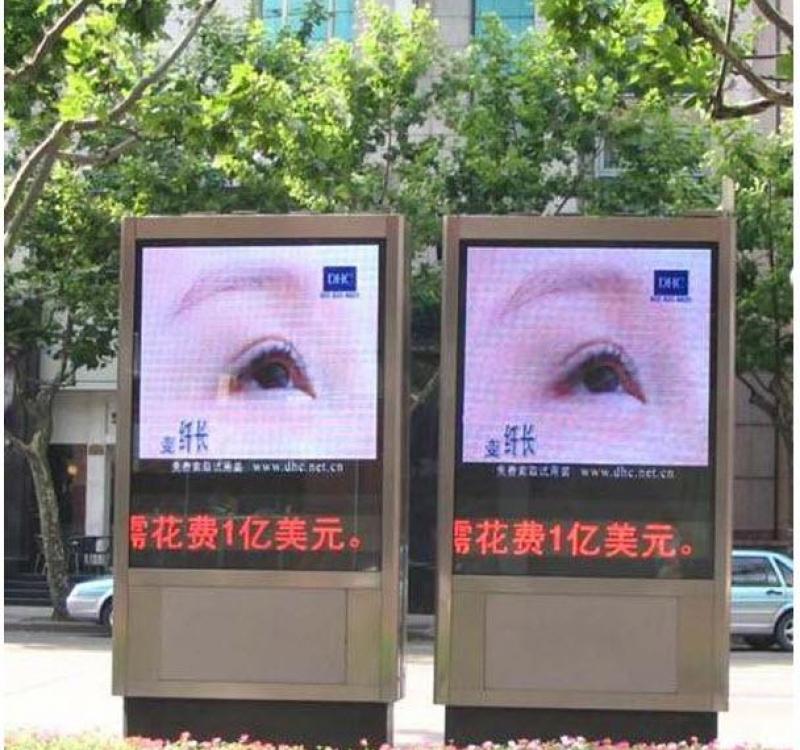

People's Road, Chengdu, Sichuan site LED screen project
Project Address: Renmin Road, Chengdu, Sichuan
Product Specifications: P7.62
Item Dimensions: Length 2.684m * height 1.83m = 4.91 sqm
Screen Body Quantity: 1 pc
Completion Time: April 18, 2008
