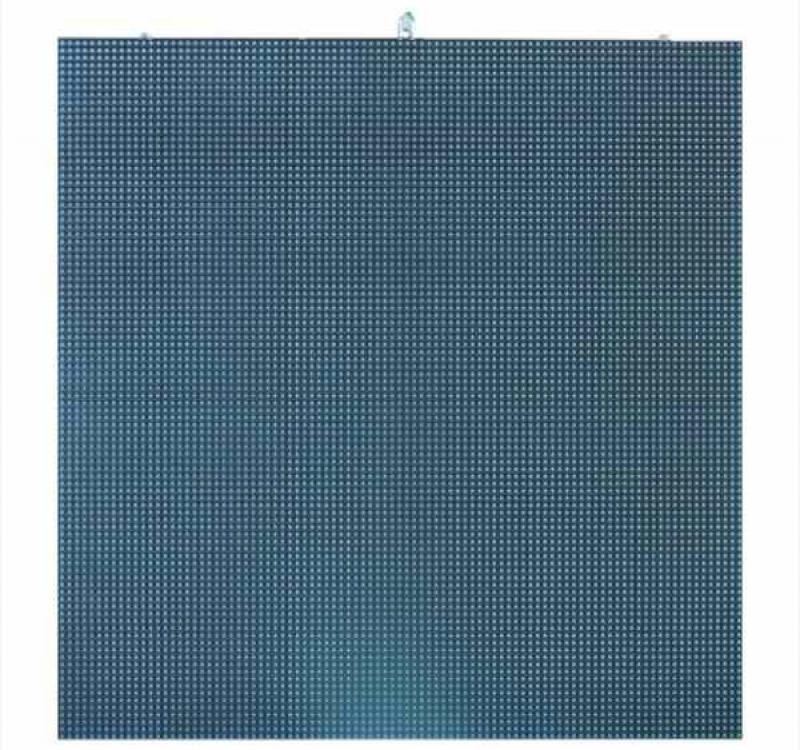

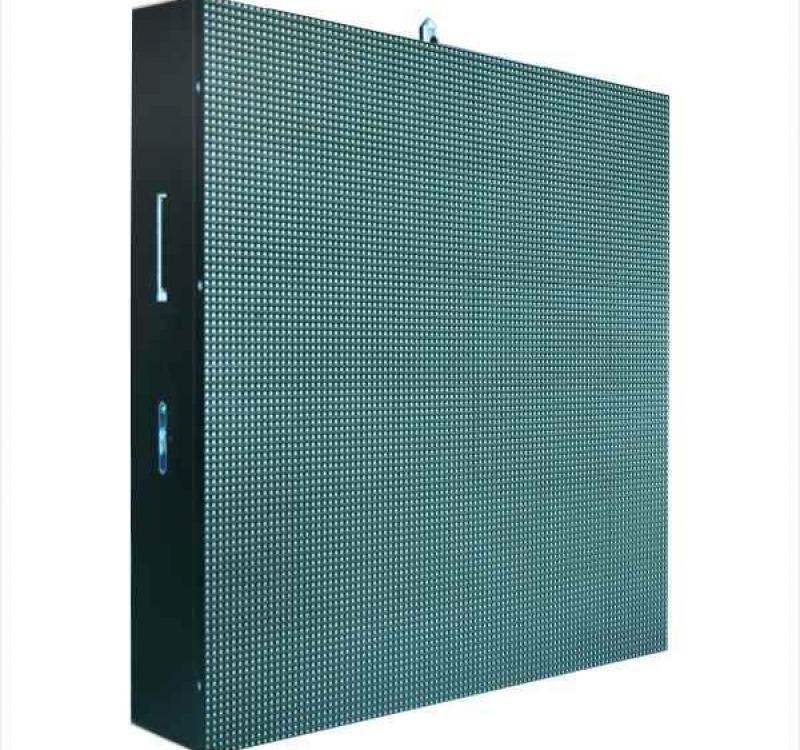

Name : King Kong(5050)10
Best view distance : ≥32m
Model : SBC-S-J-P10
Mark : SBC
Origin : Shenzhen
Lead Time : 25days
Warranty : one years
Certificates : CE,ROHS,FCC
Browse :

King Kong(5050)10 is designed for applications such as large area inside and outside spaces application developed. Adopt synchronization control system processing, acceptable DVI, VGA, HDMI, S-video, composite, YUV input signal, free to play video, graphics and images by real-time, synchronous, clear information dissemination player kinds of information, and can display two-dimensional, two-dimensional animation, video, TV, VCD programs and live.
As a new advertising display, designed to make stable, durable, easy to use, suitable for indoor and outdoor large-area advertising application spaces

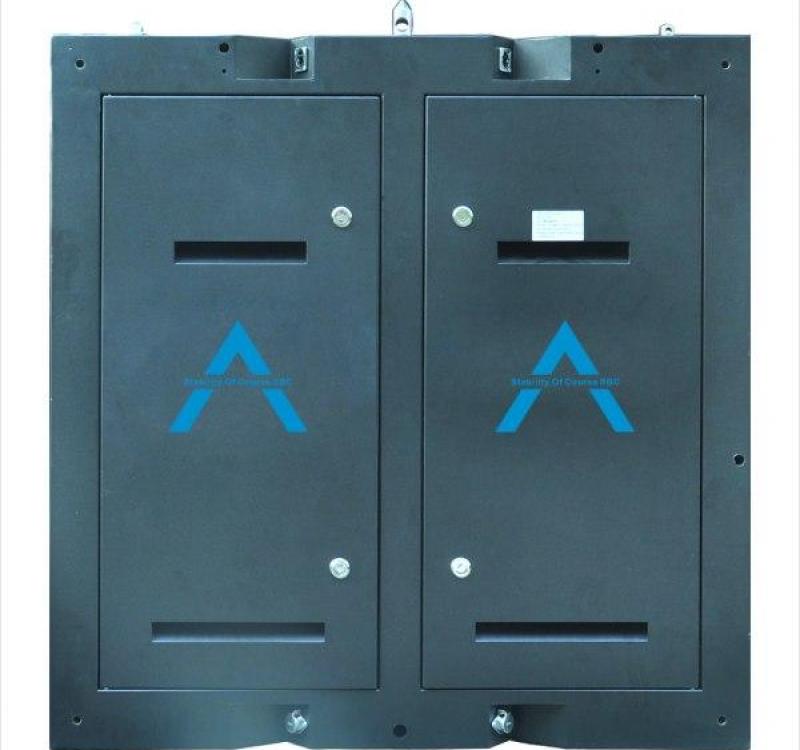

King Kong (5050)10 cabinet main features:
1.SMD 5050 technology, the LED display to use with ultra-wide viewing angle and better surface flatness.
2.Synchronous adjustment of the color and brightness of the screen body, so that the screen body presents a delicate and vivid color performance.
3.High contrast, high refresh rate, making the LED display when the image is rendered without any delay, smear phenomenon.
4.Compatible with a variety of source inputs, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.
5.Flight case professional packaging protection, control equipment to lease to play a good protection.
6.Wooden box professional packaging protection, the screen body control equipment played a good protection.
7.Display even after long-term use of perfect quality reproduction and enough brightness and white balance.



King Kong (5050) 10 Led Display Technical Specification

Product name: LED Display

Type: King Kong (5050) 10

Manufacturer: Shenzhen SBC Photoelectricity Co., Ltd

Technical Specification Requirements

Type

Parameters

Best view distance(m)

≥32m

Pixel pitch (m)

10mm

Pixel resolution(Dots/m2)

10000 Dots/m2

Pixel color composition

SMD5050

Cabinet size

960*960*150mm

Cabinet weight

38kg

Scan method(s)

1/4S

Brightness(cd/m2 )

≥5000cd/©O Software Adjustable

Refresh frequency (Hz)

≥1000Hz Software Adjustable

MTBF(H)

£¾10000H

Max. power consumption(W/m2)

500W/m2

Ave. Power consumption(W/m2)

200W/m2

View angle

Horizontal 120°, Vertical 120°

Grey level/Color

16.7M colors(Synchronized)

Color temperature

R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement.

IP level

IP65

Defects rate

<1/10000 Dots

Life span(H)

>100000H

Operation voltage

AC220V±10%/AC110V±10%(Power can¡¯t be converted directly)

Operating temperature

-20℃ ~ +60℃

Operating humidity

10%RH ~ 90%RH

Storage temperature

-10℃ ~+50℃

System Operating Platform

WIN98/2000/XP

Control PC

With DVI Graphic card ( brand PC recommended)

Video signal

RF/S-Video/RGB/RGBHV/YUV/YC/etc

Effective control distance without repeater

Unshielded Twisted-pair LAN cable transmission within 100m

Multi-mode optical fiber¨Q500m,mono-mode optical fiber¨Q20km.
