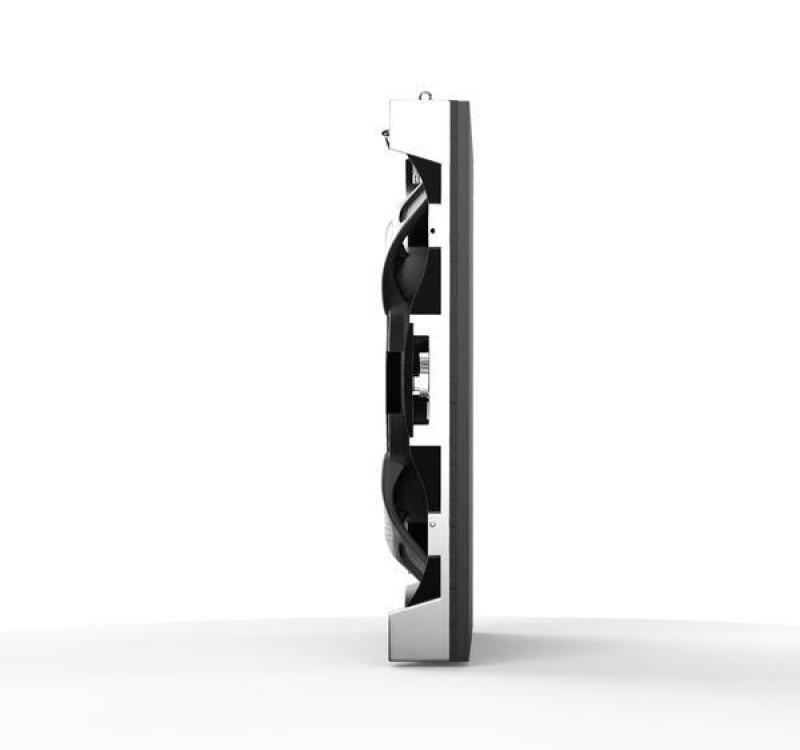

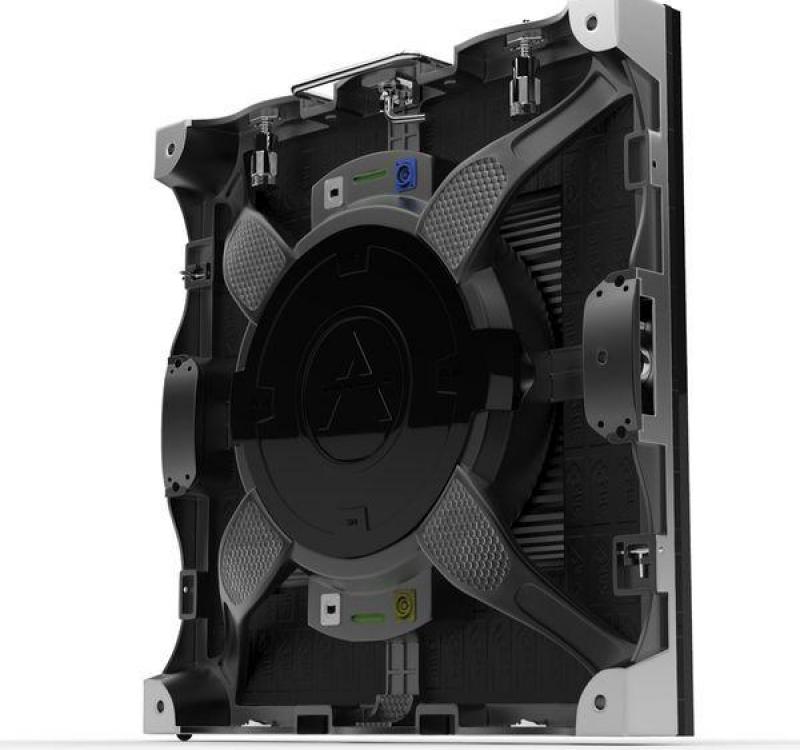

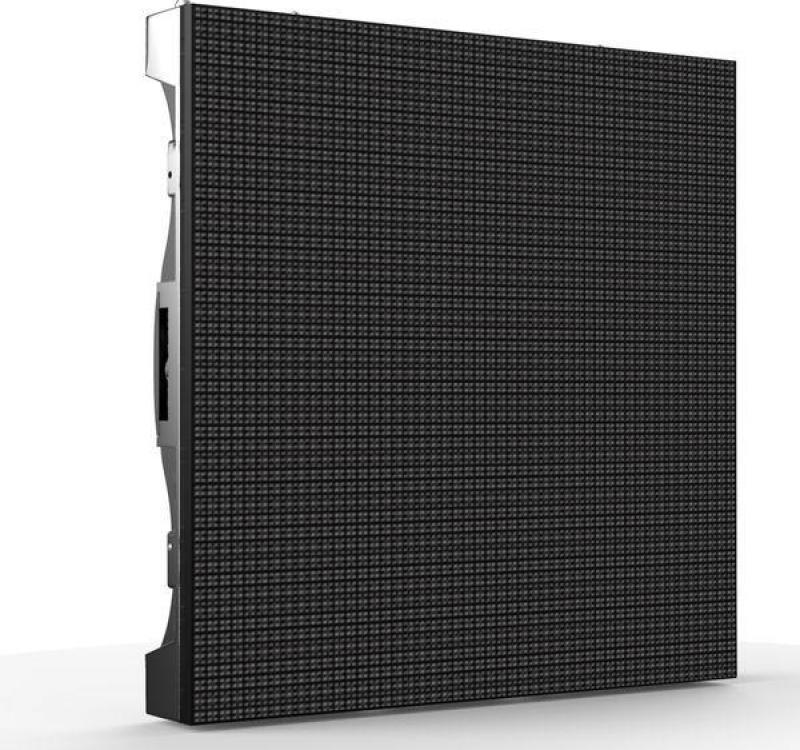

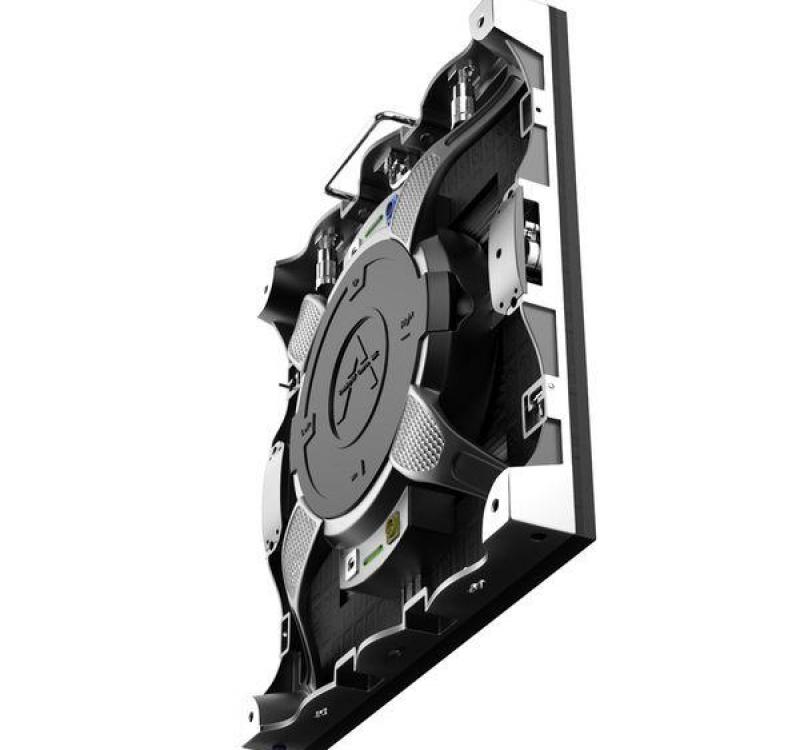

King Kong Compass 10.416 is designed for research and development stage rental and booth rental application spaces led display. Adopt synchronization control system processing, acceptable DVI, VGA, HDMI, S-video, composite, YUV input signal, free to play video, graphics and images by real-time, synchronous, clear information dissemination player kinds of information, and can display two-dimensional, two-dimensional animation, video, TV, VCD programs and live. As a new lease display, light, thin, quick installation of its most important features .Cabinet of light, thin, quick installation, dismantling and transportation, leasing application spaces suitable for large area. King Kong Compass 10.416 cabinet main features: 1.SMD 3 in 1 technology, the LED display to use with ultra-wide viewing angle and better surface flatness. 2.The entire display flatness error <0.2mm, can effectively eliminate mosaic phenomenon. 3.Synchronous adjustment of the color and brightness of the display body, so that the display body presents a delicate and vivid color performance. 4.High contrast, high refresh rate, making the LED display when the image is rendered without any delay, smear phenomenon. 5.Compatible with a variety of source inputs, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.. 6.Flight case professional packaging protection, control equipment to lease to play a good protection. 7.Light, ultra-thin Display cabinet size 500x500x83mm, weight only 10KG. 8.Convinient installation: Any parts in the of cabinet can install fast and convinient. 9.High flatness: Die casting aluminum tech., the gap tolerance between cabinet and module is within 0.1mm, there is level vial,can be more acculate to place cabinet. 10.Applied against the rental marketing customization, can be applied to stage a large area, leasing the exhibition. 11.Cabinet design use mounted on the ceiling structure, make the assembly process more cross-border. 12.Outstanding appearance: humanize curve handle design is the show of technology and artist. 13.High grade display: high refresh rate, high gray level, hight color contrast, high color display. 14.Stability: Passed the strict testing, the work tempateature is -10℃～+50℃. 15.Indoor/ outdoor product: IP65, high brightness. Technical Specification Requirements Type Technical requirements Best view distance(m) ≥30m Pixel pitch(m) 10.416mm Pixel resolution(Dots/㎡) 9216Dots/㎡ Pixel color composition SMD3535 3in1 Cabinet size 500*500*83mm Cabinet weight 10KG Scan method（S） 1/2S Brightness（cd/㎡） ≥5500cd/m2adjustable by software Refresh frequency(Hz) ≥1000Hzadjustable by software MTBF（H） >10000H Max. power consumption（W/㎡） 1100W/ m2 Ave. Power consumption（W/㎡） 440W/ m2 View angle 120°horizontally, 120°vertically Grey level/Color 16.7Mcolors（Synchronized） Color temperature R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement. IPlevel IP65 Defects rate ＜1/10000Dots Life span（H） ＞100000H Operation voltage AC220V±10％/AC110V±10％（Power can’t be converted directly） Operating temperature -10℃～+50℃ Operating humidity 10%RH~90%RH Storage temperature -20℃～+70℃ System Operating Platform WIN 98/ 2000/ XP PC display mode 1280*1024 Control PC With DVI Graphic card ( brand PC recommended) Video signal RF、S-Video、RGB、RGBHV、YUV、YCetc Effective control distance without repeater Unshielded Twisted-pair LAN cable transmission within 100m Multi-mode optical fiber≦500m,mono-mode optical fiber≦20km.
