  • Product Name: Cystal 3
  • Product No.: Cystal series P3MM

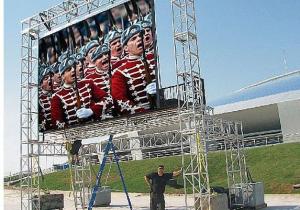

Crystal 3 is designed for research and development stage rental and booth rental application spaces led display. Adopt synchronization control system processing, acceptable DVI, VGA, HDMI, S-video, composite, YUV input signal, free to play video, graphics and images by real-time, synchronous, clear information dissemination player kinds of information, and can display two-dimensional, two-dimensional animation, video, TV, VCD programs and live.

    As a new lease display, light, thin, quick installation of its most important features .Cabinet of light, thin, quick installation, dismantling and transportation, leasing application spaces suitable for large area.

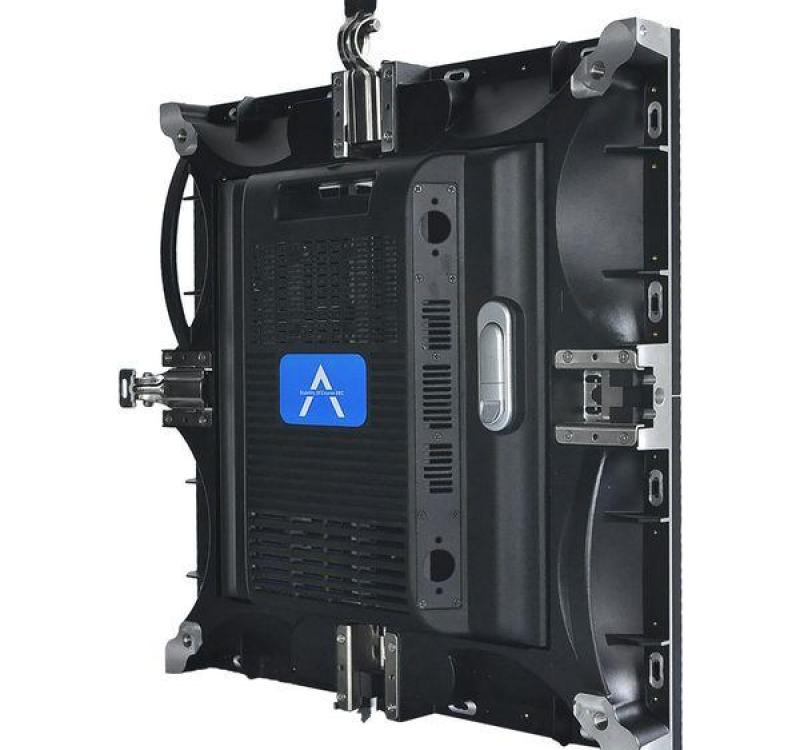

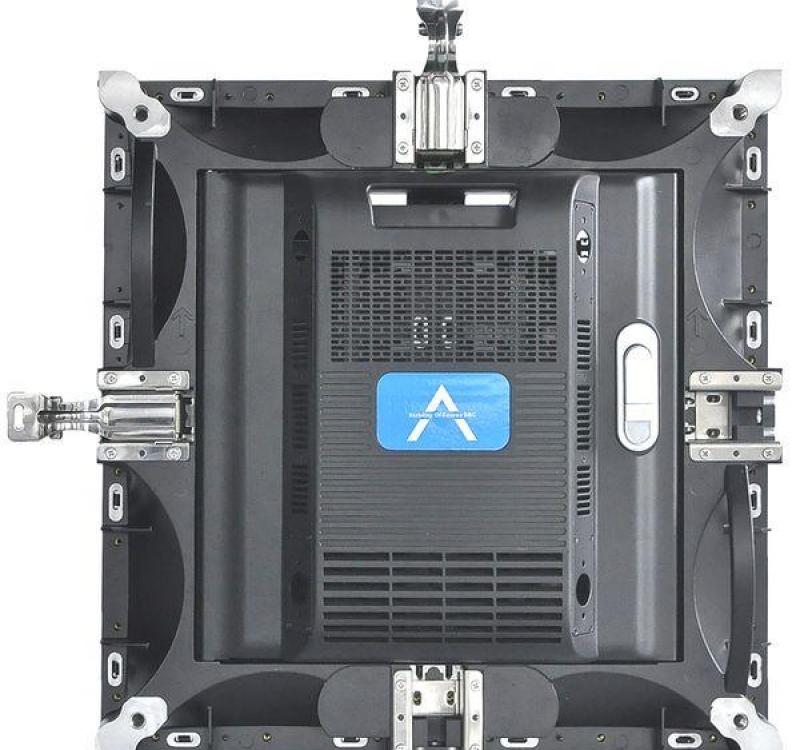

Crystal 3 cabinet main features:

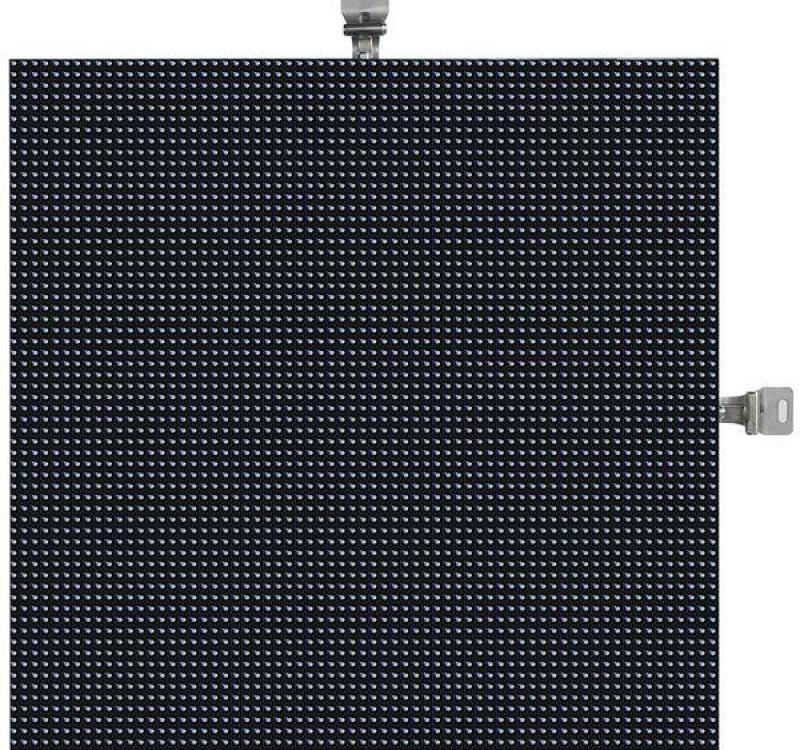

1.SMD 3 in 1 technology, the LED display to use with ultra-wide viewing angle and better surface flatness.

2.The entire display flatness error <0.2mm, can effectively eliminate mosaic phenomenon.

3.Synchronous adjustment of the color and brightness of the display body, so that the display body presents a delicate and vivid color performance.

4.High contrast, high refresh rate, making the LED display when the image is rendered without any delay, smear phenomenon.

5.Compatible with a variety of source inputs, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc..

6.Flight case professional packaging protection, control equipment to lease to play a good protection.

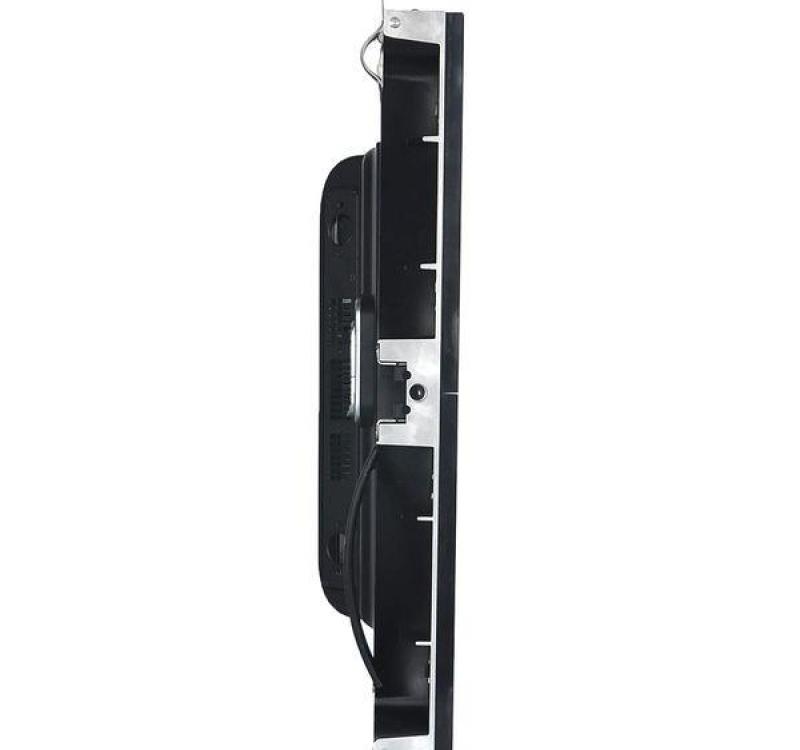

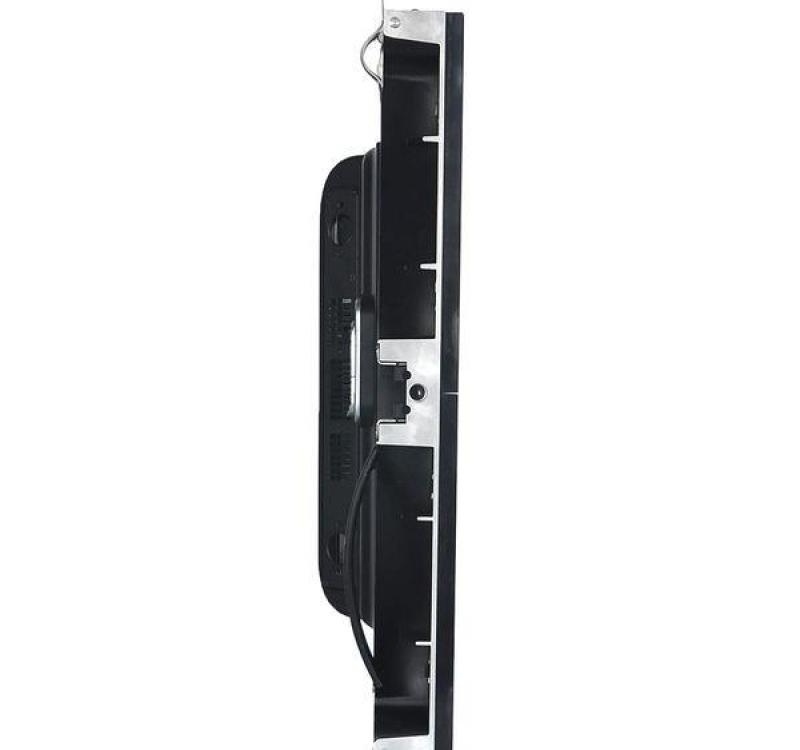

7.Light , ultra-thin Display cabinet total weight only 8.8KG.

8.Cabinet design use mounted on the ceiling structure, make the assembly process more cross-border.

9.Cabinet with side lock design, convenient for demolition, installation operations.

Technical Specification Requirements

Type

Technical requirements

Best view distance(m)

≥9m

Pixel pitch(m)

3mm

Pixel resolution(Dots/㎡)

111111Dots/㎡

Pixel color composition

SMD1616 3in1

Cabinet size

480*480mm

Cabinet weight

8.8KG

Scan method(S)

1/40S

Brightness(cd/㎡)

≥1000cd/m2adjustable by software

Refresh frequency(Hz)

≥800Hzadjustable by software

MTBF(H)

>10000H

Max. power consumption(W/㎡)

800W/ m2

Ave. Power consumption(W/㎡)

500W/ m2

View angle

120°horizontally

Grey level/Color

16.7Mcolors(Synchronized)

Color temperature

R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement.

IPlevel

IP43

Defects rate

<1/10000Dots

Life span(H)

>100000H

Operation voltage

AC220V±10%/AC110V±10%(Power can’t be converted directly)

Operating temperature

-10℃~+50℃

Operating humidity

10%RH~90%RH

Storage temperature

-20℃~+70℃

System Operating Platform

WIN 98/ 2000/ XP

PC display mode

1280*1024

Control PC

With DVI Graphic card ( brand PC recommended)

Video signal

RF、S-Video、RGB、RGBHV、YUV、YCetc

Effective control distance without repeater

Unshielded Twisted-pair LAN cable transmission within 100m

Multi-mode optical fiber≦500m,mono-mode optical fiber≦20km.
