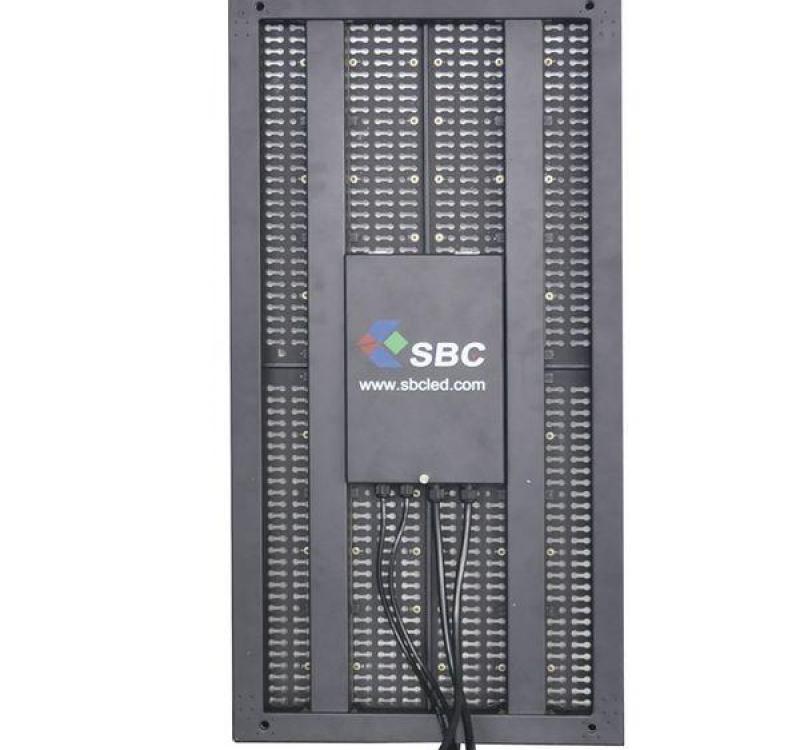

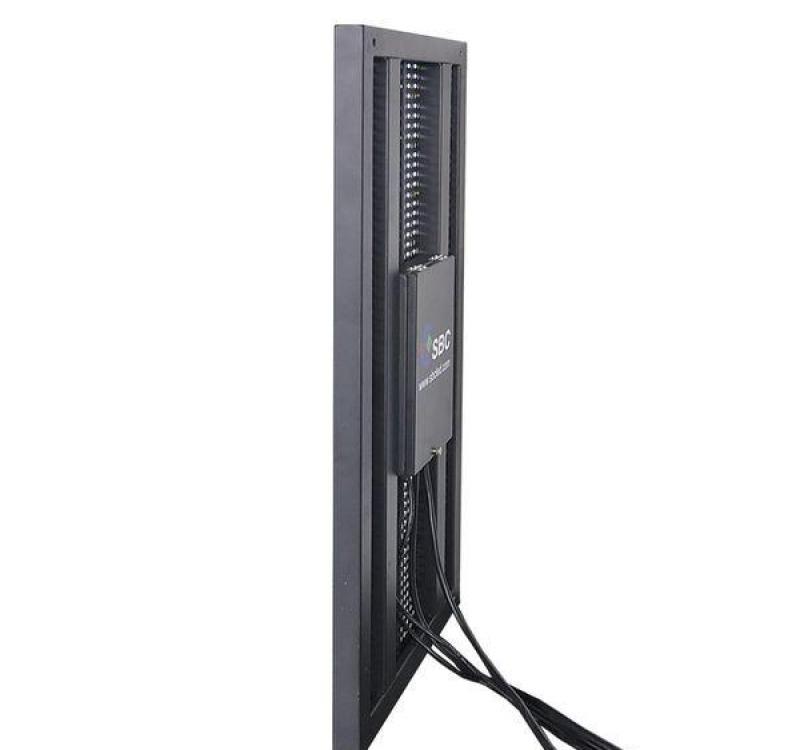

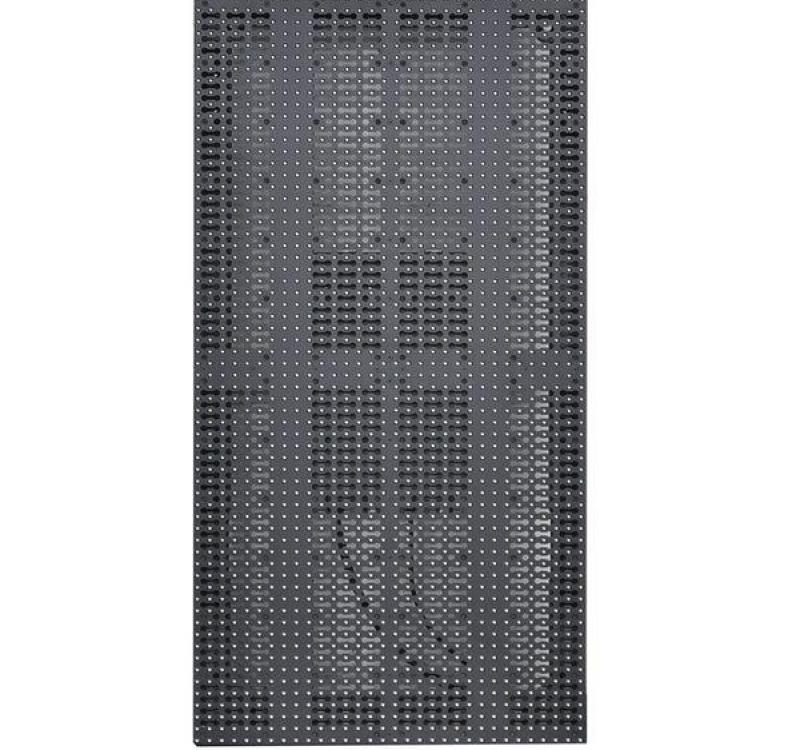

  • Product Name: Skylight 18.75 Led Display
  • Product No.: Skylight series P18.75MM

Skylight 18.75 is a LED display for indoor and outdoor stage set decoration and R & D Synchronization control system processing, acceptable DVI, VGA, HDMI, S-video, composite, YUV input signal, free to play video, graphics, images. In real-time, synchronous, clear information dissemination player kinds of information, and can display 2D and 3D animation, video, TV, VCD programs and live.

    Light bar structure design greatly reduces air resistance, simple structure, ultra-light, ultra-thin, easy to install, free to split the assembled screen the size of random combinations, refined structure, the box on both sides of the handle design, easier screen body assembly using quick lock design, the box is not only lightweight and high flexibility. Applied to a large area of indoor and outdoor stage set and decorative.

Two Skylight 18.75 series cabinet main features are as follows:

1.SMD 3 in 1 technology, so that in use, LED display with ultra-wide viewing angle and better surface flatness.

2.cable hidden design, LED display behind no messy cable.

3.Cabinet on both sides of the handle design, easier screen body assembly.

4.Synchronization through the screen body color and brightness adjustment, screen body presents a delicate and vivid color performance.

5.High contrast, high refresh rate, making the LE display render the image without any delay, smear phenomenon.

6.compatible with a variety of signal source input, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc..

7.Flight case professional packaging protection, of the screen body control equipment has played a good protection.

8.Hanging cabinet is more wider use.

9.Easy Install screen body specifications designed the cabinet total weight of 12kg.

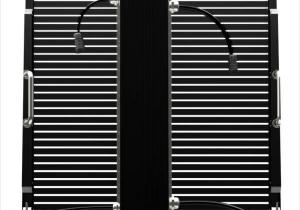

10.The cabinet light bar design, demolition, installation jobs can be convenient.

Technical Specification Requirements

Type

Technical requirements

Best view distance(m)

≥56m

Pixel pitch(m)

18.75mm

Pixel resolution(Dots/㎡)

2845Dots/㎡

Pixel color composition

SMD3528(3-in-1)

Cabinet size

600*900mm

Cabinet weight

12KG

Scan method(S)

1/2S

Brightness(cd/㎡)

≥1100cd/m2adjustable by software

Refresh frequency(Hz)

≥1000Hzadjustable by software

MTBF(H)

>10000H

Max. power consumption(W/㎡)

420W/ m2

Ave. Power consumption(W/㎡)

150W/ m2

View angle

120°horizontally

Grey level/Color

16.7Mcolors(Synchronized)

Color temperature

R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement.

IPlevel

IP43

Defects rate

<1/10000Dots

Life span(H)

>100000H

Operation voltage

AC220V±10%/AC110V±10%(Power can’t be converted directly)

Operating temperature

-10℃~+50℃

Operating humidity

10%RH~90%RH

Storage temperature

-20℃~+70℃

System Operating Platform

WIN 98/ 2000/ XP

PC display mode

1280*1024

Control PC

With DVI Graphic card ( brand PC recommended)

Video signal

RF、S-Video、RGB、RGBHV、YUV、YCetc

Effective control distance without repeater

Unshielded Twisted-pair LAN cable transmission within 100m

Multi-mode optical fiber≦500m,mono-mode optical fiber≦20km.
