Name : King Kong Curve 16 Led Display Technical Specification
Best view distance : ≥50m
Model : SBC-J-G-P16
Mark : SBC
Origin : shenzhen
Lead Time : 25days
Warranty : one years
Certificates : CE,RoHS,Fcc
Browse :
Curve kingkong 16 LED display is special made for application of giant outdoor advertising screen. Use synchronous system which can accept signals DVI, VGA,HDMI,S-VIDEO,Complex, YUV etc. It can display programs of video, image, text. Displaying every information by real time, synchronous,clear message and can show two or three dimension animation, video, TV, VCD program and live broadcast. Features of Curve kingkong 16 King Kong Curve 16 Led Display Technical Specification Product Name: LED Display Product type: King Kong Curve 16 Manufacturer: Shenzhen SBC Photoelectricity co.,ltd. Technical Specification Requirements Type Technical requirements Best view distance(m) ≥50m Pixel pitch (m) 16mm Pixel resolution(Dots/m2) 3906/m2 Pixel color composition 2R1G1B (DIP546) Cabinet size 768*1024*150mm Cabinet weight 49KG Scan method(s) Static scan Brightness(cd/m2 ) ≥5000cd/m2 adjustable by software Refresh frequency (Hz) ≥800Hz adjustable by software MTBF(H) >10000H Max. power consumption(W/m2) 1000W/ m2 Ave. Power consumption(W/m2) 400W/ m2 View angle 120 °horizontally, 120°vertically Grey level/Color 16.7M colors(Synchronized) Color temperature R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement. IP level IP65 Defects rate <1/10000Dots Life span(H) >100000H Operation voltage AC220V±10%/AC110V±10%(Power can¡¯t be converted directly) Operating temperature -10℃~+50℃ Operating humidity 10%RH~90%RH Storage temperature -20℃~+70℃ System Operating Platform WIN 98/ 2000/ XP PC display mode 1280*1024 Control PC With DVI Graphic card ( brand PC recommended) Video signal RF/S-Video/RGB/RGBHV/YUV/YC/etc Effective control distance without repeater Unshielded Twisted-pair LAN cable transmission within 100m Multi-mode optical fiber¨Q500m,mono-mode optical fiber¨Q20km. További kültéri kijelzők
As a new advertising screen, the screen will be designed stably, sturdy, durable, easy for outdoor big size advertising usage.
1.Use DIP technology to make the LED display have good waterproof and anti-humidity when used.
2.Synchronously adjust the brightness and color to make the true and exquisite image.
3.High contrast, high refresh rate make the image without any delay, trailing smear.
4.Compatible to many signal sources such as AV, S-Video, DVI, VGA, YPbPr, HDMI,SDI,DP etc.
5.Special wooden box package production protect the whole screen system.
6.Unique waterproof cabinet design, meet the standard of IP65 which can be used outdoor directly

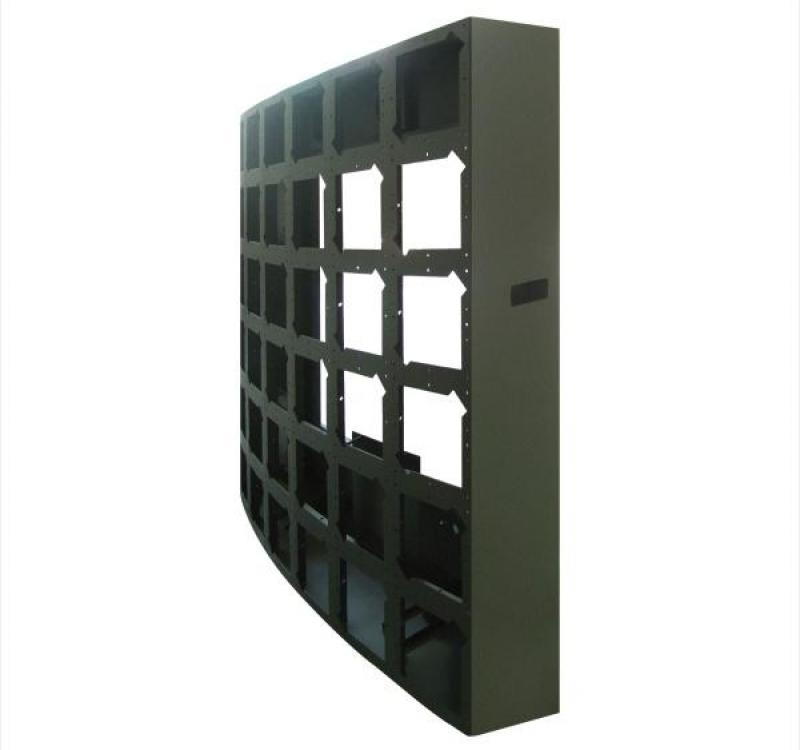

7.Unique curve module make the perfect curve face to get the perfect image.
