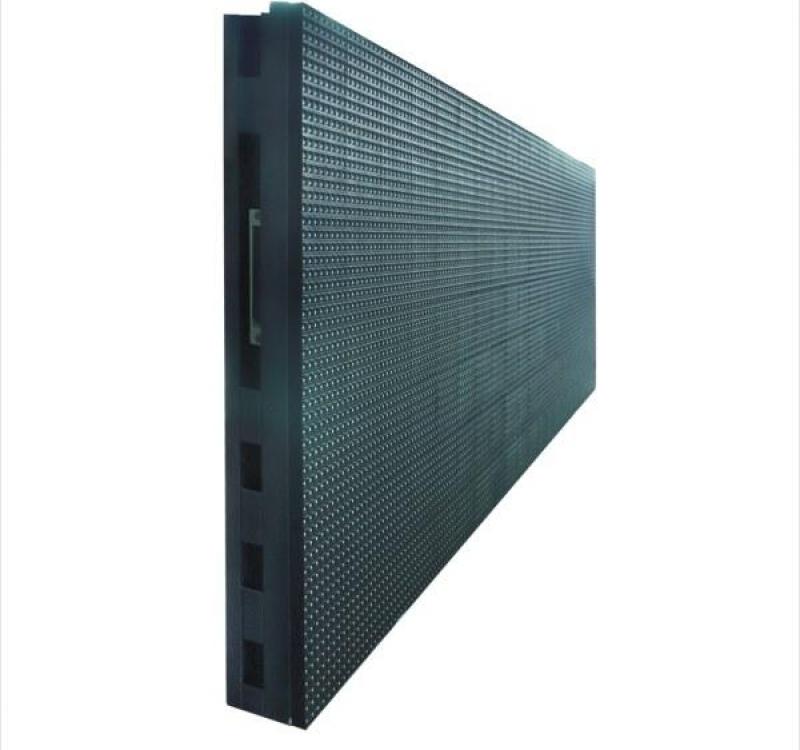

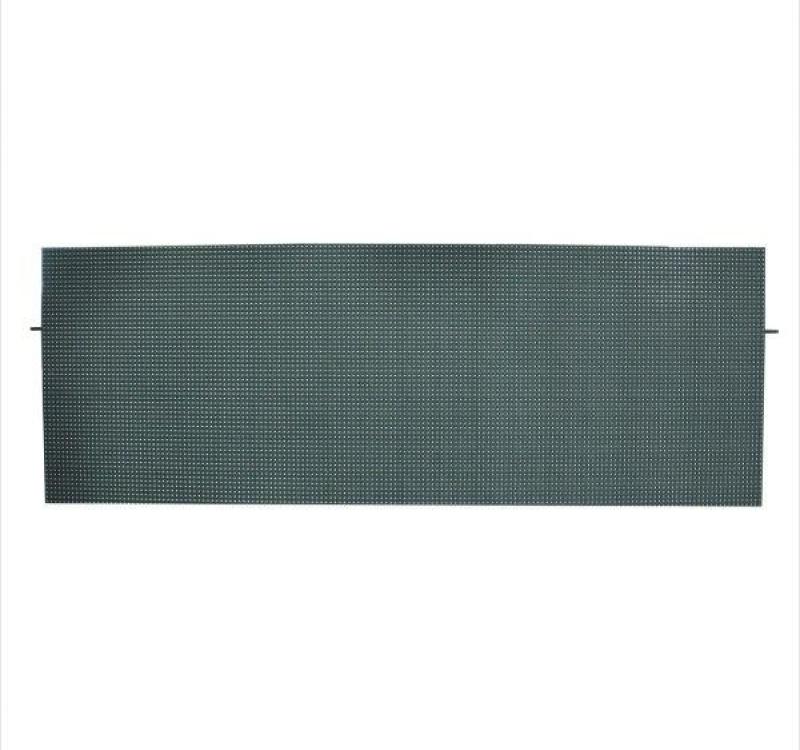

Name : 3rd Generation of Perimeter 16
Best view distance : ≥48m
Model : SBC-J-G-P16
Mark : SBC
Origin : Shenzhen
Lead Time : 25days
Warranty : One Year
Certificates : CE,ROHS,FCC
Browse :

3rd Generation of Perimeter 16 LED display is customized for application of big stadium. Use synchronous system which can accept signals DVI, VGA,HDMI,S-VIDEO,Complex, YUV etc. It can display programs of video, image, text. Displaying every information by real time, synchronous, clear message and can show two or three dimension animation, video, TV, VCD program and live broadcast.
As a new advertising screen, the screen will be designed stably, sturdy, durable, easy for big stadium.
Features of 3rd Generation of Perimeter 16
1.Use SMD 3-in-1 technology to make the LED display have super wide view angle and better surface planeness
2.Synchronously adjust the brightness and color to make the true and exquisite image.
3.2008 European Cup football stadium screen, 2560mm super long and 90mm super slim cabinet .
4.Compatible to many signal sources such as AV, S-Video, DVI, VGA, YPbPr, HDMI,SDI,DP etc.
5.Special wooden box package production protect the whole screen system.
6.DC 38V-DC5V,100% safe voltage.
7.Wonderful occasion, slow action playback, close-up view supply perfect view effect.



 3rd Generation Of Perimeter Screen 16 Technical Specification

Product Name:LED Display

Product type:3rd Generation Of Perimeter Screen 16

Manufacturer:Shenzhen SBC Photoelectricity co.,ltd.

Technical Specification Requirements

Type

Technical requirements

Best view distance(m)

≥48m

Pixel pitch (m)

16mm

Pixel resolution(Dots/m2)

3906/m2

Pixel color composition

SMD6060 3-in-1

Cabinet size

2056*896*90mm

Cabinet weight

68KG

Scan method(s)

Static scan

Brightness(cd/m2 )

≥5000cd/m2 adjustable by software

Refresh frequency (Hz)

≥2000Hz adjustable by software

MTBF(H)

>10000H

Max. power consumption(W/m2)

850W/ m2

Ave. Power consumption(W/m2)

320W/ m2

View angle

120 °horizontally, 120°vertically

Grey level/Color

16.7M colors(Synchronized)

Color temperature

R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement.

IP level

IP65

Defects rate

<1/10000Dots

Life span(H)

>100000H

Operation voltage

AC220V±10%/AC110V±10%(Power can¡¯t be converted directly)

Operating temperature

-20℃~+60℃

Operating humidity

10%RH~90%RH

Storage temperature

-10℃~+50℃

System Operating Platform

WIN 98/ 2000/ XP

Control PC

With DVI Graphic card ( brand PC recommended)

Video signal

RF/S-Video/RGB/RGBHV/YUV/YC/etc

Effective control distance without repeater

Unshielded Twisted-pair LAN cable transmission within 100m

Multi-mode optical fiber≤500m,mono-mode optical fiber≤20km.
