Name : Skylight 13
Best view distance : ≥40m
Model : SBC-T-M-P13
Mark : SBC
Origin : Shenzhen
Lead Time : 25 Days
Warranty : One Year
Certificates : CE,RoHS,Fcc
Browse :

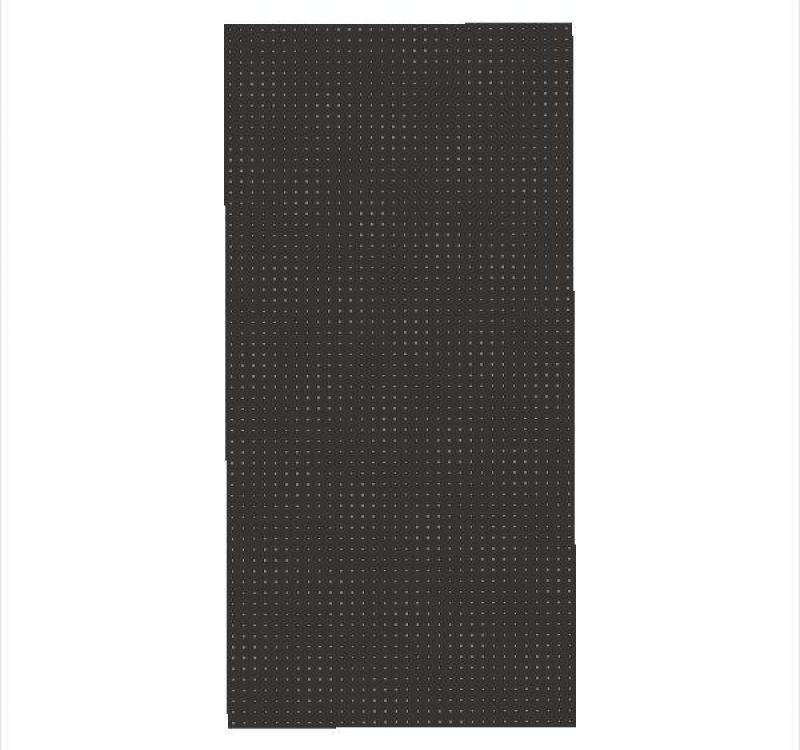

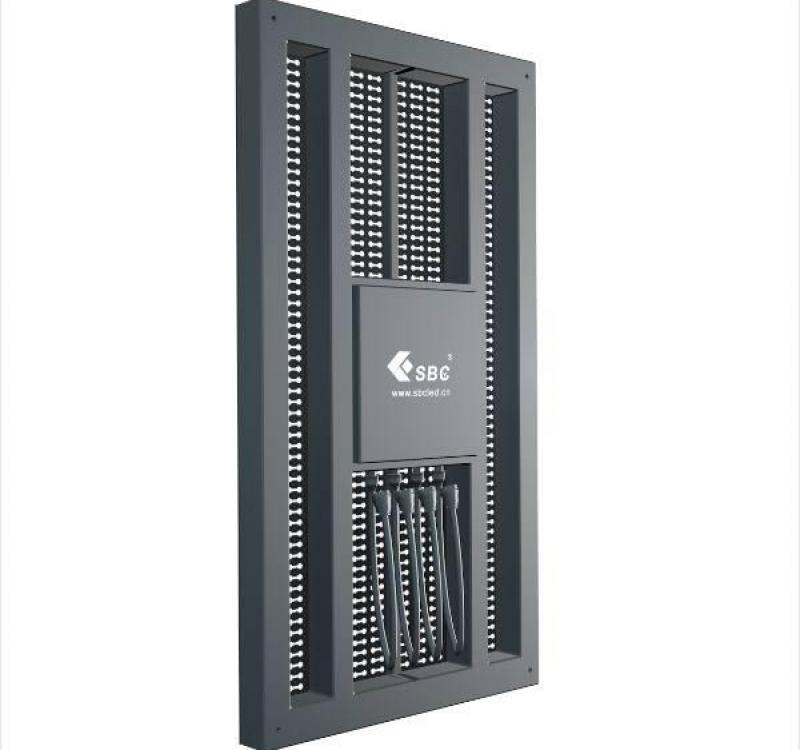

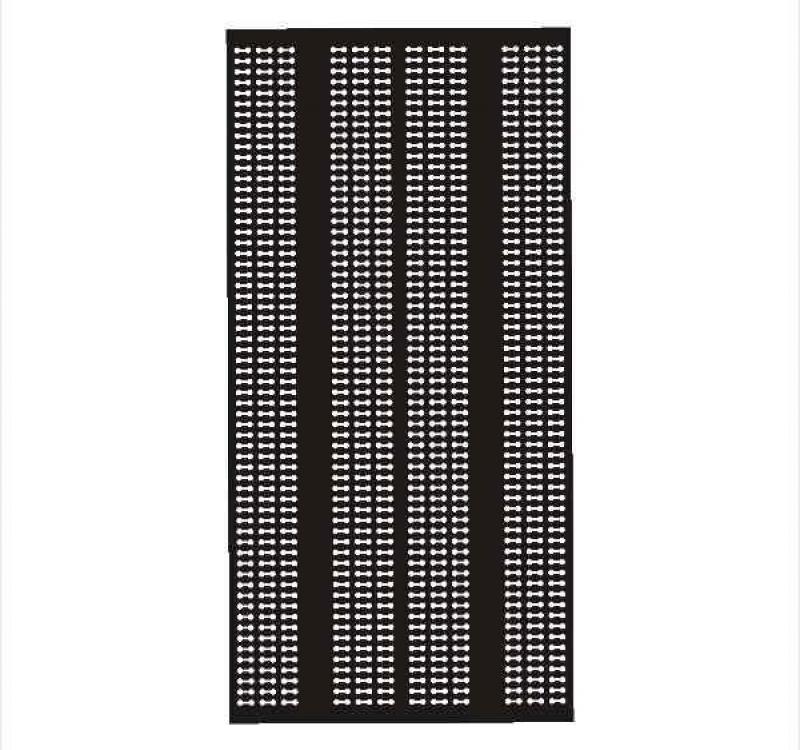

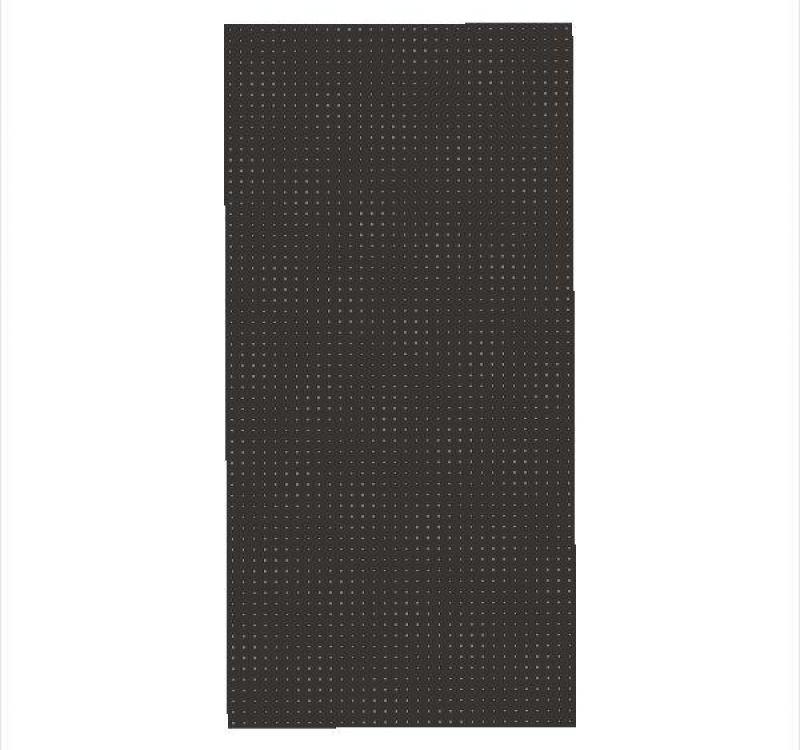

Skylight 13 is designed for research and development stage rental and booth rental application spaces led display. Adopt synchronization control system processing, acceptable DVI, VGA, HDMI, S-video, composite, YUV input signal, free to play video, graphics and images by real-time, synchronous, clear information dissemination player kinds of information, and can display two-dimensional, two-dimensional animation, video, TV, VCD programs and live. Skylight 13 cabinet main features: Skylight 13 Led Display Technical Specification Product Name:LED Display Product type:Skylight 13 Manufacturer:Shenzhen SBC Photoelectricity co.,ltd. Technical Specification Requirements Type Technical requirements Best view distance(m) ≥40m Pixel pitch (m) 13mm Pixel resolution(Dots/m2) 5917Dots/m2 Pixel color composition SMD3528 3-in-1 Cabinet size 416*832*60mm Cabinet weight 9KG Scan method(s) 1/4S Brightness(cd/m2 ) ≥1500cd/m2 adjustable by software Refresh frequency (Hz) ≥1500Hz adjustable by software MTBF(H) >10000H Max. power consumption(W/m2) 440W/ m2 Ave. Power consumption(W/m2) 180W/ m2 View angle 120 °horizontally, 120°vertically, Grey level/Color 16.7M colors(Synchronized) Color temperature R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement. IP level IP43 Defects rate <1/10000Dots Life span(H) >100000H Operation voltage AC220V±10%/AC110V±10%(Power can¡¯t be converted directly) Operating temperature -10℃~+50℃ Operating humidity 10%RH~90%RH Storage temperature -20℃~+60℃ System Operating Platform WIN 98/ 2000/ XP PC display mode 1280*1024 Control PC With DVI Graphic card ( brand PC recommended) Video signal RF/S-Video/RGB/RGBHV/YUV/YC/etc Effective control distance without repeater Unshielded Twisted-pair LAN cable transmission within 100m Multi-mode optical fiber≤ 500m,mono-mode optical fiber≤ 20km.
További beltéri kijelzők További kültéri kijelzők
As a new lease display, light, thin, quick installation of its most important features .Cabinet of light, thin, quick installation, dismantling and transportation, leasing application spaces suitable for large area.
1.SMD 3 in 1 technology, the LED display to use with ultra-wide viewing angle and better surface flatness
2.The entire screen flatness error <0.2mm, can effectively eliminate mosaic phenomenon
3.Synchronous adjustment of the color and brightness of the screen body, so that the screen body presents a delicate and vivid color performance
4.High contrast, high refresh rate, making the LED display when the image is rendered without any delay, smear phenomenon
5.Compatible with a variety of source inputs, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.
6.Flight case professional packaging protection, control equipment to lease to play a good protection.
7.Light, ultra-thin Screen cabinet total weight only 9KG
8.Cabinet design use mounted on the ceiling structure, make the assembly process more cross-border
9.Cabinet with zipper design, convenient for demolition, installation operations
