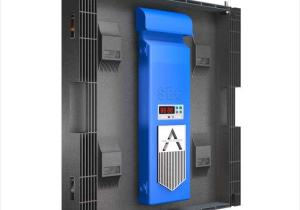

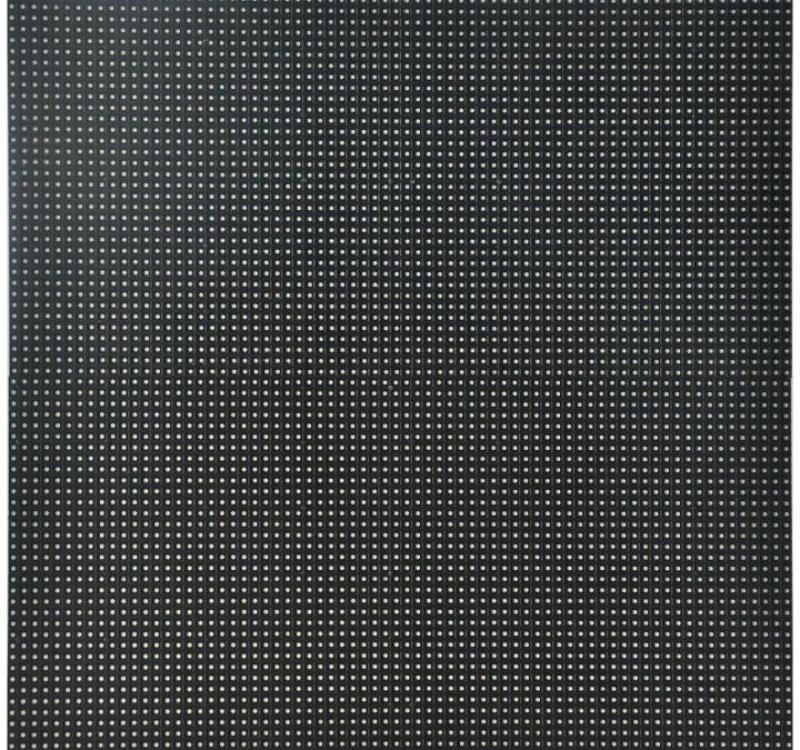

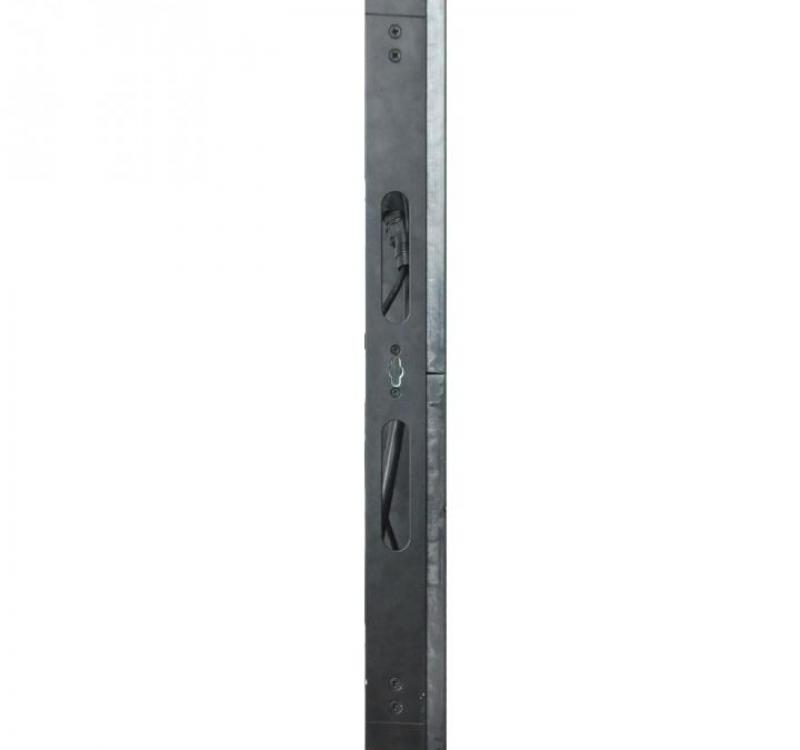

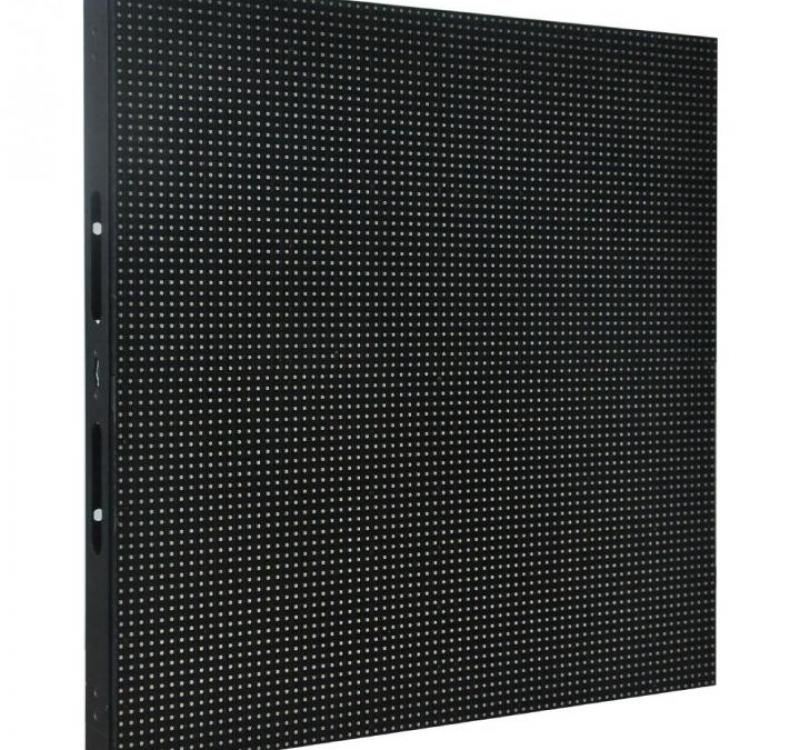

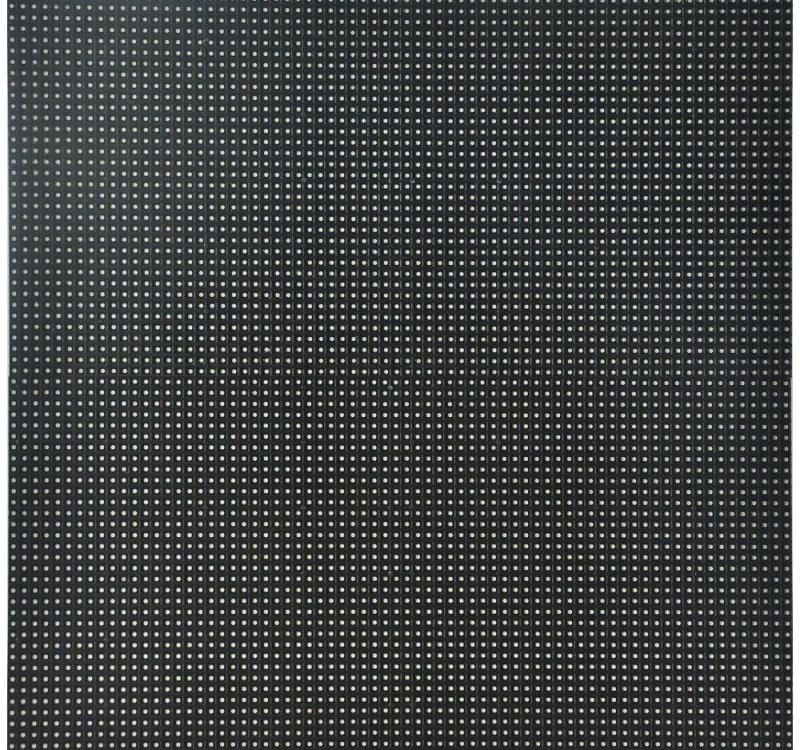

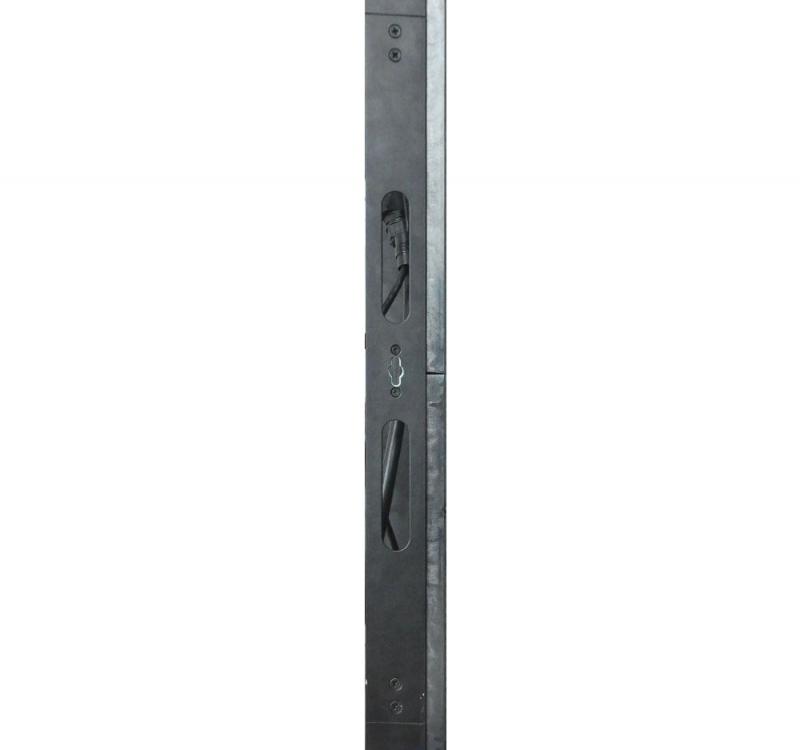

  • Product Name: 1st Generation of water mesh 6.9
  • Product No.: skylight series 1st mesh P6.9MM

1st Generation of water mesh 6.9 is designed for research and development stage rental and booth rental application spaces led display. Adopt synchronization control system processing, acceptable DVI, VGA, HDMI, S-video, composite, YUV input signal, free to play video, graphics and images by  real-time, synchronous, clear information dissemination player kinds of information, and can display two-dimensional, two-dimensional animation, video, TV, VCD programs and live.
    As a new lease display, light, thin, quick installation of its most important features .Cabinet of light, thin, quick installation, dismantling and transportation, leasing application spaces suitable for large area.

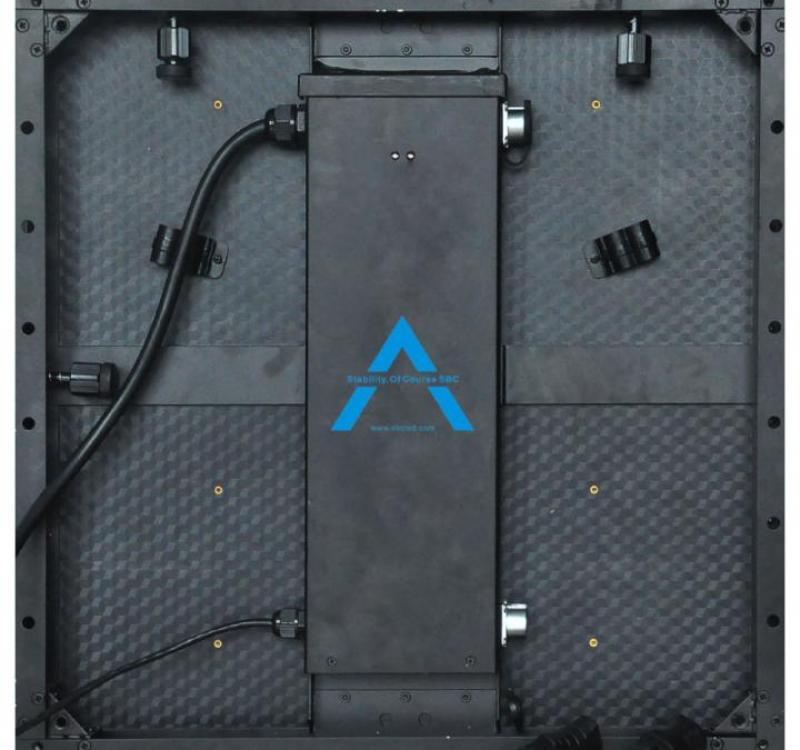

1st Generation of water mesh 6.9  cabinet main features:

1.SMD 3 in 1 technology, the LED display to use with ultra-wide viewing angle and better surface flatness.
2.The entire display flatness error <0.2mm, can effectively eliminate mosaic phenomenon.
3.Synchronous adjustment of the color and brightness of the display body, so that the display body presents a delicate and vivid color performance.
4.High contrast, high refresh rate, making the LED display when the image is rendered without any delay, smear phenomenon.
5.Compatible with a variety of source inputs, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.
6.Flight case professional packaging protection, control equipment to lease to play a good protection.
7.Light , ultra-thin Display cabinet total weight only 14.3KG.
8.Cabinet is lifting the display, a wider range of application.
9.Cabinet with zipper design, convenient for demolition, installation operations.

Specifications

Items

Technical requirements

Best viewing distnce(m)

≥25m

Pixel pitch(mm)

6.944mm

Pixel density (Dots/㎡)

20738Dots/㎡

Pixel configuration

SMD3535 3in1

Cabinet size

500*500*55mm

Weight

6.2KG

Scanning way(S)

1/9S

Brightness(cd/㎡)

≥1400cd/㎡(Adjustable)

Refresh rate(Hz)

≥600Hz(Adjustable)

MTBF(H)

>10000H

Max power(W/㎡)

450W/ ㎡

Average power(W/㎡)

180W/ ㎡

Viewing angle

H: 120°, V: 120°

Grayscale/color

16.7M color(Synchronous)

Color temperature

Red, green, blue 256 grade adjustable

Protection grade

IP54

Pixel runaway rate

<1/10000Dots

Lifetime(H)

>100000H

Power

AC220V±10%/AC110V±10%(Power can not transfor directly)

Operation temperature

-10℃ ~ +50℃

Operation humidity

10%RH~90%RH

Storage temperature

-20℃ ~ +70℃

Operation system

WIN 98/ 2000/ XP

Computer display mode

1280*1024

PC

With DVI graphics card computer(Recommend purchasing brand PC)

Input signal

RF、S-Video、RGB、RGBHV、YUV、YC、etc.

Transmission distance without repeater

Unshielded twisted pair: in 100m

Multi-mode fiber-optic transmission distance: 500m,

Single-mode fiber-optic transmission distance: in 20Km
