Skylight 20 is a LED display for indoor and outdoor stage set decoration and R & D Synchronization control system processing, acceptable DVI, VGA, HDMI, S-video, composite, YUV input signal, free to play video, graphics, images. In real-time, synchronous, clear information dissemination player kinds of information, and can display 2D and 3D animation, video, TV, VCD programs and live. Skylight 20 series cabinet main features are as follows: Technical Specification Requirements Type Technical requirements Best view distance(m) ≥60m Pixel pitch (m) 20mm Pixel resolution(Dots/㎡) 2500Dots/㎡ Pixel color composition SMD5050 3-in-1 Cabinet size 640*640*73mm Cabinet weight 8.5KG Scan method(S) Static scan Brightness(cd/㎡) ≥5000cd/㎡ adjustable by software Refresh frequency (Hz) ≥600Hz adjustable by software MTBF(H) >10000H Max. power consumption(W/㎡) 625W/ ㎡ Ave. Power consumption(W/㎡) 250W/ ㎡ View angle 120 °horizontally, 120°vertically, Grey level/Color 16.7M colors(Synchronized) Color temperature R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement. IP level IP65 Defects rate ＜1/10000Dots Life span(H) ＞100000H Operation voltage AC220V±10％/AC110V±10％(Power can’t be converted directly) Operating temperature -10℃ ～ +50℃ Operating humidity 10%RH～90%RH Storage temperature -20℃ ～ +70℃ System Operating Platform WIN 98/ 2000/ XP PC display mode 1280*1024 Control PC With DVI Graphic card ( brand PC recommended) Video signal RF/S-Video/RGB/RGBHV/YUV/YC/etc Effective control distance without repeater Unshielded Twisted-pair LAN cable transmission within 100m Multi-mode optical fiber≦500m,mono-mode optical fiber≦20km. További beltéri kijelzők További kültéri kijelzők

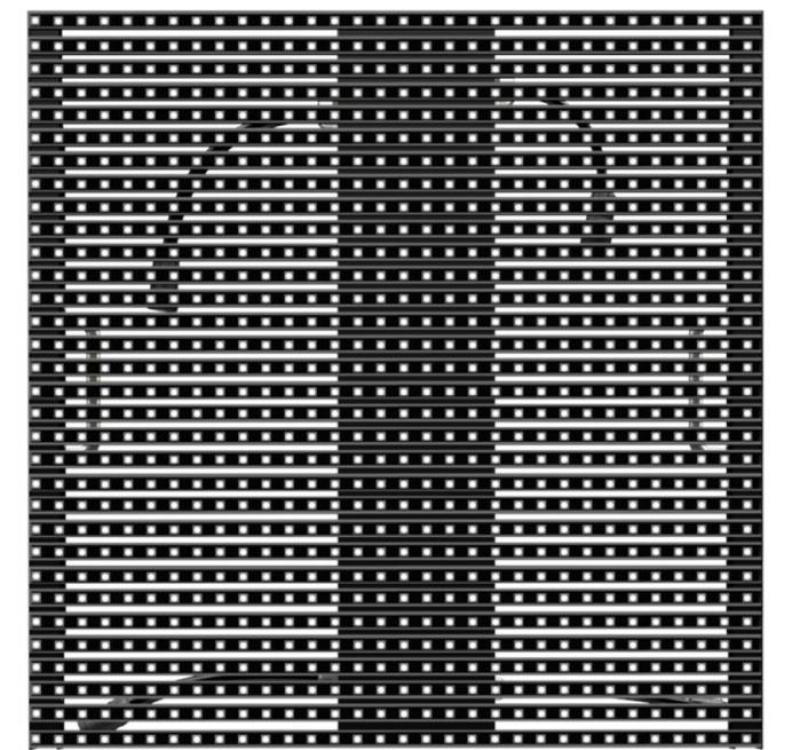

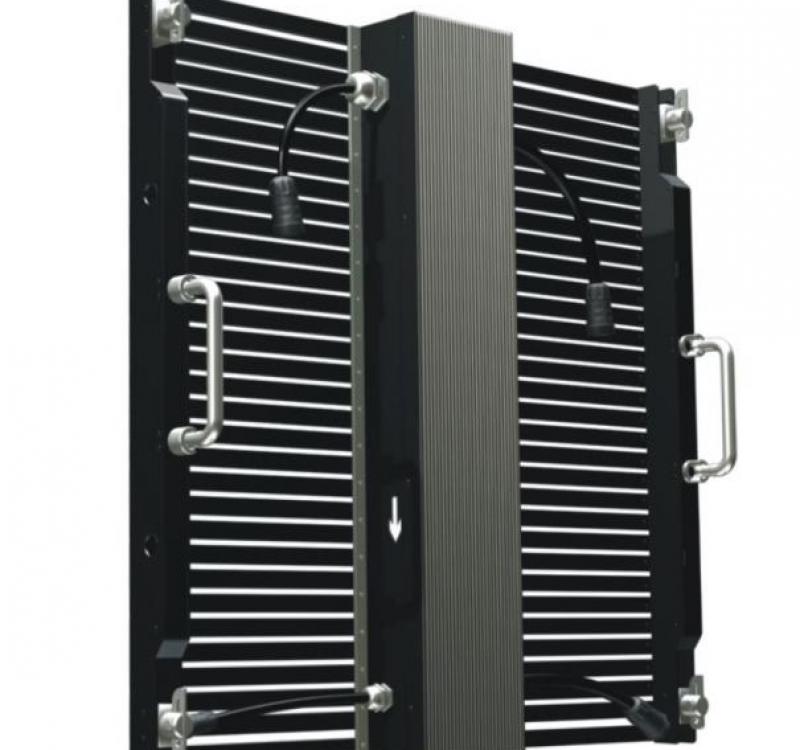

Light bar structure design greatly reduces air resistance, simple structure, ultra-light, ultra-thin, easy to install, free to split the assembled screen the size of random combinations, refined structure, the box on both sides of the handle design, easier screen body assembly using quick lock design, the box is not only lightweight and high flexibility. Applied to a large area of indoor and outdoor stage set and decorative.
1.SMD 3 in 1 technology, so that in use, LED display with ultra-wide viewing angle and better surface flatness.

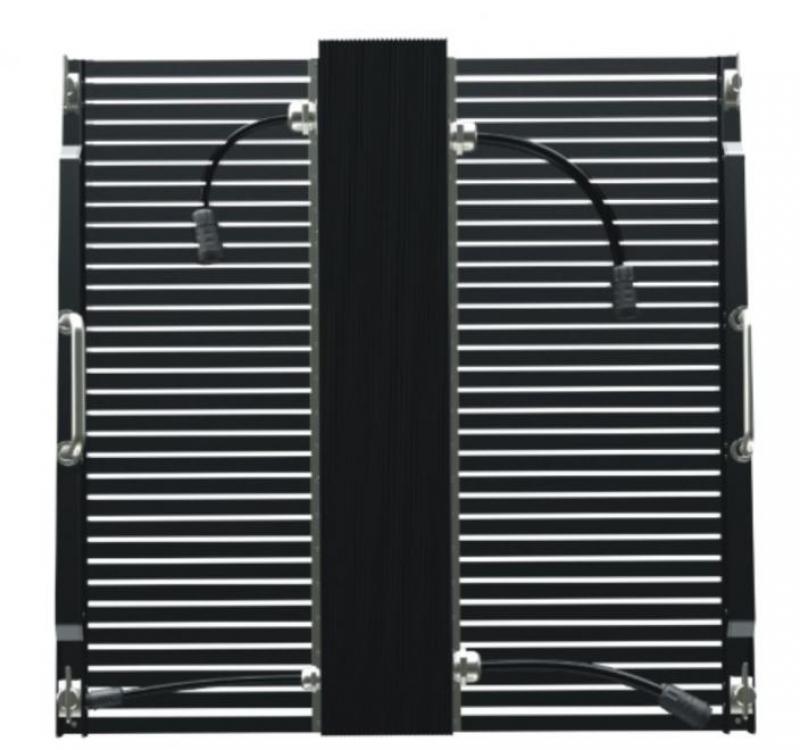

2.Cable hidden design, LED display behind no messy cable.

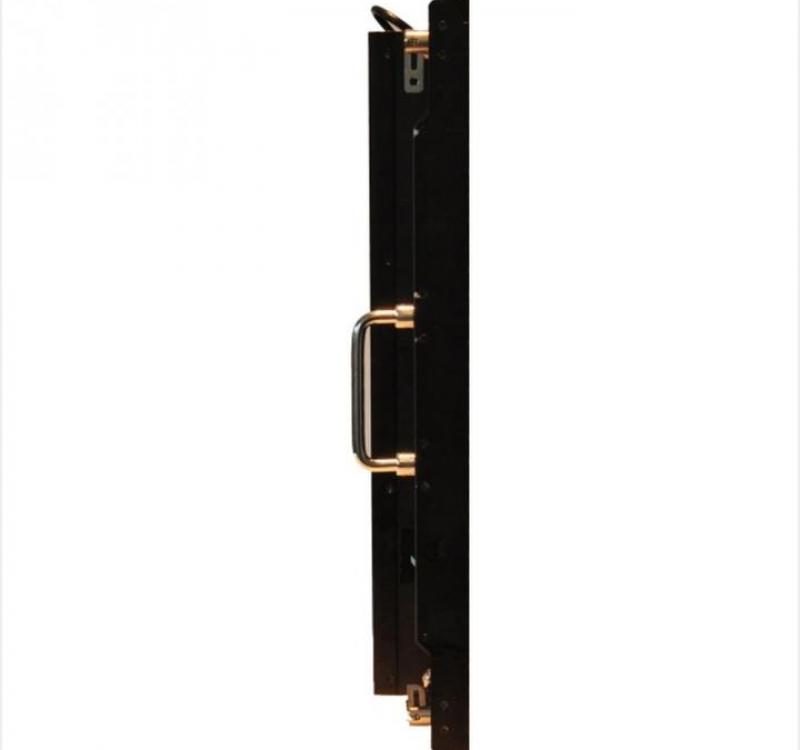

3.Cabinet on both sides of the handle design, easier screen body assembly.
4.Synchronization through the screen body color and brightness adjustment, screen body presents a delicate and vivid color performance.
5.High contrast, high refresh rate, making the LE display render the image without any delay, smear phenomenon.
6.Compatible with a variety of signal source input, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.
7.Flight case professional packaging protection, of the screen body control equipment has played a good protection.
8.Easy Install screen body specifications designed the cabinet total weight of 7.1kg.
9.The cabinet light bar design, demolition, installation jobs can be convenient.
