  • Product Name: Mesh 37.5 Led Display
  • Product No.: Mesh P37.5MM

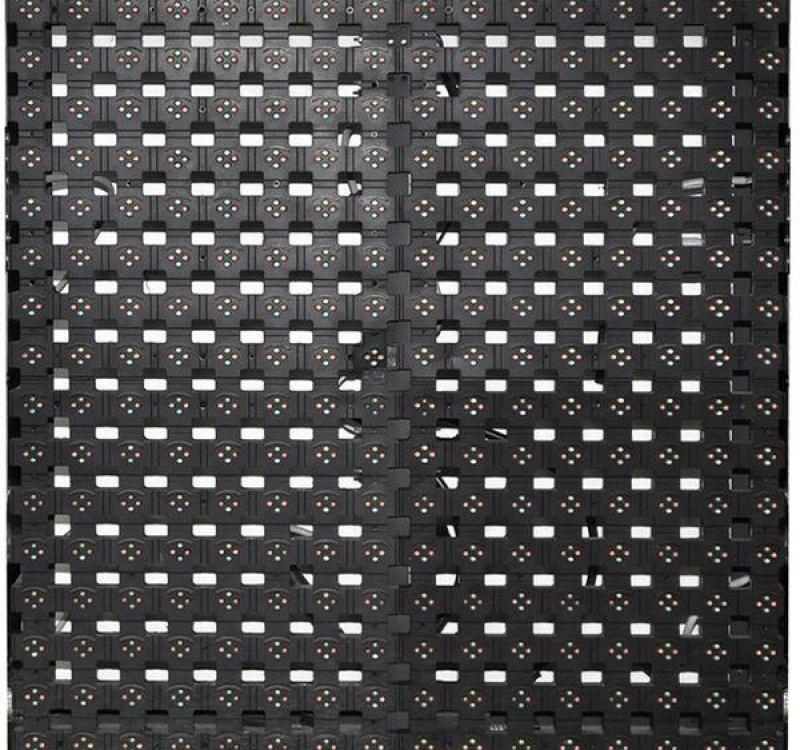

Mesh 37.5 Cabinet LED display is special made for application of giant outdoor advertising screen. Use synchronous system which can accept signals DVI, VGA,HDMI,S-VIDEO,Complex, YUV etc. It can display programs of video, image, text. Displaying every information by real time, synchronous,clear message and can show two or three dimension animation, video, TV, VCD program and live broadcast.

    As a new advertising screen, the screen will be designed stably, sturdy, durable, easy for outdoor big size advertising usage.

Features of Mesh 37.5 Cabinet:

1.Using DIP technology make the screen have a excellent effect when it plays .

2.The entire display flatness error <0.2mm, can effectively eliminate mosaic phenomenon.

3.Synchronous adjustment of the color and brightness of the display body, so that the display body presents a delicate and vivid color performance.

4.High contrast, high refresh rate, making the LED display when the image is rendered without any delay, smear phenomenon.

5.Compatible with a variety of source inputs, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.

6.Flight case professional packaging protection, control equipment to lease to play a good protection.

7.Light, ultra-thin Display cabinet total weight only 8KG.

8.Cabinet design use mounted on the ceiling structure, make the assembly process more cross-border.

9.Nano materials, double heat cabinet extremely rigid and toughness, crashworthiness.

Technical Specification Requirements

Type

Technical requirements

Best view distance(m)

≥110m

Pixel pitch(m)

37.5mm

Pixel resolution(Dots/㎡)

711Dots/㎡

Pixel color composition

2R1G1B  DIP546

Cabinet size

600*600*80

Cabinet weight

8KG

Scan method(S)

Static

Brightness(cd/㎡)

≥1100cd/m2adjustable by software

Refresh frequency(Hz)

≥1000Hzadjustable by software

MTBF(H)

>10000H

Max. power consumption(W/㎡)

200W/ m2

Ave. Power consumption(W/㎡)

120W/ m2

View angle

120°horizontally

Grey level/Color

16.7Mcolors(Synchronized)

Color temperature

R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement.

IPlevel

IP65

Defects rate

<1/10000Dots

Life span(H)

>100000H

Operation voltage

AC220V±10%/AC110V±10%(Power can’t be converted directly)

Operating temperature

-10℃~+50℃

Operating humidity

10%RH~90%RH

Storage temperature

-20℃~+70℃

System Operating Platform

WIN 98/ 2000/ XP

PC display mode

1280*1024

Control PC

With DVI Graphic card ( brand PC recommended)

Video signal

RF、S-Video、RGB、RGBHV、YUV、YCetc

Effective control distance without repeater

Unshielded Twisted-pair LAN cable transmission within 100m

Multi-mode optical fiber≦500m,mono-mode optical fiber≦20km.
