Name : Skylight 50-25
Best view distance : ≥172m
Model : SBC-S-L-P5
Mark : SBC
Origin : Shenzhen
Lead Time : 25days
Warranty : One Year
Certificates : CE,ROHS,FCC
Browse :
Skylight 50-25 is a LED display for indoor and outdoor stage set decoration and R & D .Synchronization control system processing, acceptable DVI, VGA, HDMI, S-video, composite, YUV input signal, free to play video, graphics, images. In real-time, synchronous, clear information dissemination player kinds of information, and can display 2D and 3D animation, video, TV, VCD programs and live. Skylight 50-25 series cabinet main features are as follows: Skylight 50-25 Led Display Technical Specification Product Name:LED Display Product type:Skylight 50-25 Manufacturer:Shenzhen SBC Photoelectricity co.,ltd. Technical Specification Requirements Type Technical requirements Best view distance(m) ≥172m Pixel pitch (m) 50-25mm Pixel resolution(Dots/m2) 800Dots/m2 Pixel color composition 2R2G2B Cabinet size 1600*1600*166mm Cabinet weight 74KG Scan method(s) Static scan Brightness(cd/m2 ) ≥6000cd/m2 adjustable by software Refresh frequency (Hz) ≥1000Hz adjustable by software MTBF(H) >10000H Max. power consumption(W/m2) 320W/ m2 Ave. Power consumption(W/m2) 120W/ m2 View angle 140 °horizontally Grey level/Color 16.7M colors(Synchronized) Color temperature R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement. IP level IP65 Defects rate <1/10000Dots Life span(H) >100000H Operation voltage AC220V±10%/AC110V±10%(Power can¡¯t be converted directly) Operating temperature -10℃ ~ +50℃ Operating humidity 10%RH~90%RH Storage temperature -20℃ ~ +70℃ System Operating Platform WIN 98/ 2000/ XP PC display mode 1280*1024 Control PC With DVI Graphic card ( brand PC recommended) Video signal RF/S-Video/RGB/RGBHV/YUV/YC/etc Effective control distance without repeater Unshielded Twisted-pair LAN cable transmission within 100m Multi-mode optical fiber≤ 500m,mono-mode optical fiber≤ 20km. További beltéri kijelzők További kültéri kijelzők

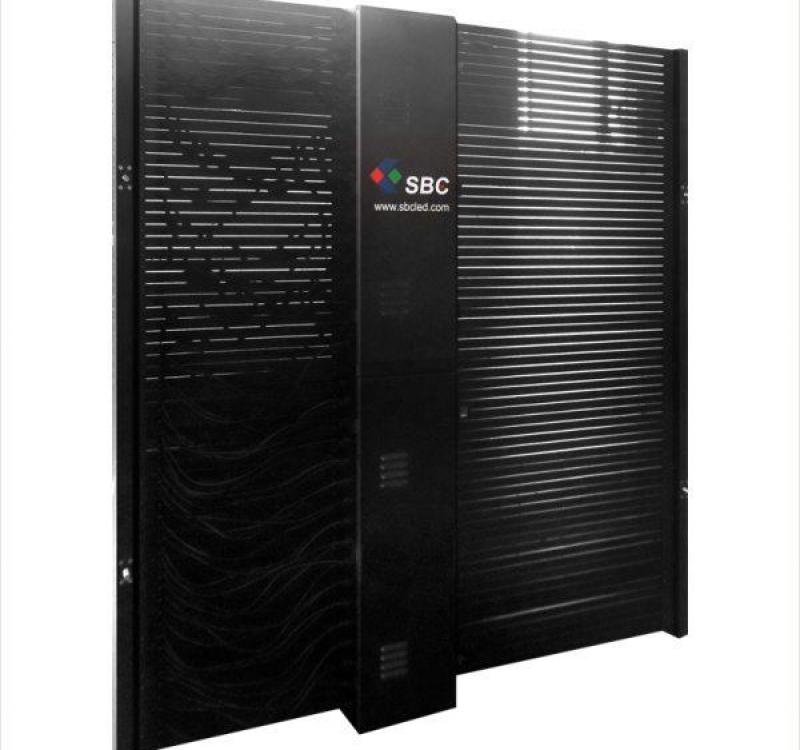

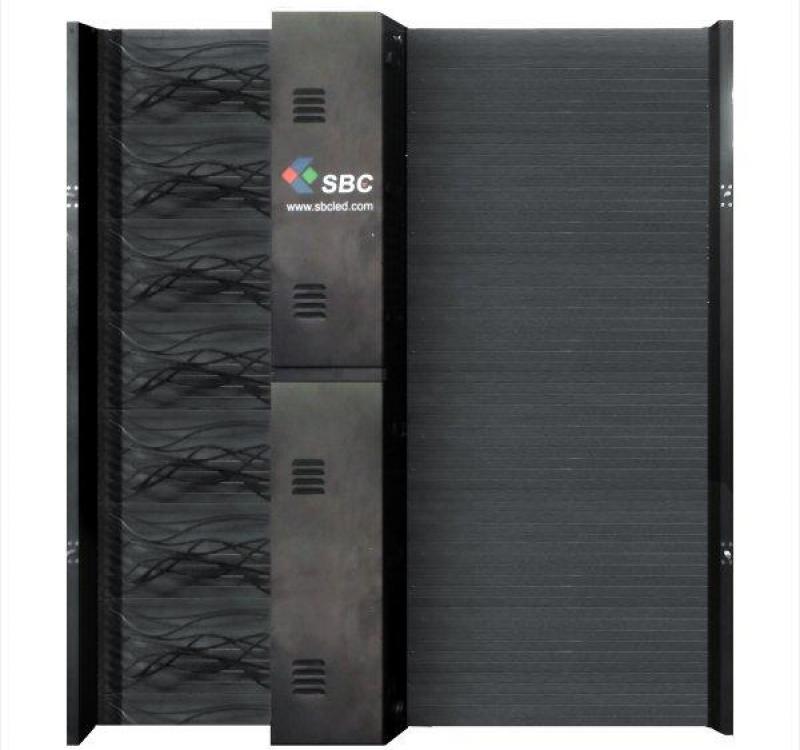

Light bar structure design greatly reduces air resistance, simple structure, ultra-light, ultra-thin, easy to install, free to split the assembled screen the size of random combinations, refined structure, the box on both sides of the handle design, easier screen body assembly using quick lock design, the box is not only lightweight and high flexibility. Applied to a large area of indoor and outdoor stage set and decorative.
1.Using DIP technology , make the screen have a excellent effect when use it .
2.The high-quality screen, ultra-wide viewing angle of 140 °.The full range of realistic animation shows the perfect picture presented in front of each audience.
3.Cabinet on both sides of the handle design, easier screen body assembly;
4.ynchronization through the screen body color and brightness adjustment, screen body presents a delicate and vivid color performance;
5.Compatible with a variety of signal source input, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.;
6.Flight case professional packaging protection, of the screen body control equipment has played a good protection;
7.Easy Install screen body specifications designed the cabinet total weight of 7.4kg;
8.The cabinet light bar design, demolition, installation jobs can be convenient.
