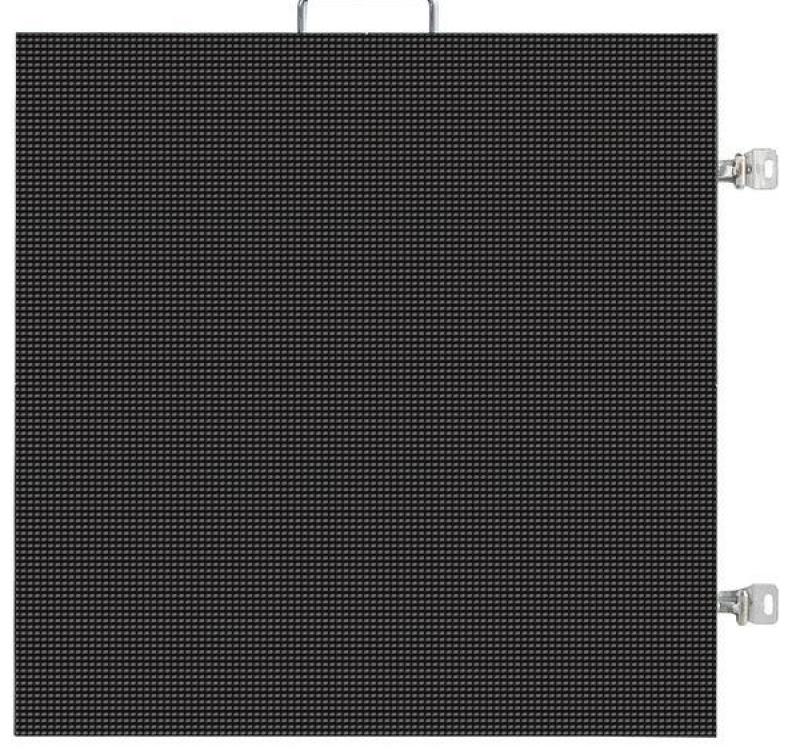

Crystal 6 is designed for research and development stage rental and booth rental application spaces led display. Adopt synchronization control system processing, acceptable DVI, VGA, HDMI, S-video, composite, YUV input signal, free to play video, graphics and images by real-time, synchronous, clear information dissemination player kinds of information, and can display two-dimensional, two-dimensional animation, video, TV, VCD programs and live.
As a new lease display, light, thin, quick installation of its most important features .Cabinet of light, thin, quick installation, dismantling and transportation, leasing application spaces suitable for large area.

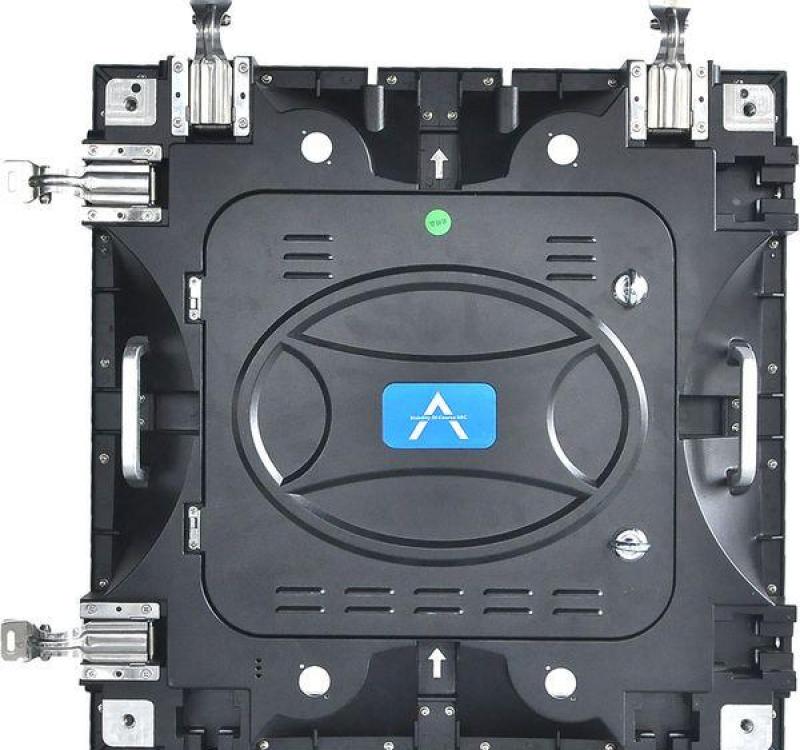

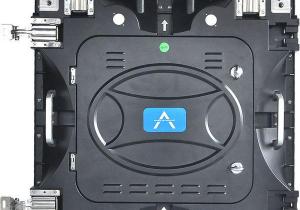

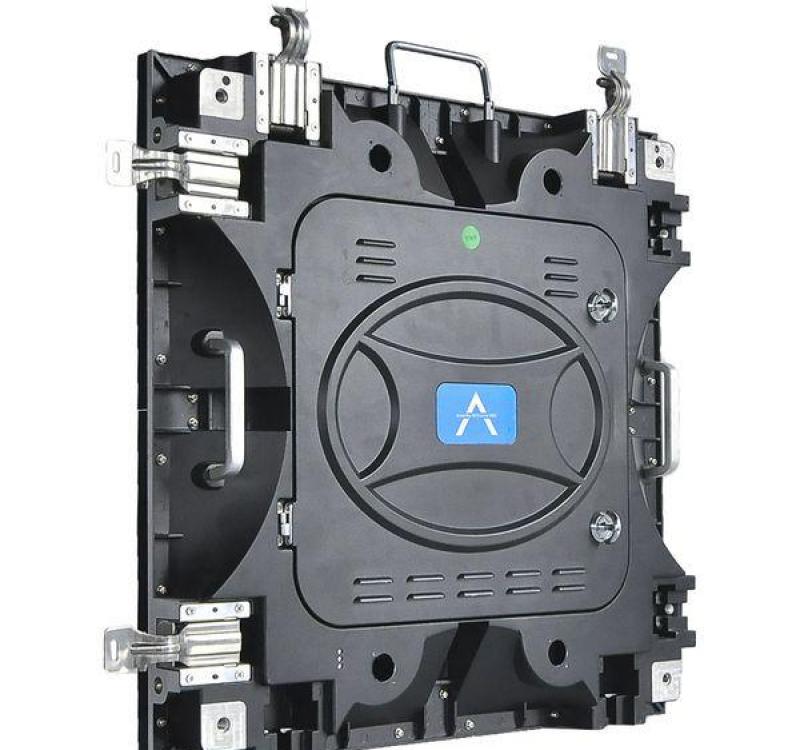

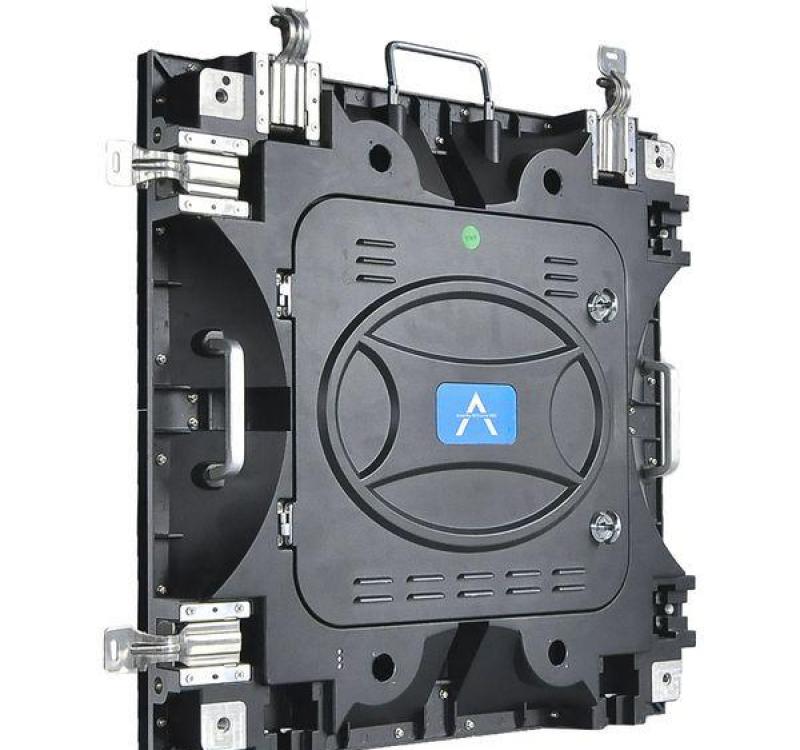

Crystal 6 cabinet main features:

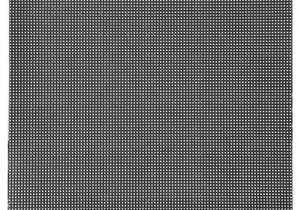

1.SMD 3 in 1 technology, the LED display to use with ultra-wide viewing angle and better surface flatness.
2.The entire display flatness error <0.2mm, can effectively eliminate mosaic phenomenon.
3.Synchronous adjustment of the color and brightness of the display body, so that the display body presents a delicate and vivid color performance.
4.High contrast, high refresh rate, making the LED display when the image is rendered without any delay, smear phenomenon.
5.Compatible with a variety of source inputs, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc..
6.Flight case professional packaging protection, control equipment to lease to play a good protection.

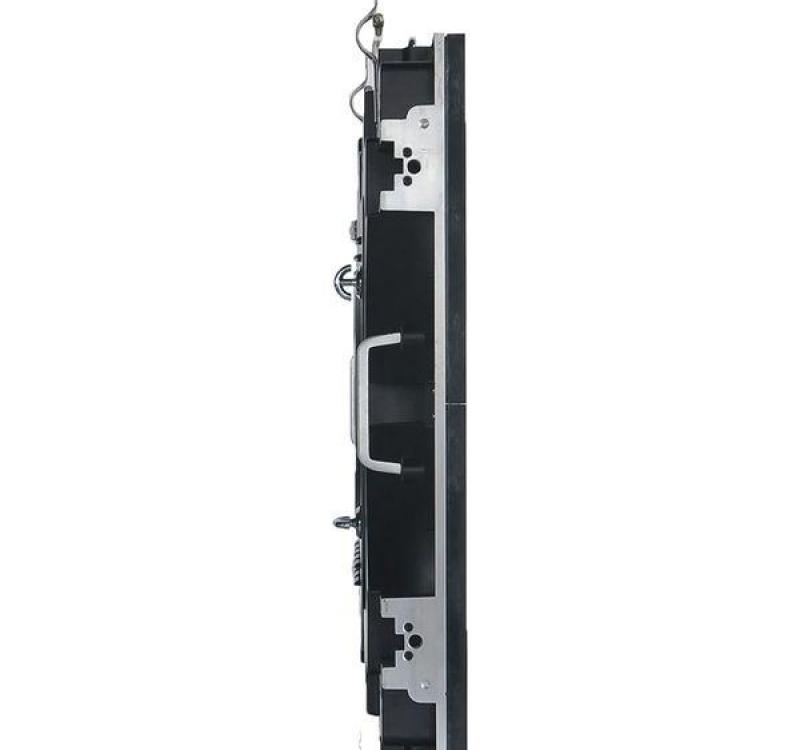

7.Light , ultra-thin Display cabinet total weight only 12KG.
8.Cabinet design use mounted on the ceiling structure, make the assembly process more cross-border.
9.Cabinet with side lock design, convenient for demolition, installation operations.
|
Technical Specification Requirements |
|
|
Type |
Technical requirements |
|
Best view distance(m) |
≥18m |
|
Pixel pitch(m) |
6mm |
|
Pixel resolution(Dots/㎡) |
27777Dots/㎡ |
|
Pixel color composition |
SMD3535 3in1 |
|
Cabinet size |
576*576*79mm |
|
Cabinet weight |
12KG |
|
Scan method（S） |
1/8S |
|
Brightness（cd/㎡） |
≥1600cd/m2 adjustable by software |
|
Refresh frequency(Hz) |
≥1000Hz adjustable by software |
|
MTBF（H） |
>10000H |
|
Max. power consumption（W/㎡） |
1000W/ m2 |
|
Ave. Power consumption（W/㎡） |
690W/ m2 |
|
View angle |
120°horizontally, 120°vertically |
|
Grey level/Color |
16.7Mcolors（Synchronized） |
|
Color temperature |
R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement. |
|
IPlevel |
IP43 |
|
Defects rate |
＜1/10000Dots |
|
Life span（H） |
＞100000H |
|
Operation voltage |
AC220V±10％/AC110V±10％（Power can’t be converted directly） |
|
Operating temperature |
-20℃～+50℃ |
|
Operating humidity |
10%RH~90%RH |
|
Storage temperature |
-20℃～+70℃ |
|
System Operating Platform |
WIN 98/ 2000/ XP |
|
PC display mode |
1280*1024 |
|
Control PC |
With DVI Graphic card ( brand PC recommended) |
|
Video signal |
RF、S-Video、RGB、RGBHV、YUV、YC etc |
|
Effective control distance without repeater |
Unshielded Twisted-pair LAN cable transmission within 100m |
|
Multi-mode optical fiber≦500m,mono-mode optical fiber≦20km. |
|
