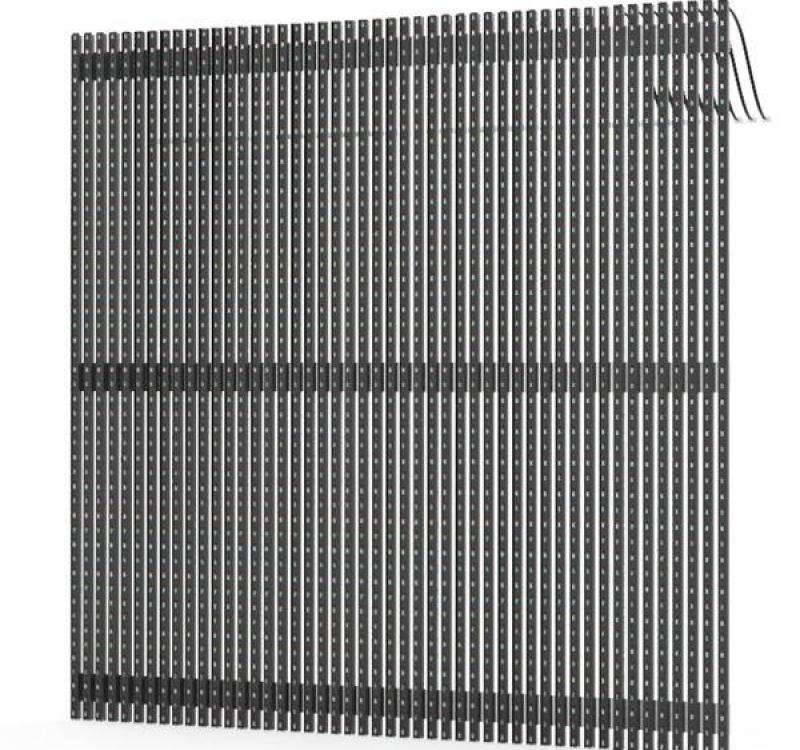

Skylight 25 (Curve) series is LED display application in indoor and outdoor stage set and decoration. It is used R & D Synchronization control system processing, acceptable DVI, VGA, HDMI, S-video, composite, YUV input signal, free to play video, graphics, images. In real-time, synchronous, clear information dissemination player kinds of information, and can display 2D and 3D animation, video, TV, VCD programs and live.
This innovative product is used for the large area display of high building , enhance the company's ability and the image of City. Light bar structure design greatly reduces air resistance, simple structure, ultra-light, ultra-thin, extremely decline the sustain weight of the building. Applied to a large area of indoor and outdoor stage set and decorative.
Skylight 25(Curve) series cabinet main features are as follows:
1.Used DIP technology, make the led display have better waterproof and dampproof effect when it working.
2.High quality LED display, super wide view angle 120°，All position real video display,keep the perfect and clear picture appeal to each audience.
3.Synchronization through the screen body color and brightness adjustment, screen body presents a delicate and vivid color performance.
4.High contrast, high refresh rate, making the LE display render the image without any delay, smear phenomenon.
5.Compatible with a variety of signal source input, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc..
6.Flight case professional packaging protection, of the screen body control equipment has played a good protection.
7.Easy Install screen body specifications designed the cabinet total weight of 30kg.

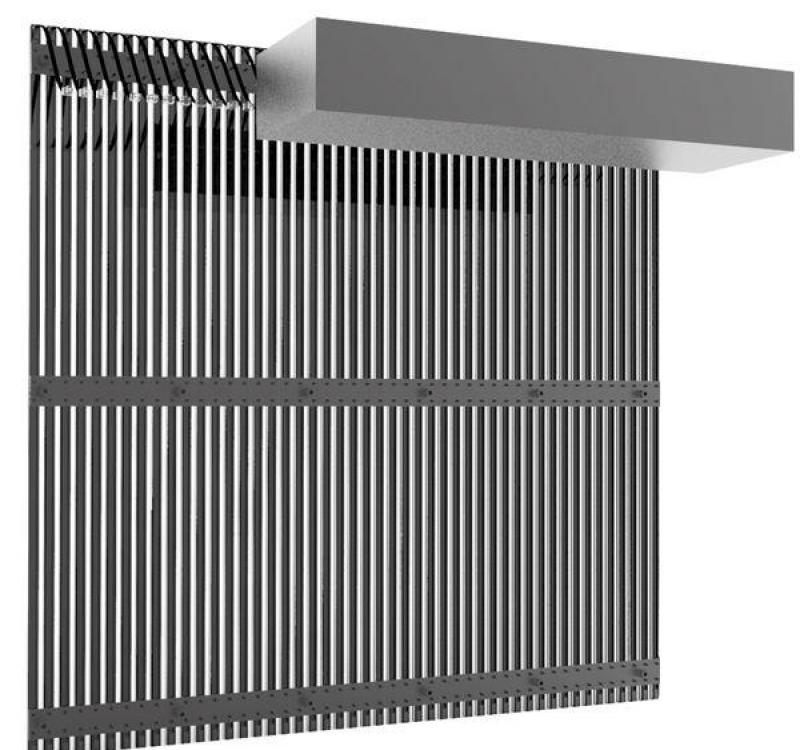

8. The cabinet light bar design, demolition, installation jobs can be convenient.
|
Technical Specification Requirements |
|
|
Type |
Technical requirements |
|
Best view distance(m) |
≥75m |
|
Pixel pitch(m) |
25mm |
|
Pixel resolution(Dots/㎡) |
1600Dots/㎡ |
|
Pixel color composition |
DIP346 |
|
Cabinet size |
1200*1200mm |
|
Cabinet weight |
30KG |
|
Scan method（S） |
Static scan |
|
Brightness（cd/㎡） |
≥5000cd/m2adjustable by software |
|
Refresh frequency(Hz) |
≥600Hzadjustable by software |
|
MTBF（H） |
>10000H |
|
Max. power consumption（W/㎡） |
480W/ m2 |
|
Ave. Power consumption（W/㎡） |
200W/ m2 |
|
View angle |
120°horizontally, 120°vertically, |
|
Grey level/Color |
16.7Mcolors（Synchronized） |
|
Color temperature |
R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement. |
|
IPlevel |
IP65 |
|
Defects rate |
＜1/10000Dots |
|
Life span（H） |
＞100000H |
|
Operation voltage |
AC220V±10％/AC110V±10％（Power can’t be converted directly） |
|
Operating temperature |
-20℃～+70℃ |
|
View angle |
120°horizontally, 120°vertically, |
|
Grey level/Color |
16.7Mcolors（Synchronized） |
|
System Operating Platform |
WIN 98/ 2000/ XP |
|
PC display mode |
1280*1024 |
|
Control PC |
With DVI Graphic card ( brand PC recommended) |
|
Video signal |
RF/S-Video/RGB/RGBHV/YUV/YC/etc |
|
Effective control distance without repeater |
Unshielded Twisted-pair LAN cable transmission within 100m |
|
Multi-mode optical fiber≦500m,mono-mode optical fiber≦20km. |
|
|
