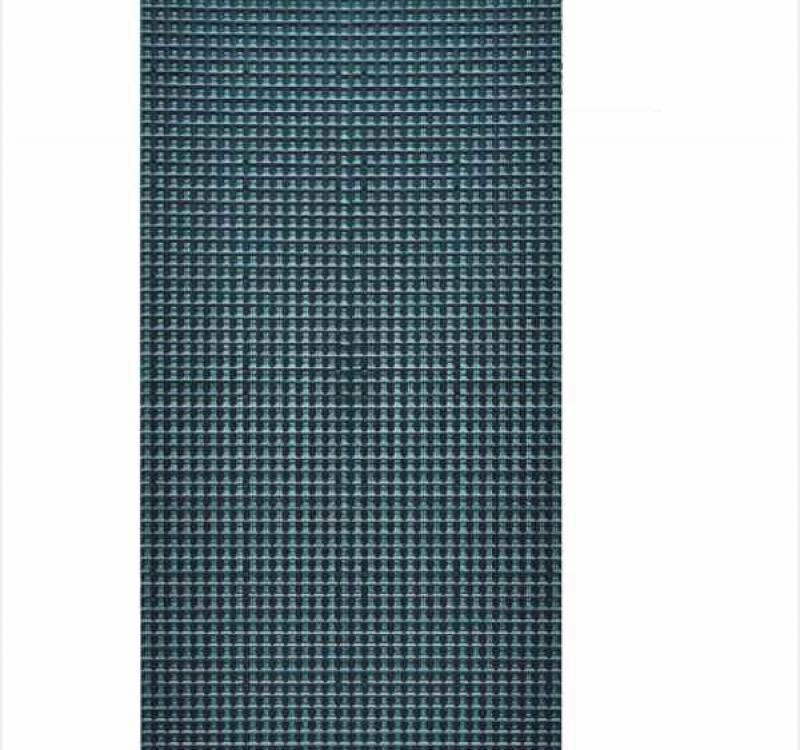

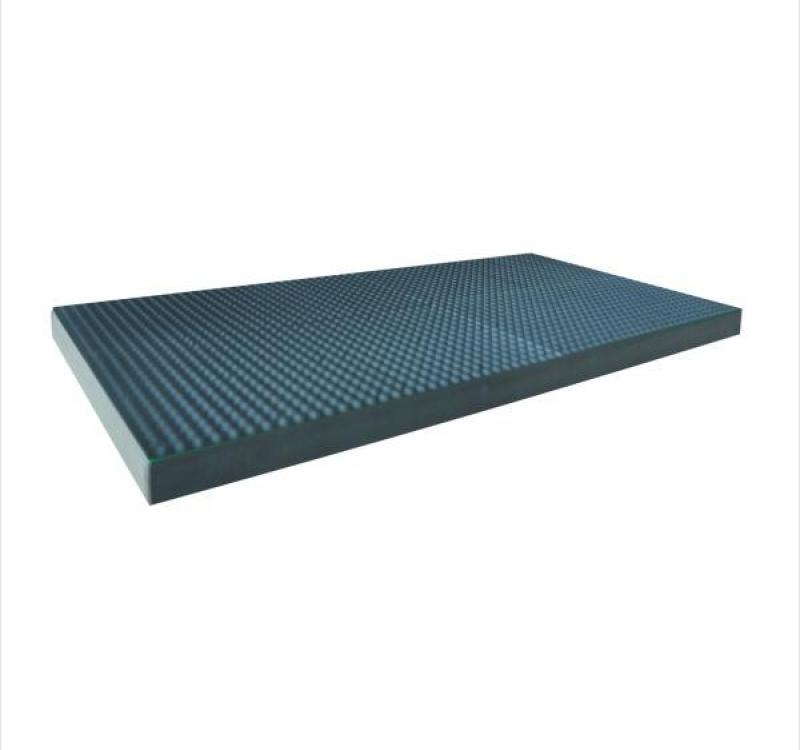

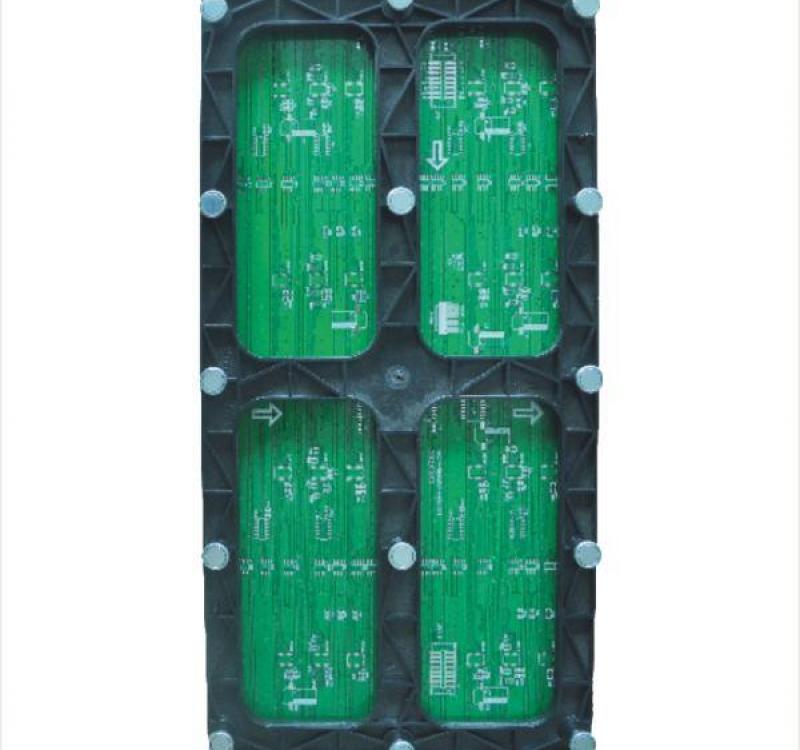

Name : Magnetic column bracket 6
Best view distance : ≥18m
Model : SBC-S-J-P6
Mark : SBC
Origin : Shenzhen
Lead Time : 25days
Warranty : one year
Certificates : CE,ROHS,FCC
Browse :

Bracket is a specially designed small indoor advertising, publicity application places the applications developed. Adopt synchronization control system processing, acceptable DVI, VGA, HDMI, S-video, composite, YUV input signal, free to play video, graphics, images, programs and Mao, in real-time, synchronous, clear information dissemination player kinds of information, and can display two-dimensional, two-dimensional animation, video, TV, VCD programs and live.
The new LED display, light weight, compact, easy to transport, easy to install, less cost, simple operation, indoor advertising, publicity preferred display
Bracket 6 cabinet main features:
1.SMD 3-in-1 technology, the LED display to use with ultra-wide viewing angle and better surface flatness
2.Synchronous adjustment of the color and brightness of the screen body, so that the screen body presents a delicate and vivid color performance
3.High contrast, high refresh rate, making the LED display when the image is rendered without any delay, smear phenomenon
4.Compatible with a variety of source inputs, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.
5.Wooden case professional packaging protection, control equipment to lease to play a good protection.
6.Light, ultra-thin Screen cabinet total weight only 607G


Bracket 6 LED Display Technical Specification

Product Name:LED Display

Product type:Bracket 6

Manufacturer:Shenzhen SBC Photoelectricity co.,ltd.

Technical Specification Requirements


Technical requirements

Best view distance(m)


Pixel pitch (m)


Pixel resolution(Dots/m2)


Pixel color composition

SMD3528 3-in-1

Cabinet size


Cabinet weight


Scan method(s)


Brightness(cd/m2 )

≥800cd/m2 adjustable by software

Refresh frequency (Hz)

≥800Hz adjustable by software



Max. power consumption(W/m2)

450W/ m2

Ave. Power consumption(W/m2)

180W/ m2

View angle

120 °horizontally, 120°vertically

Grey level/Color

16.7M colors(Synchronized)

Color temperature

R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement.

IP level


Defects rate


Life span(H)


Operation voltage

AC220V±10%/AC110V±10%(Power can¡¯t be converted directly)

Operating temperature


Operating humidity


Storage temperature


System Operating Platform

WIN 98/ 2000/ XP

Control PC

With DVI Graphic card ( brand PC recommended)

Video signal


Effective control distance without repeater

Unshielded Twisted-pair LAN cable transmission within 100m

Multi-mode optical fiber≤500m,mono-mode optical fiber≤20km.
