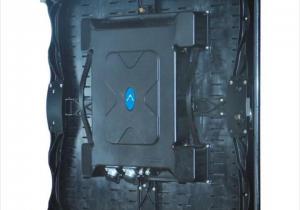

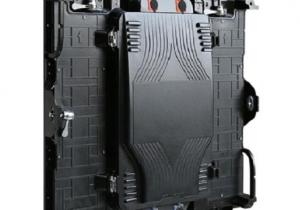

 Diamond 640(P16) is a LED display for outdoor and indoor stage set decoration and R & D Synchronization control system processing, acceptable DVI, VGA, HDMI, S-video, composite, YUV input signal, free to play video, graphics, images. In real-time, synchronous, clear information dissemination player kinds of information, and can display 2D and 3D animation, video, TV, VCD programs and live.

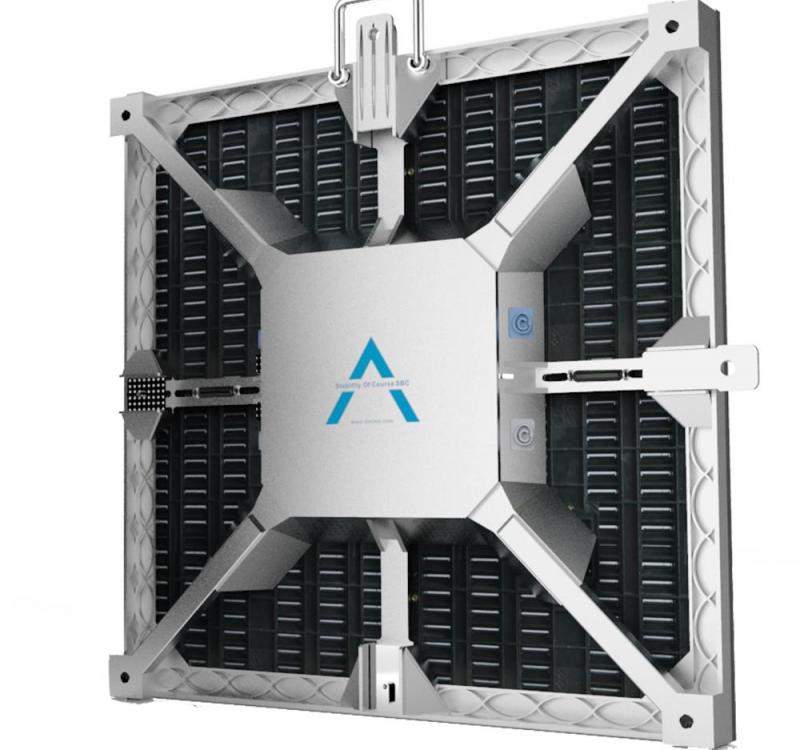

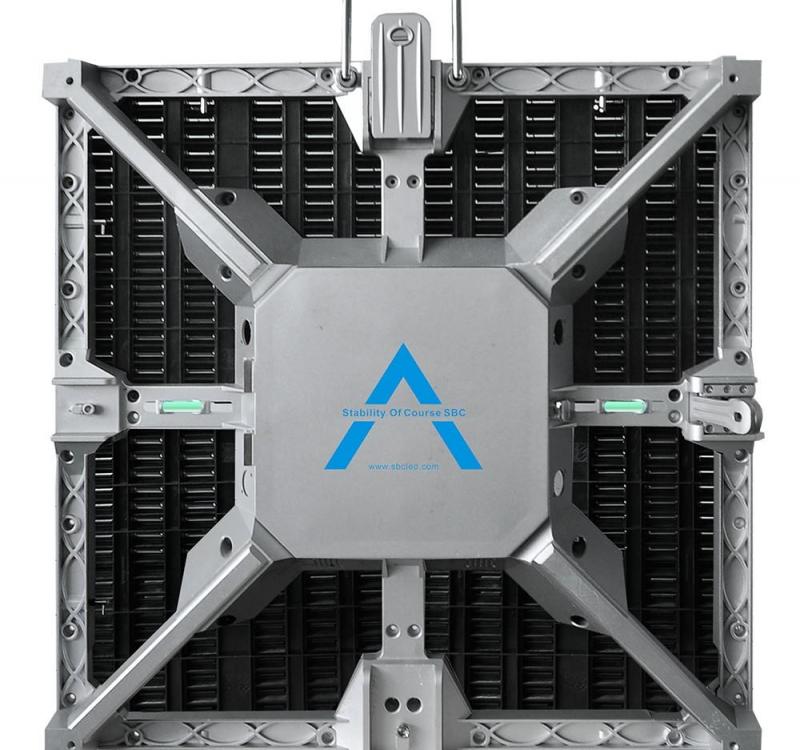

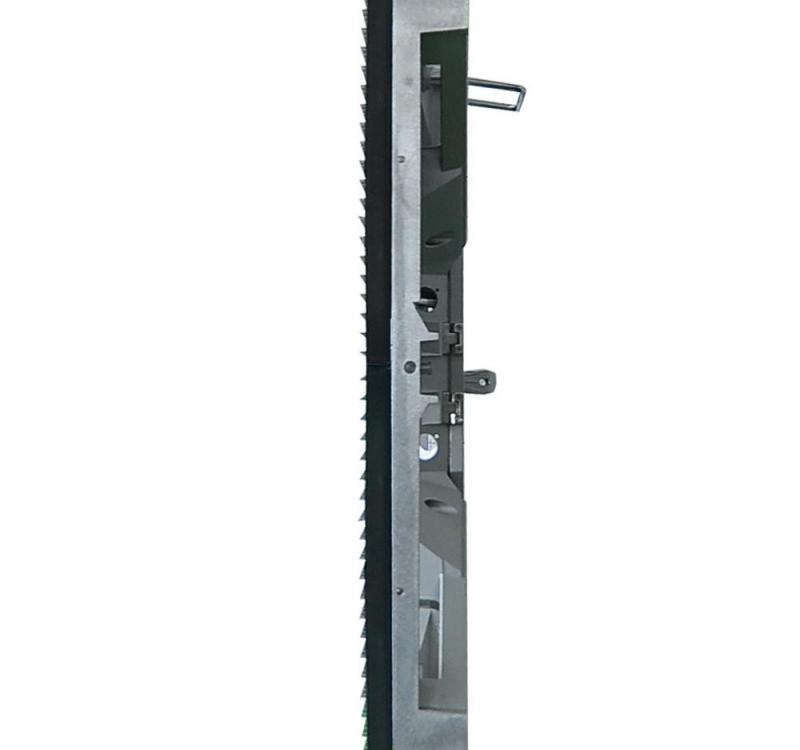

    Light bar structure design greatly reduces air resistance, simple structure, ultra-light, ultra-thin, easy to install, free to split the assembled screen the size of random combinations, refined structure, the box on both sides of the handle design, easier screen body assembly using quick lock design, the box is not only lightweight and high flexibility. Applied to a large area of indoor and outdoor stage set and decorative.

Diamond 640 (P16)series cabinet main features are as follows:

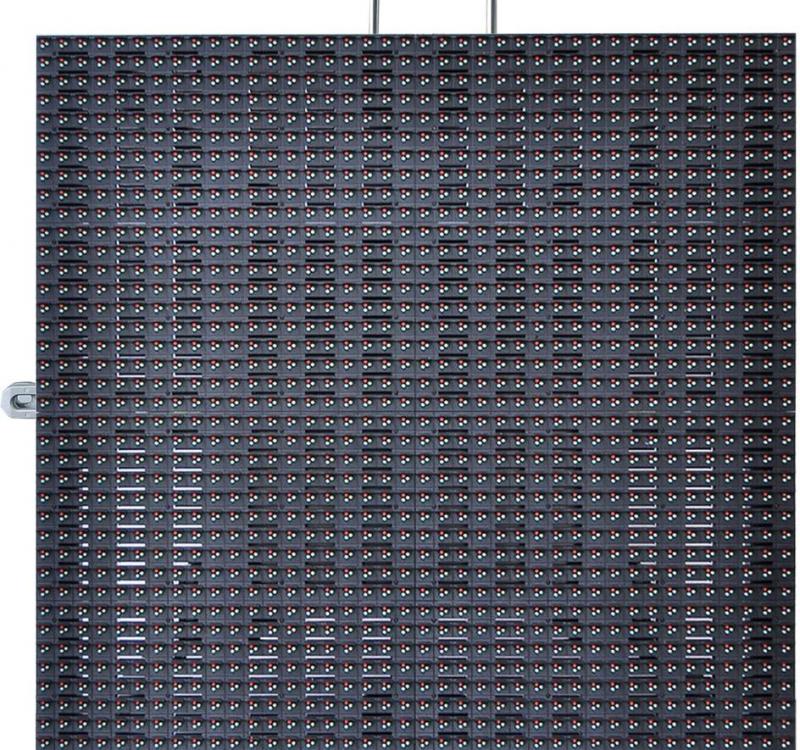

1. SMD 3 in 1 technology, so that in use, LED display with ultra-wide viewing angle and better surface flatness;

2. The entire display flatness error <0.15mm, can effectively eliminate mosaic phenomenon

3. Cabinet on both sides of the handle design, easier screen body assembly;

4. Synchronization through the screen body color and brightness adjustment, screen body presents a delicate and vivid color performance;

5. High contrast, high refresh rate, making the LE display render the image without any delay, smear phenomenon;

6. Compatible with a variety of signal source input, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.;

7. Flight case professional packaging protection, of the screen body control equipment has played a good protection;

8. Easy Install screen body specifications designed the cabinet total weight of 12kg;

9. The cabinet light bar design, demolition, installation jobs can be convenient.

Technical Specification Requirements


Technical requirements

Best view distance(m)


Pixel pitch(m)


Pixel resolution(Dots/㎡)


Pixel resolution(Dots/㎡)

1R1G1B DIP346

Pixel color composition


Cabinet size


Cabinet weight


Scan method(S)

≥7000cd/m2adjustable by software


≥1000Hzadjustable by software



Max. power consumption(W/㎡)

900W/ m2

Ave. Power consumption(W/㎡)

600W/ m2

View angle


Grey level/Color


Color temperature

R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement.



Defects rate


Life span(H)


Operation voltage

AC220V±10%/AC110V±10%(Power can’t be converted directly)

Operating temperature


Operating humidity


Storage temperature


System Operating Platform

WIN 98/ 2000/ XP

PC display mode


Control PC

With DVI Graphic card ( brand PC recommended)

Video signal


Effective control distance without repeater

Unshielded Twisted-pair LAN cable transmission within 100m

Multi-mode optical fiber≦500m,mono-mode optical fiber≦20km.
