Name : Nano King Kong 8
Best view distance : ≥24m
Model : SBC-S-J-P8
Mark : SBC
Origin : Shenzhen
Lead Time : 25days
Warranty : one year
Certificates : CE,ROHS,FCC
Browse :

Nano King Kong 8 is designed for research and development stage rental and booth rental application spaces led display. Adopt synchronization control system processing, acceptable DVI, VGA, HDMI, S-video, composite, YUV input signal, free to play video, graphics and images by real-time, synchronous, clear information dissemination player kinds of information, and can display two-dimensional, two-dimensional animation, video, TV, VCD programs and live.
As a new lease display, light, thin, quick installation of its most important features .Cabinet of light, thin, quick installation, dismantling and transportation, leasing application spaces suitable for large area.

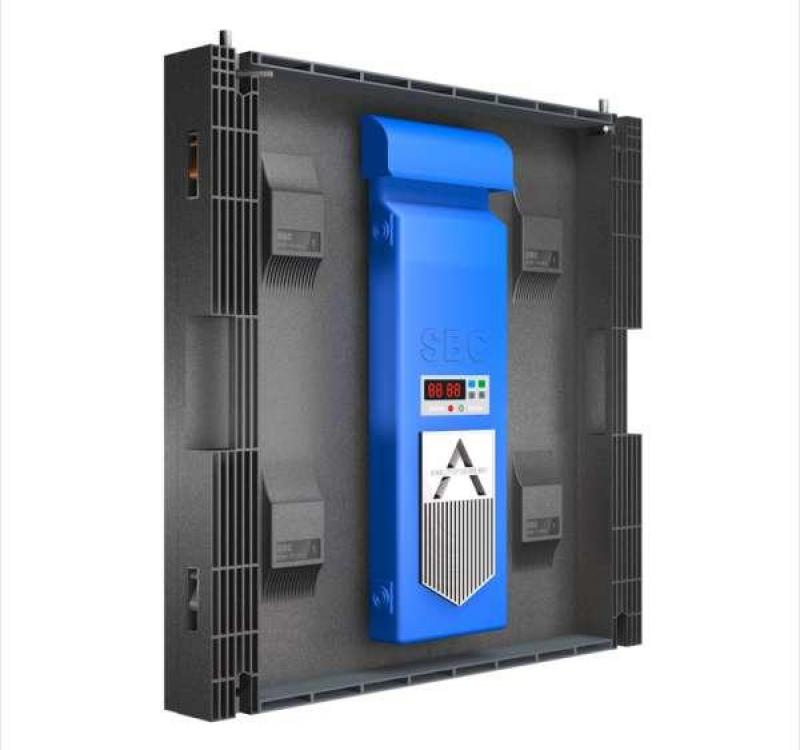

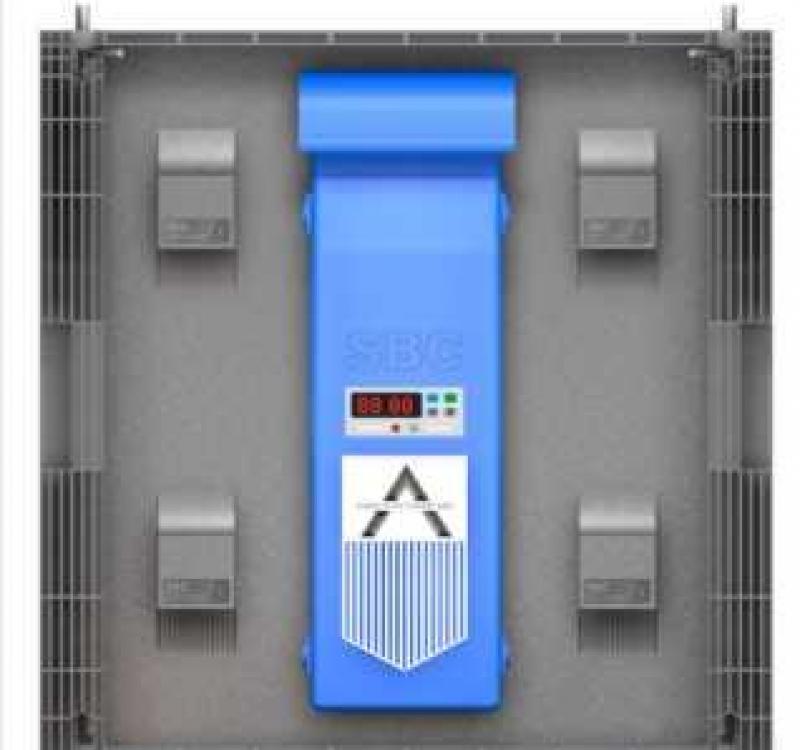

Nano King Kong 8 cabinet main features:
1.SMD 3 in 1 technology, the LED display to use with ultra-wide viewing angle and better surface flatness.
2.The entire display flatness error <0.2mm, can effectively eliminate mosaic phenomenon.
3.Synchronous adjustment of the color and brightness of the display body, so that the display body presents a delicate and vivid color performance.
4.High contrast, high refresh rate, making the LED display when the image is rendered without any delay, smear phenomenon.
5.Compatible with a variety of source inputs, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.
6.Flight case professional packaging protection, control equipment to lease to play a good protection.
7.Light, ultra-thin Display cabinet total weight only 8KG.
8.Cabinet design use mounted on the ceiling structure, make the assembly process more cross-border.
9.Nano materials, double heat cabinet extremely rigid and toughness, crashworthiness.
10.IP65 waterproof rating, a large area for the outdoor stage rental and booth rental applications place.



 Nano Kingkong 8 Led Display Technical Specification

Product Name:LED Display

Product type;Nano Kingkong 8

Manufacturer:Shenzhen SBC Photoelectricity co.,ltd.

Technical Specification Requirements

Type

Technical requirements

Best view distance(m)

≥24m

Pixel pitch (m)

8mm

Pixel resolution(Dots/m2)

15625Dots/m2

Pixel color composition

SMD3535¡¡3-in-1

Cabinet size

576*576*50mm

Cabinet weight

8KG

Scan method(s)

1/4S

Brightness(cd/m2 )

≥4500cd/m2 adjustable by software

Refresh frequency (Hz)

≥1000Hz adjustable by software

MTBF(H)

>10000H

Max. power consumption(W/m2)

1000W/ m2

Ave. Power consumption(W/m2)

400W/ m2

View angle

120 °horizontally, 120°vertically,

Grey level/Color

16.7M colors(Synchronized)

Color temperature

R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement.

IP level

IP65

Defects rate

<1/10000Dots

Life span(H)

>100000H

Operation voltage

AC220V±10%/AC110V±10%(Power can¡¯t be converted directly)

Operating temperature

-10℃~+50℃

Operating humidity

-10%RH~+90%RH

Storage temperature

-20℃~+70℃

System Operating Platform

WIN 98/ 2000/ XP

PC display mode

1280*1024

Control PC

With DVI Graphic card ( brand PC recommended)

Video signal

RF/S-Video/RGB/RGBHV/YUV/YC/etc

Effective control distance without repeater

Unshielded Twisted-pair LAN cable transmission within 100m

Multi-mode optical fiber≤500m,mono-mode optical fiber≤ 20km.
