Name : Crystal 4
Best view distance : ≥12m
Model : SBC-S-J-P4
Mark : SBC
Origin : shenzhen
Lead Time : 25days
Warranty : one years
Certificates : CE,ROHS,FCC
Browse :

Crystal 4 is designed for research and development stage rental and booth rental application spaces led display. Adopt synchronization control system processing, acceptable DVI, VGA, HDMI, S-video, composite, YUV input signal, free to play video, graphics and images by real-time, synchronous, clear information dissemination player kinds of information, and can display two-dimensional, two-dimensional animation, video, TV, VCD programs and live.
As a new lease display, light, thin, quick installation of its most important features .Cabinet of light, thin, quick installation, dismantling and transportation, leasing application spaces suitable for large area.

Crystal 4 cabinet main features:

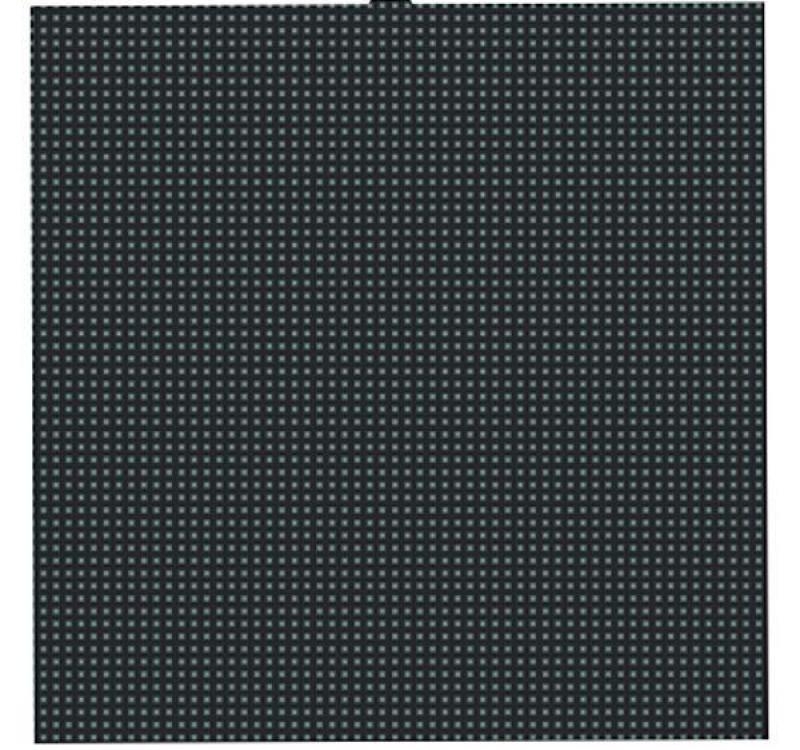

1.SMD 3 in 1 technology, the LED display to use with ultra-wide viewing angle and better surface flatness
2.The entire display flatness error <0.2mm, can effectively eliminate mosaic phenomenon
3.Synchronous adjustment of the color and brightness of the display body, so that the display body presents a delicate and vivid color performance
4.High contrast, high refresh rate, making the led display when the image is rendered without any delay, smear phenomenon
5.Compatible with a variety of source inputs, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.
6.Flight case professional packaging protection, control equipment to lease to play a good protection.

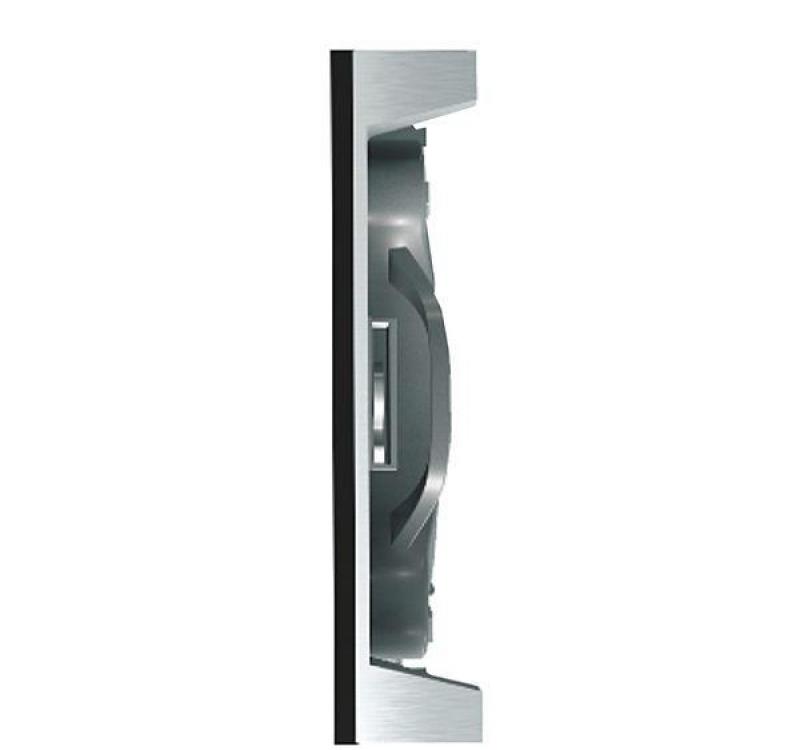

7.Light , ultra-thin Display cabinet total weight only 8.8KG
8.Barco patented lock design, convenient for demolition, installation operations

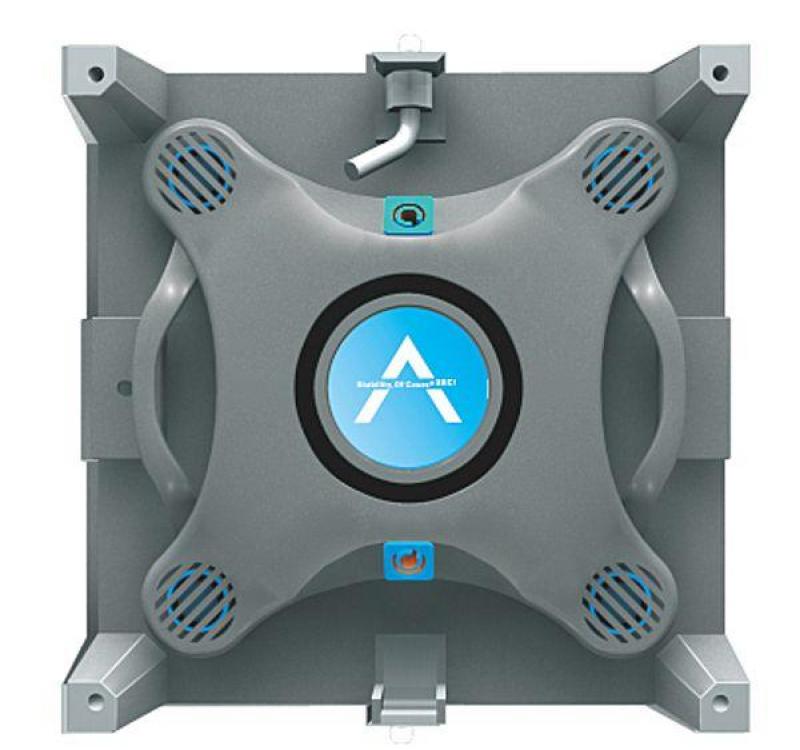

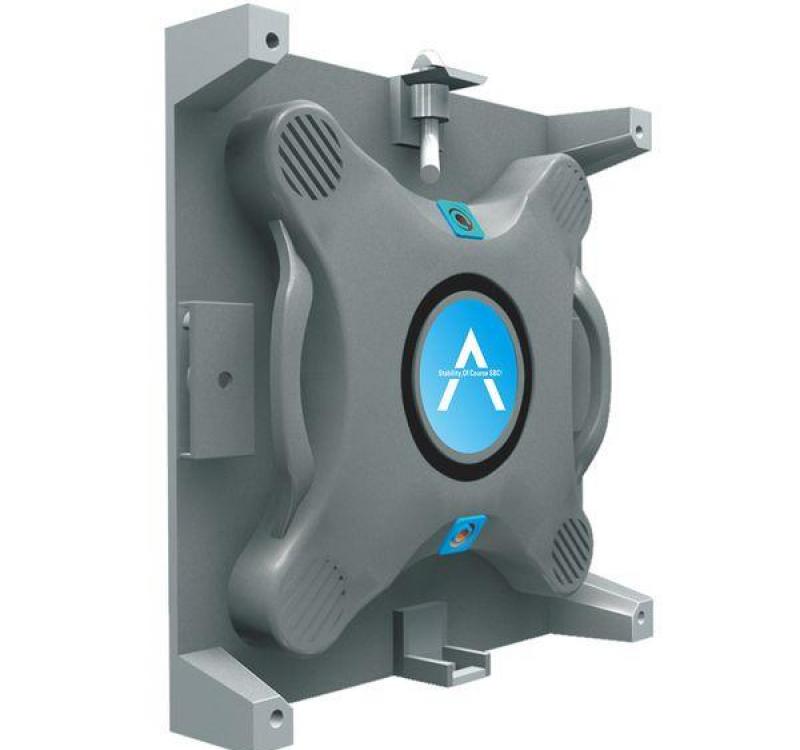

9.Die-cast aluminum cabinet, TV back cover thermal design, heat dissipation without fan Two, Module shape structure



Cystal 4 Led Display Technical Specification

Product Name: LED Display

Product type: Cystal 4

Manufacturer:Shenzhen SBC Photoelectricity co.,ltd.

Technical Specification Requirements

Type

Technical requirements

Best view distance(m)

≥12m

Pixel pitch (m)

4mm

Pixel resolution(Dots/m2)

625000 Dots/m2

Pixel color composition

SMD2121¡¡3-in-1

Cabinet size

480*480*80mm

Cabinet weight

8.8KG

Scan method(s)

1/15S

Brightness(cd/m2 )

≥1500cd/m2 adjustable by software

Refresh frequency (Hz)

≥800Hz adjustable by software

MTBF£¨H£©

>10000H

Max. power consumption(W/m2)

1000W/ m2

Ave. Power consumption(W/m2)

400W/ m2

View angle

120 °horizontally, 120°vertically,

Grey level/Color

16.7M colors(Synchronized)

Color temperature

R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement.

IP level

IP43

Defects rate

<1/10000Dots

Life span(H)

>100000H

Operation voltage

AC220V±10%/AC110V±10%(Power can¡¯t be converted directly)

Operating temperature

-10℃~+50℃

Operating humidity

10%RH~90%RH

Storage temperature

-20℃~+70℃

System Operating Platform

WIN 98/ 2000/ XP

PC display mode

1280*1024

Control PC

With DVI Graphic card ( brand PC recommended)

Video signal

RF/S-Video/RGB/RGBHV/YUV/YC/etc

Effective control distance without repeater

Unshielded Twisted-pair LAN cable transmission within 100m

Multi-mode optical fiber¨Q500m,mono-mode optical fiber¨Q20km.
