Paraméterek:

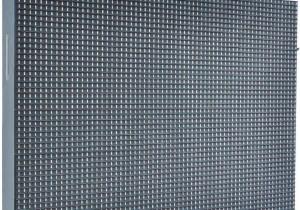

Pixel pitch                                 37.5mm

Size of module                          300mm x 150mm

Pixel density                             711dot / m²

Brightness                                 6000 CD / m²

LED Encapsulation                     DIP

Horizontal view angle                > 140°

Vertical view angle                    > 120°

Life                                             100000 hours

Average power                          300 W / m²

Weight / Module                        customer-designed

Display colors                            4.4 trillion

Refresh rate                               3000Hz / S

Driving mode                             1 / 8  scan

Working temperature                -20°----  +45°C

Size of cabinets                         customer-designed

Input signal                               Data DVI up to UXGA, SDI, HD-SDI, S-video, composite, YUV

Failed LED rate                           <0.0001

Quality certification                  ETL, CE, TUV, FCC class A

Referencia:

Shenzhen, Guangdong branch of China Telecom LED Printing Screen Project


Project Location: Shenzhen, Guangdong branch of China Telecom
Product Specifications: P37.5
Item Size: length 42m * Hight 18m = 756 sqm
Screen Body Quantity: 1 pc
Completion: December 8, 2007
