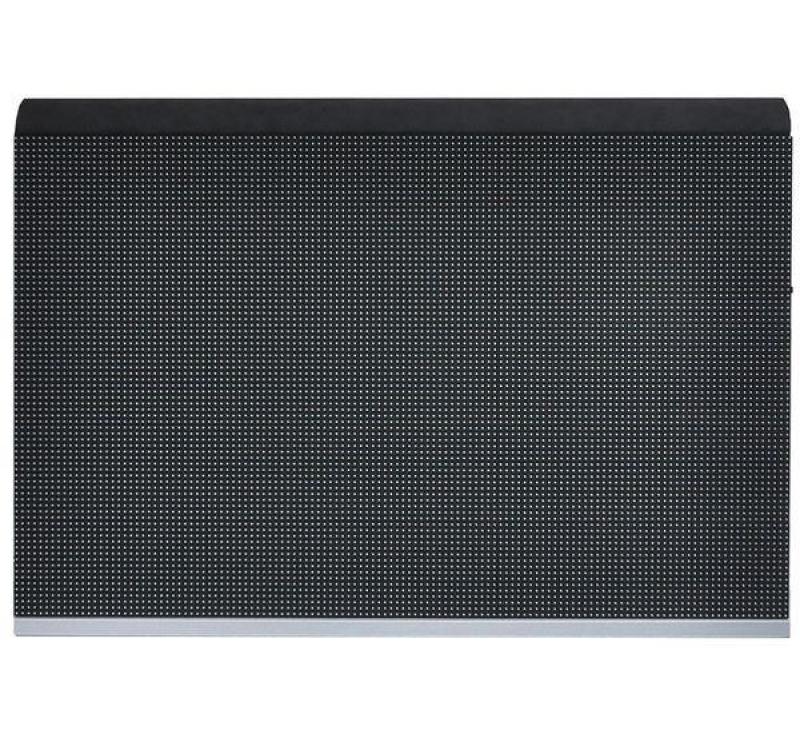

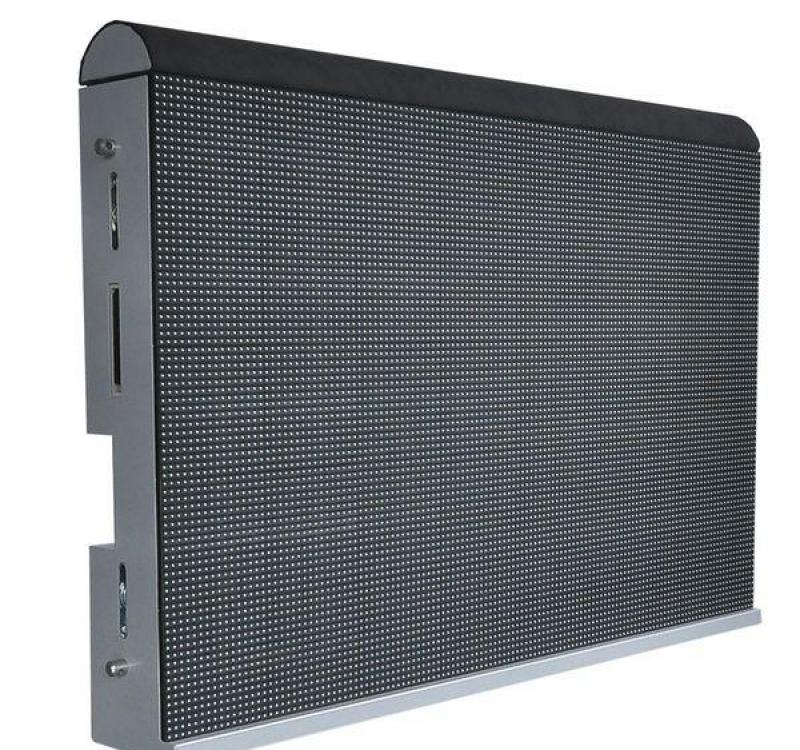

  • Product Name: 4th Generation of Perimeter 10
  • Product No.: 4th Generation of Perimeter P10

4th Generation of Perimeter 10 LED display is customized for application of big stadium. Use synchronous system which can accept signals DVI, VGA,HDMI,S-VIDEO,Complex, YUV etc. It can display programs of video, image, text. Displaying every information by real time, synchronous, clear message and can show two or three dimension animation, video, TV, VCD program and live broadcast. As a new advertising screen, the screen will be designed stably, sturdy, durable, easy for big stadium.

Features of 4th Generation of Perimeter 10

1.Use SMD 3-in-1 technology to make the LED display have super wide view angle and better surface planeness.

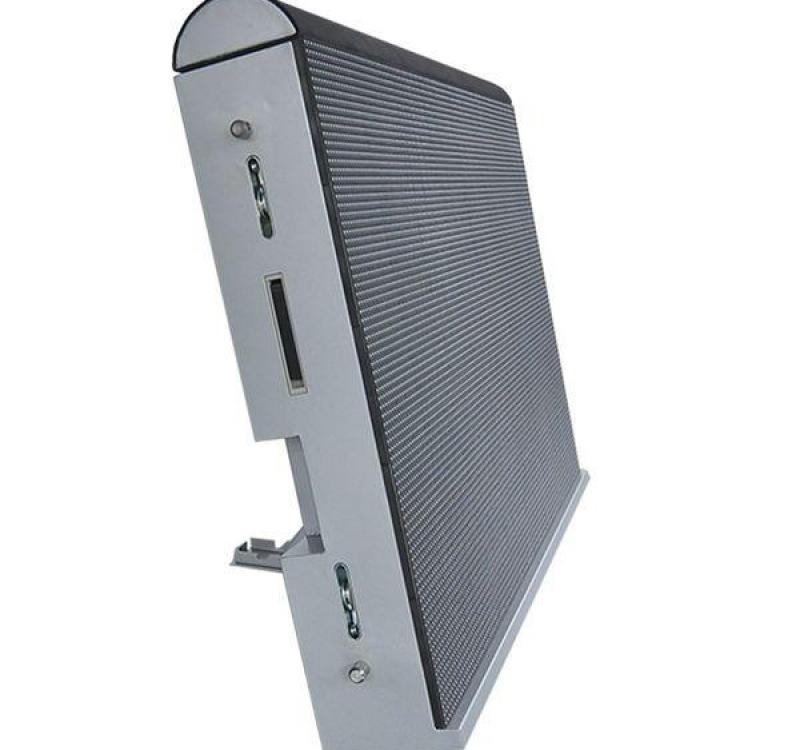

2.Specially design buffer power mask for stadium. Use buffer curve face structure peak to neutralize the hit power from the athlete.

3.Synchronously adjust the brightness and color to make the true and exquisite image.

4.Compatible to many signal sources such as AV, S-Video, DVI, VGA, YPbPr, HDMI,SDI,DP etc..

5.Special wooden box package production protect the whole screen system.

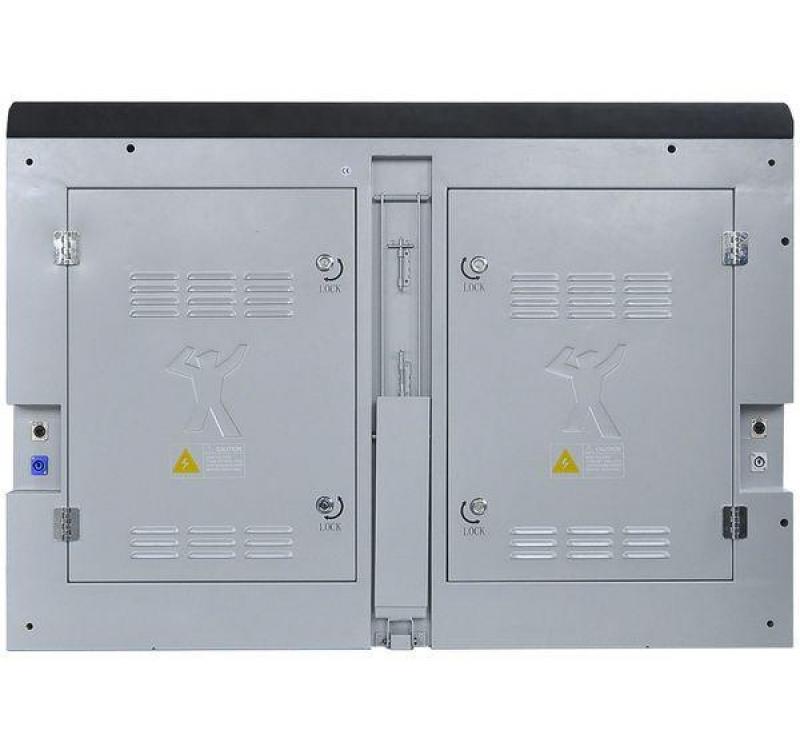

6.Back professional supporters designs make the cabinet adjust from 0 to 30 degrees, each 5 degrees, one grade, free to adjust.

7.Wonderful occasion, slow action playback, close-up view supply perfect view effect.

Technical Specification Requirements

Type

Technical requirements

Best view distance(m)

≥30

Pixel pitch(m)

10mm

Pixel resolution(Dots/㎡)

10000Dots/㎡

Pixel color composition

SMD3528 3-in-1

Cabinet size

1200*800*150mm

Cabinet weight

57KG

Scan method(S)

1/4S

Brightness(cd/㎡)

≥1500cd/m2  adjustable by software

Refresh frequency(Hz)

≥1000Hz adjustable by software

MTBF(H)

>10000H

Max. power consumption(W/㎡)

750W/ m2

Ave. Power consumption(W/㎡)

300W/ m2

View angle

120°horizontally, 120°vertically

Grey level/Color

16.7Mcolors(Synchronized)

Color temperature

R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement.

IPlevel

IP65

Defects rate

<1/10000Dots

Life span(H)

>10000H

Operation voltage

AC220V±10%/AC110V±10%(Power can’t be converted directly)

Operating temperature

-20℃~+60℃

Operating humidity

10%RH~90%RH

Storage temperature

-10℃~+50℃

System Operating Platform

WIN 98/ 2000/ XP

Control PC

With DVI Graphic card ( brand PC recommended)

Video signal

RF、S-Video、RGB、RGBHV、YUV、YC etc

Effective control distance without repeater

Unshielded Twisted-pair LAN cable transmission within 100m

Multi-mode optical fiber≦500m,mono-mode optical fiber≦20km.
