  • Product Name: Crystal 5.21
  • Product No.: Crystal series P5.21MM

Crystal P5.21mm is a LED display for indoor and outdoor stage set decoration and R & D Synchronization control system processing, acceptable DVI, VGA, HDMI, S-video, composite, YUV input signal, free to play video, graphics, images. In real-time, synchronous, clear information dissemination player kinds of information, and can display 2D and 3D animation, video, TV, VCD programs and live.

    As a new rental display, light, thin, fast installation of its most important features. Cabinet light, thin, fast installation, removal and transportation, adapted to large area rental Applications.

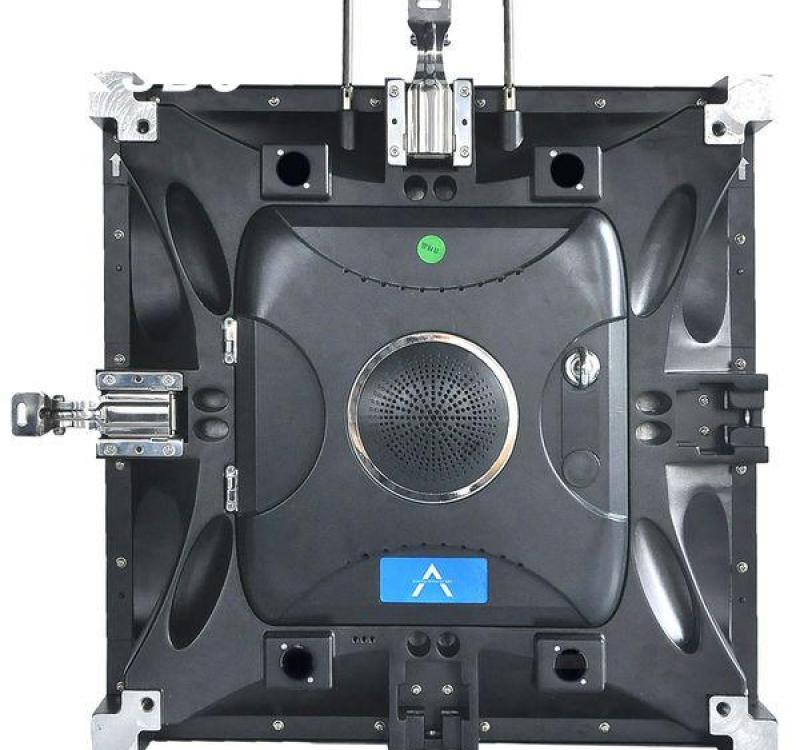

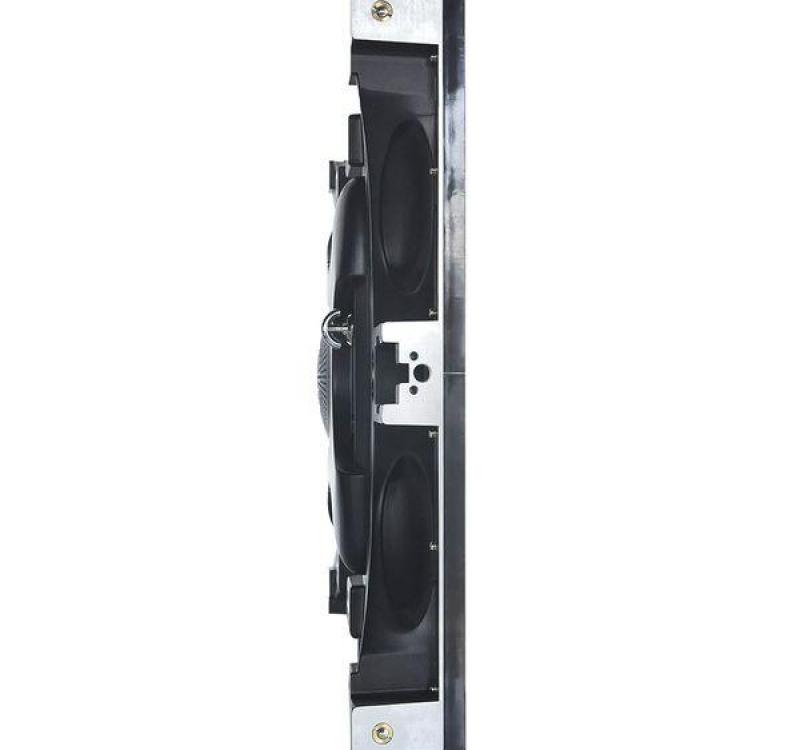

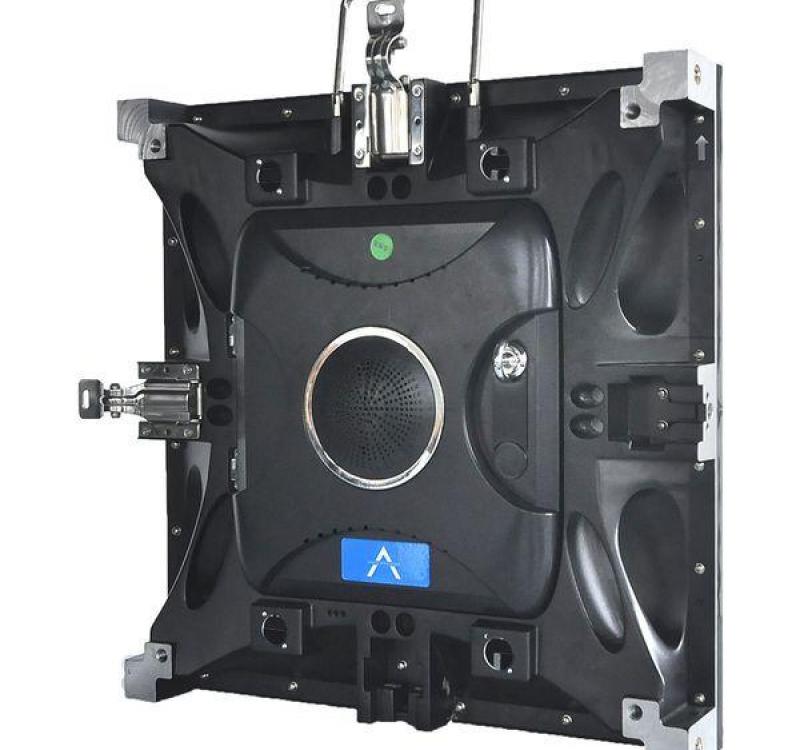

Crystal P5.21mm cabinet main features are as follows:

1.SMD 3 in 1 technology, so that in use, LED display with ultra-wide viewing angle and better surface flatness.

2.The entire display flatness error <0.2mm, can effectively eliminate mosaic phenomenon.

3.Synchronization through the screen body color and brightness adjustment, screen body presents a delicate and vivid color performance.

4.High contrast, high refresh rate, making the LE display render the image without any delay, smear phenomenon.

5.Compatible with a variety of signal source input, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc..

6.Flight case professional packaging protection, of the screen body control equipment has played a good protection.

7.Super light, ultra thin cabinet design, weight only 10kg.

8.Barco patented latch design, convenient for demolition, installation operations.

9.Die-cast aluminum cabinets, TV cooling technology cover, cooling without fan.

Technical Specification Requirements

Type

Technical requirements

Best view distance(m)

≥15m

Pixel pitch(m)

5.21mm

Pixel resolution(Dots/㎡)

36864Dots/㎡

Pixel color composition

SMD3528 3-in-1

Cabinet size

500*500*74mm

Cabinet weight

10KG

Scan method(S)

1/8S

Brightness(cd/㎡)

≥1500cd/m2adjustable by software

Refresh frequency(Hz)

≥800Hzadjustable by software

MTBF(H)

>10000H

Max. power consumption(W/㎡)

750W/ m2

Ave. Power consumption(W/㎡)

500W/ m2

View angle

120°horizontally

Grey level/Color

16.7Mcolors(Synchronized)

Color temperature

R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement.

IPlevel

IP43

Defects rate

<1/10000Dots

Life span(H)

>100000H

Operation voltage

AC220V±10%/AC110V±10%(Power can’t be converted directly)

Operating temperature

-10℃~+50℃

Operating humidity

10%RH~90%RH

Storage temperature

-20℃~+70℃

System Operating Platform

WIN 98/ 2000/ XP

PC display mode

1280*1024

Control PC

With DVI Graphic card ( brand PC recommended)

Video signal

RF、S-Video、RGB、RGBHV、YUV、YCetc

Effective control distance without repeater

Unshielded Twisted-pair LAN cable transmission within 100m

Multi-mode optical fiber≦500m,mono-mode optical fiber≦20km.
