  • Product Name: Skylight 25(Curve)
  • Product No.: Skylight P25MM(Curve)

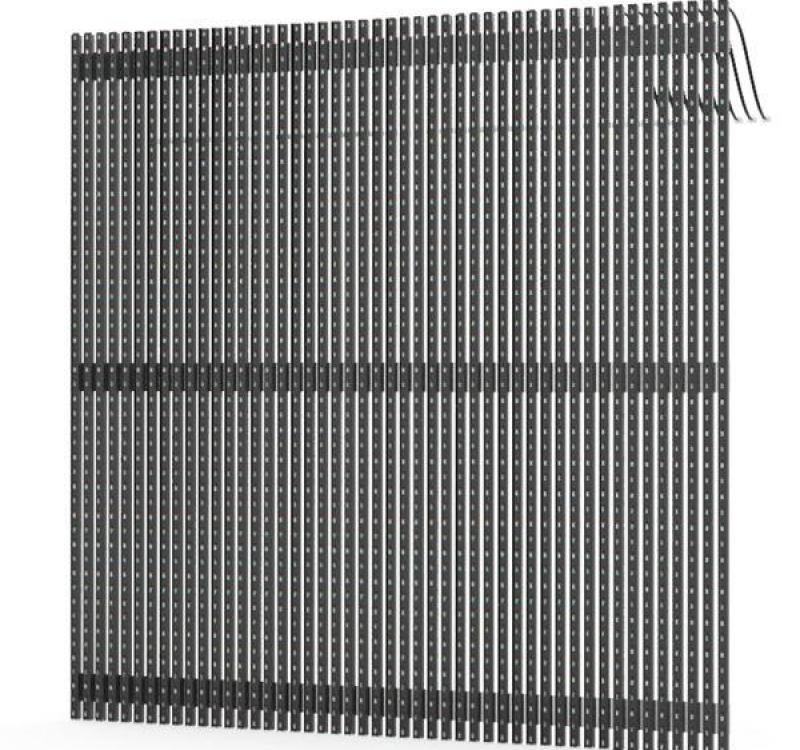

Skylight 25 (Curve) series is LED display application in indoor and outdoor stage set and decoration. It is used R & D Synchronization control system processing, acceptable DVI, VGA, HDMI, S-video, composite, YUV input signal, free to play video, graphics, images. In real-time, synchronous, clear information dissemination player kinds of information, and can display 2D and 3D animation, video, TV, VCD programs and live.

    This innovative product is used for the large area display of high building , enhance the company's ability and the image of City. Light bar structure design greatly reduces air resistance, simple structure, ultra-light, ultra-thin, extremely decline the sustain weight of the building. Applied to a large area of indoor and outdoor stage set and decorative.

Skylight 25(Curve) series cabinet main features are as follows:

1.Used DIP technology, make the led display have better waterproof and dampproof effect when it working.

2.High quality LED display, super wide view angle 120°,All position real video display,keep the perfect and clear picture appeal to each audience.

3.Synchronization through the screen body color and brightness adjustment, screen body presents a delicate and vivid color performance.

4.High contrast, high refresh rate, making the LE display render the image without any delay, smear phenomenon.

5.Compatible with a variety of signal source input, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc..

6.Flight case professional packaging protection, of the screen body control equipment has played a good protection.

7.Easy Install screen body specifications designed the cabinet total weight of 30kg.

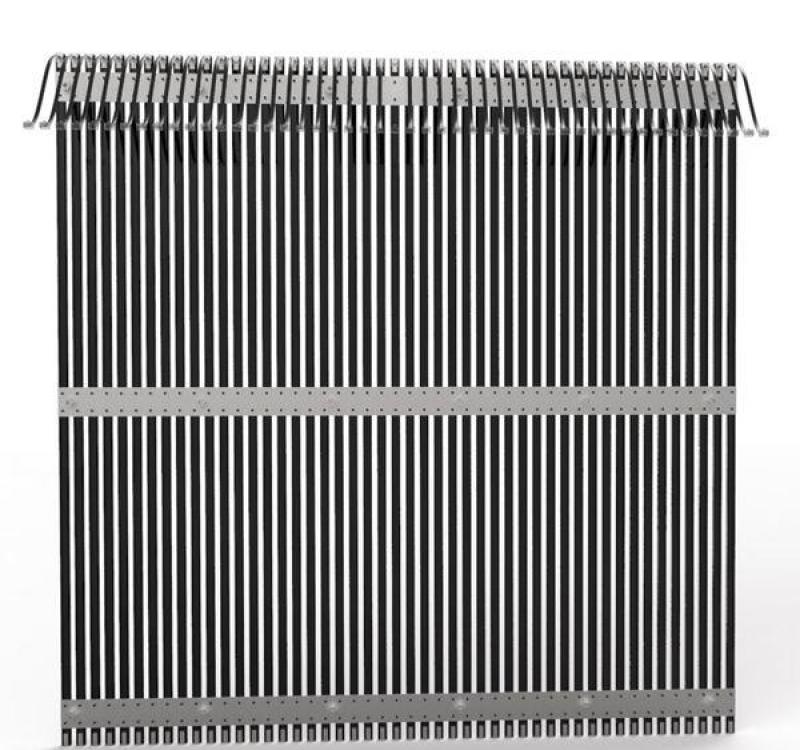

8. The cabinet light bar design, demolition, installation jobs can be convenient.

Technical Specification Requirements

Type

Technical requirements

Best view distance(m)

≥75m

Pixel pitch(m)

25mm

Pixel resolution(Dots/㎡)

1600Dots/㎡

Pixel color composition

DIP346

Cabinet size

1200*1200mm

Cabinet weight

30KG

Scan method(S)

Static scan

Brightness(cd/㎡)

≥5000cd/m2adjustable by software

Refresh frequency(Hz)

≥600Hzadjustable by software

MTBF(H)

>10000H

Max. power consumption(W/㎡)

480W/ m2

Ave. Power consumption(W/㎡)

200W/ m2

View angle

120°horizontally, 120°vertically,

Grey level/Color

16.7Mcolors(Synchronized)

Color temperature

R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement.

IPlevel

IP65

Defects rate

<1/10000Dots

Life span(H)

>100000H

Operation voltage

AC220V±10%/AC110V±10%(Power can’t be converted directly)

Operating temperature

-20℃~+70℃

View angle

120°horizontally, 120°vertically,

Grey level/Color

16.7Mcolors(Synchronized)

System Operating Platform

WIN 98/ 2000/ XP

PC display mode

1280*1024

Control PC

With DVI Graphic card ( brand PC recommended)

Video signal

RF/S-Video/RGB/RGBHV/YUV/YC/etc

Effective control distance without repeater

Unshielded Twisted-pair LAN cable transmission within 100m

Multi-mode optical fiber≦500m,mono-mode optical fiber≦20km.
